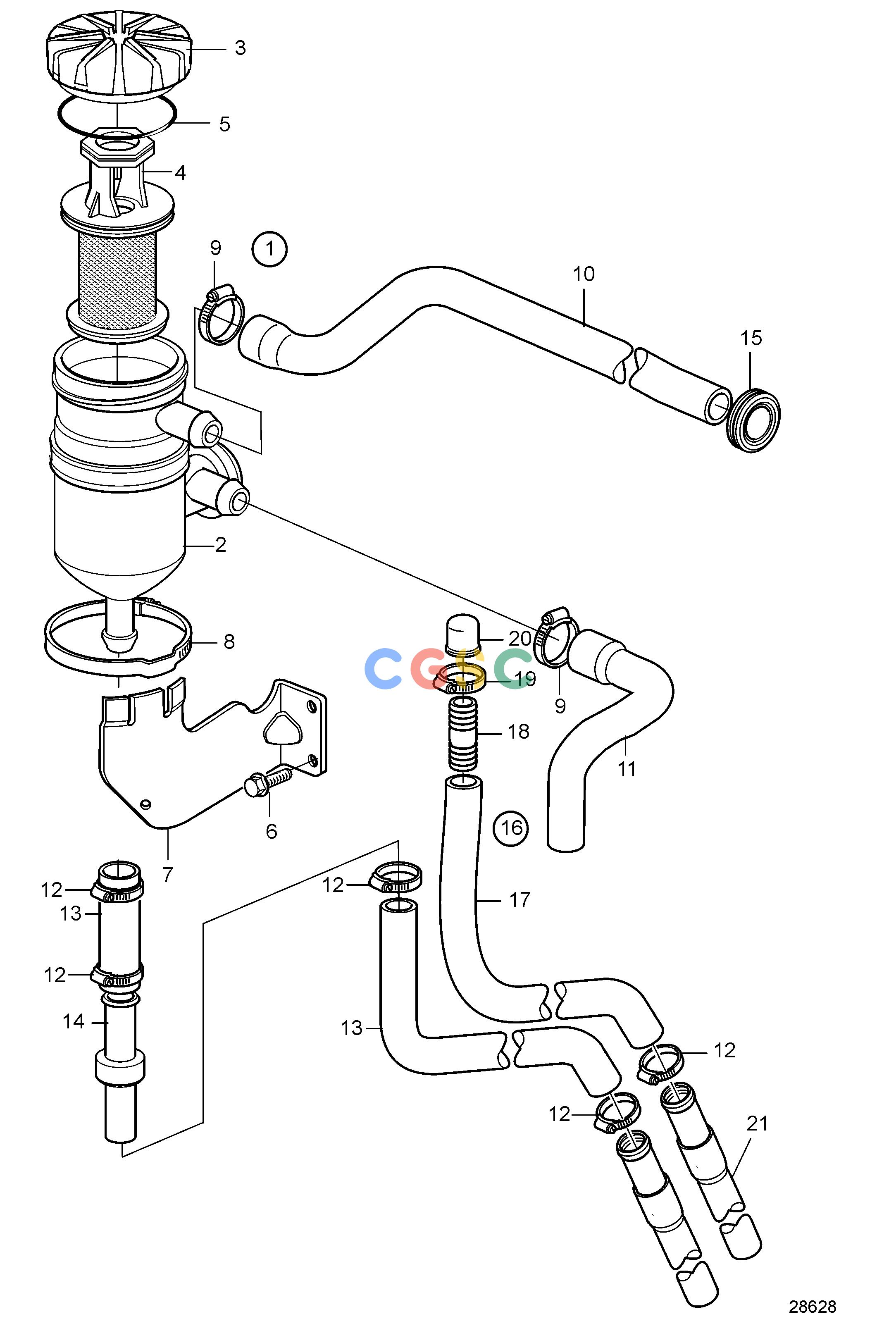

沃尔沃零件查询D6-280A-A; D6-280A-B; D6-280A-C; D6-280A-D; D6-280A-E; D6-280I-A; D6-280I-B; D6-280I-C; D6-280I-D; D6-280I-E; D6-310I-A; D6-310A-A; D6-310A-Intake and Exhaust SystemCrankcase VentilationEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
943 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3584144
|
[1] |
Filter
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
3584145
|
[1] |
Insert
|
|
| 5. |
3584461
|
[1] |
O-ring
|
|
| 6. |
21223140
|
[1] |
Bracket
|
|
| 7. |
946440
|
[2] |
Flange screw
|
|
| 8. |
3586117
|
[1] |
Hose clamp
|
|
| 9. |
994559
|
[2] |
Hose clamp
|
|
| 10. |
3583964
|
[1] |
Hose
|
SN-2006033702
|
| 10. |
3595027
|
[1] |
Hose
|
SN2006033703-
|
| 11. |
3584139
|
[1] |
Hose
|
|
| 12. |
961666
|
[4] |
Hose clamp
|
|
| 13. |
3849236
|
[1] |
Hose assembly
|
Order also non retur valve and hose clamp., (3885542)
|
| 14. |
3887102
|
[1] |
Non-return valve
|
|
| 15. |
984951
|
[1] |
Grommet
|
|
| 16. |
3849236
|
[1] |
Hose assembly
|
|
| 17. |
3885542
|
[1] |
Hose
|
|
| 18. |
991127
|
[1] |
Hose nipple
|
|
| 19. |
978174
|
[1] |
Hose clamp
|
|
| 20. |
842235
|
[1] |
Cap
|
|
| 21. |
3583465
|
[2] |
Drain pipe
|
|
