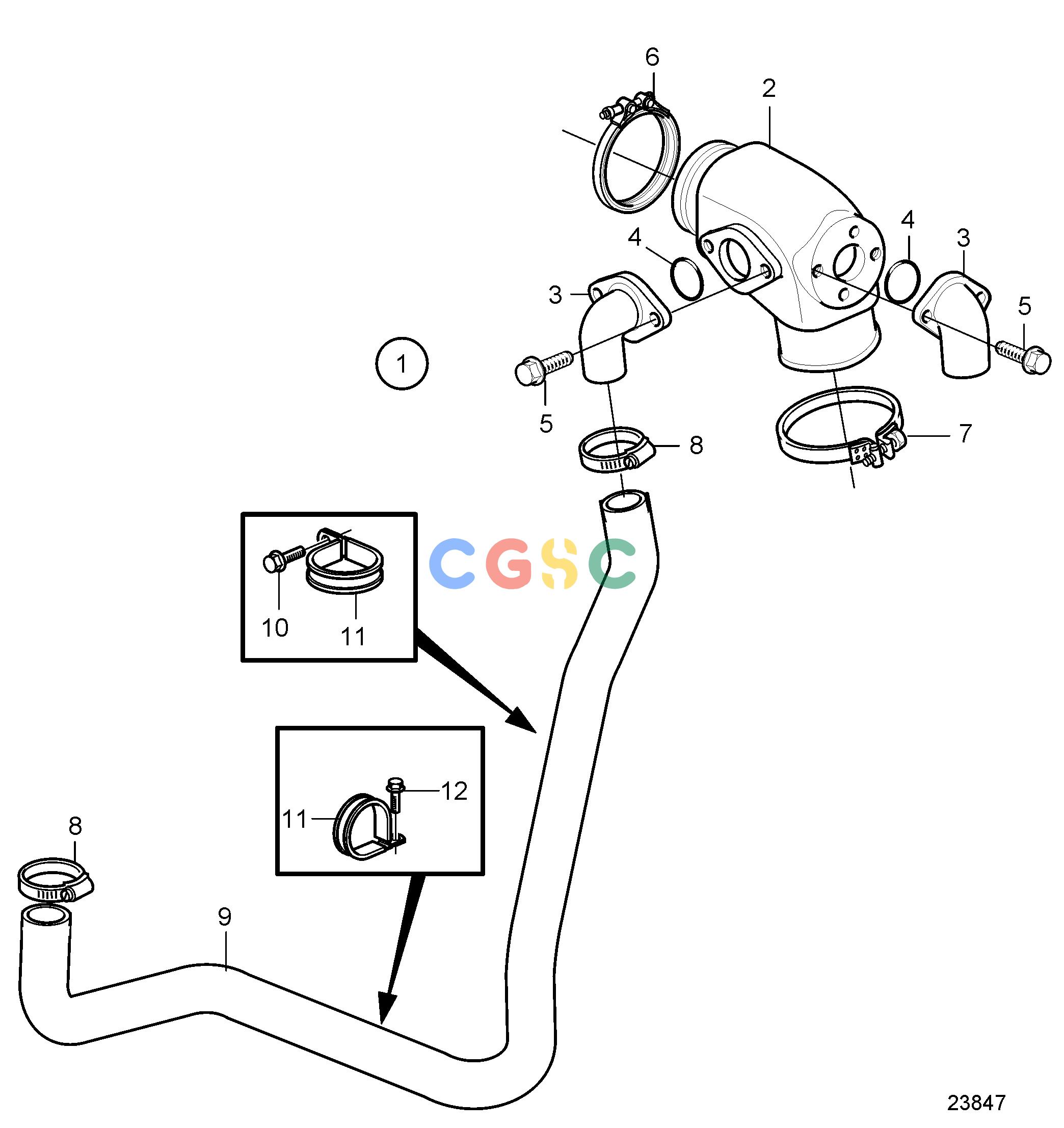

沃尔沃零件查询D6-280A-A; D6-280A-B; D6-280A-C; D6-280A-D; D6-280A-E; D6-280I-A; D6-280I-B; D6-280I-C; D6-280I-D; D6-280I-E; D6-310I-A; D6-310A-A; D6-310A-Intake and Exhaust SystemExhaust Pipe Kit, AQEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
419 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3817827
|
[1] |
Exhaust pipe kit
|
|
| 2. |
3841510
|
[1] |
Exhaust pipe elbow
|
|
| 3. |
21450768
|
[2] |
Connector
|
|
| 4. |
969415
|
[2] |
O-ring
|
|
| 5. |
948356
|
[4] |
Flange screw
|
|
| 6. |
3807212
|
[1] |
V-clamp
|
|
| 7. |
3817486
|
[1] |
Hose clamp
|
|
| 8. |
961671
|
[3] |
Hose clamp
|
|
| 9. |
3817236
|
[1] |
Hose
|
|
| 10. |
946440
|
[1] |
Flange screw
|
|
| 11. |
969354
|
[2] |
Clamp
|
|
| 12. |
946440
|
[1] |
Flange screw
|
|
