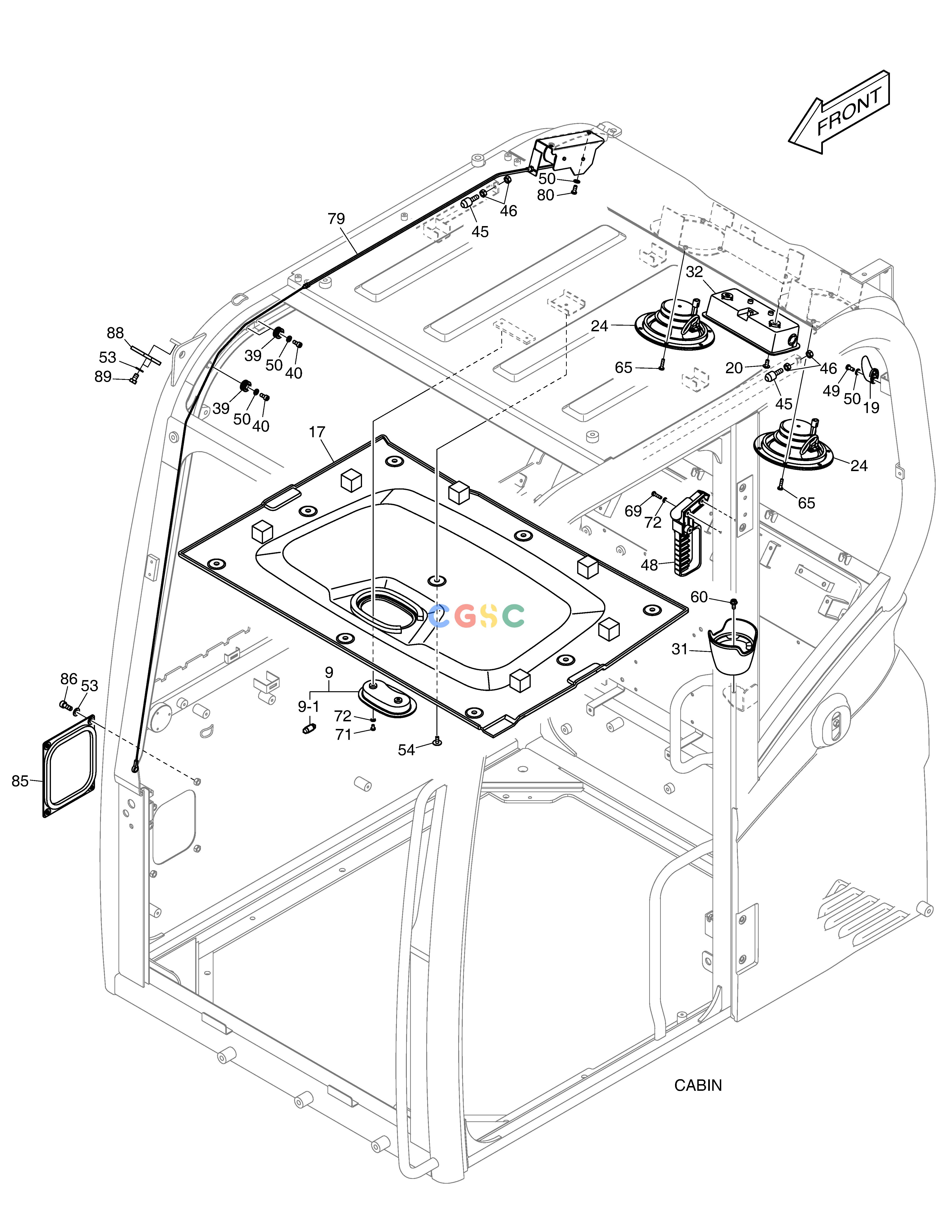

斗山零件查询CABIN(3) - ROOF E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
685 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
220101-01096L-L
|
[1] |
|
220101-01096P-L
|
| -. |
220101-01096P-L
|
[1] |
|
|
| 17. |
101555-00202G
|
[1] |
|
101555-00202K
|
| 17. |
101555-00202K
|
[1] |
|
|
| 19. |
120404-00286
|
[1] |
|
|
| 20. |
2120-2166D10
|
[2] |
SCREW
|
|
| 24. |
300652-00010A
|
[2] |
|
|
| 31. |
110929-00008
|
[1] |
|
|
| 32. |
110913-00326
|
[1] |
|
|
| 39. |
110922-00043
|
[3] |
|
|
| 40. |
S2204566
|
[3] |
BOLT
|
|
| 45. |
K1057644
|
[2] |
|
|
| 46. |
2121-1311D2
|
[4] |
NUT
|
|
| 48. |
2199-9058
|
[1] |
HAMMER
|
|
| 49. |
2120-2166D7
|
[1] |
SCREW
|
|
| 50. |
2114-1898D3
|
[4] |
WASHER
|
|
| 53. |
2114-1898D14
|
[6] |
WASHER
|
|
| 54. |
K1006936
|
[9] |
SCRIVET
|
|
| 60. |
K1010304
|
[1] |
BOLT
|
|
| 65. |
2120-2166D23
|
[12] |
SCREW
|
|
| 69. |
S3450863
|
[2] |
SCREW
|
|
| 71. |
S3450813
|
[2] |
SCREW
|
|
| 72. |
S5000213
|
[4] |
. WASHER
|
|
| 79. |
111601-00724B
|
[1] |
|
|
| 80. |
2120-2166D7
|
[2] |
SCREW
|
|
| 85. |
250105-01125
|
[1] |
|
|
| 86. |
S2208866
|
[4] |
BOLT
|
|
| 88. |
250105-01149
|
[1] |
|
|
| 89. |
2120-2166D12
|
[2] |
BOLT
|
|
| 9. |
534-00051
|
[1] |
LAMP;ROOM
|
|
| 9-1. |
2515-1021D6
|
[1] |
BULB
|
|
