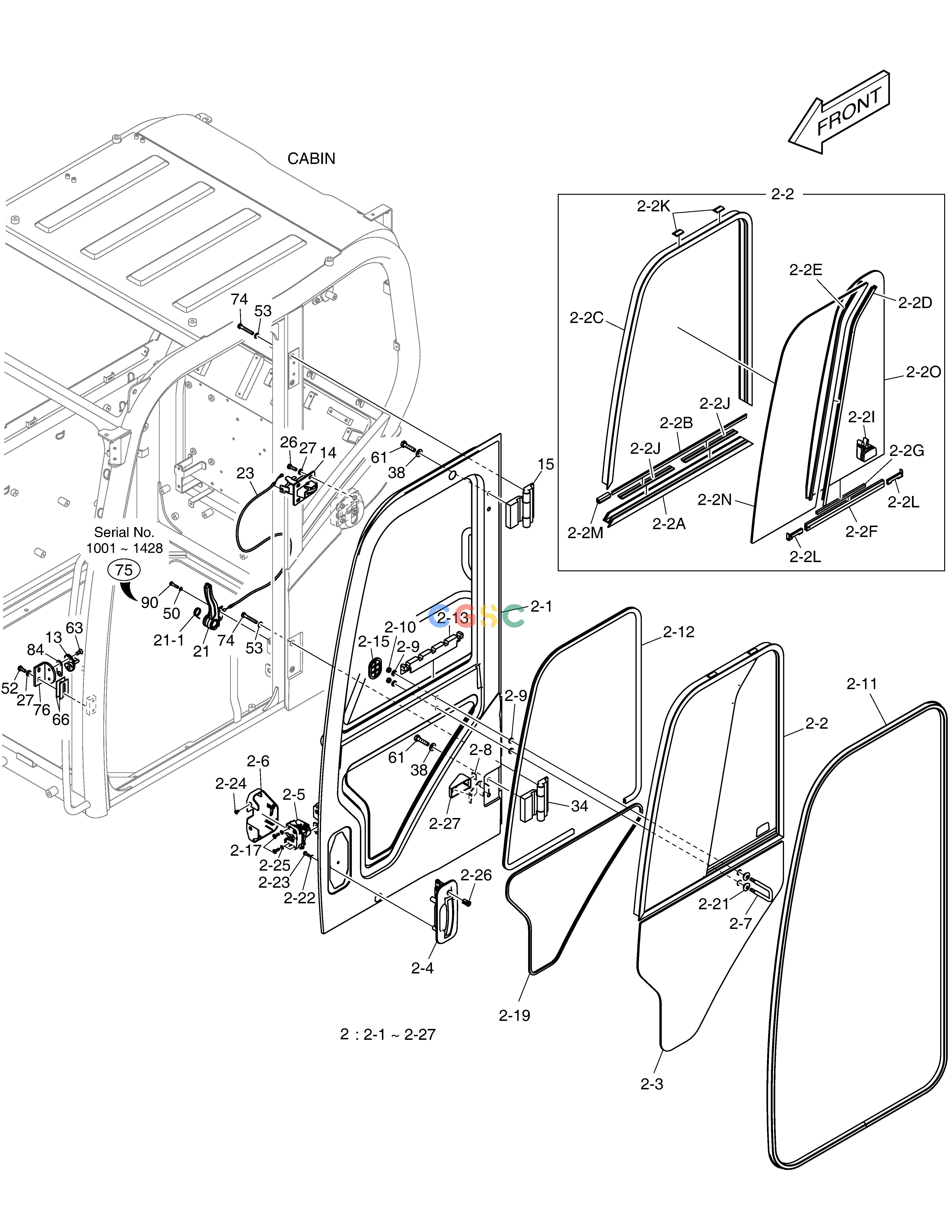

斗山零件查询CABIN(4) - SIDE DOOR E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
411 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
220101-01096L-L
|
[1] |
|
220101-01096P-L
|
| -. |
220101-01096P-L
|
[1] |
|
|
| 13. |
2142-9005
|
[1] |
STRIKER
|
101583-00039
|
| 13. |
101583-00039
|
[1] |
STRIKER;DOOR
|
|
| 14. |
100601-00022
|
[1] |
CATCH,DOOR;BACK-LOCK
|
|
| 14. |
100601-00146
|
[1] |
CATCH,DOOR;BACK-LOCK
|
|
| 15. |
110927-00361C
|
[1] |
|
|
| 2. |
110982-00697P
|
[1] |
|
110982-01130A
|
| 2. |
110982-01130A
|
[1] |
|
|
| 2-1. |
110982-00698M
|
[1] |
|
|
| 2-10. |
S4012533
|
[2] |
NUT
|
|
| 2-11. |
101588-00062E
|
[1] |
|
101588-00062G
|
| 2-11. |
101588-00062G
|
[1] |
|
|
| 2-12. |
101588-00057A
|
[1] |
|
|
| 2-13. |
110922-01011
|
[1] |
|
|
| 2-15. |
110508-25825
|
[1] |
|
|
| 2-17. |
120103-00043
|
[3] |
|
|
| 2-19. |
180102-00755A
|
[1] |
|
|
| 2-2. |
220109-00048H
|
[1] |
|
|
| 2-2. |
220109-00083
|
[1] |
|
|
| 2-21. |
131009-00044
|
[2] |
|
|
| 2-22. |
2114-1898D3
|
[4] |
WASHER
|
|
| 2-23. |
2120-2166D6
|
[4] |
BOLT
|
|
| 2-24. |
2120-2166D53
|
[2] |
. SCREW
|
|
| 2-25. |
S5210303
|
[3] |
. WASHER
|
|
| 2-26. |
K1004630
|
[1] |
CYLINDER;KEY
|
|
| 2-27. |
180308-00591
|
[1] |
|
|
| 2-2A. |
220109-00081
|
[1] |
|
|
| 2-2B. |
110922-01340
|
[1] |
|
|
| 2-2C. |
220109-00082
|
[1] |
|
|
| 2-2D. |
110302-01371
|
[1] |
|
|
| 2-2E. |
220214-00122
|
[1] |
|
|
| 2-2F. |
110922-01341
|
[1] |
|
|
| 2-2G. |
110922-01342
|
[1] |
|
|
| 2-2I. |
101544-00014
|
[1] |
|
|
| 2-2J. |
101555-00527
|
[2] |
|
|
| 2-2K. |
101555-00528
|
[2] |
|
|
| 2-2L. |
110910-01900
|
[2] |
|
|
| 2-2M. |
110956-00624
|
[1] |
|
|
| 2-2N. |
500119-00575
|
[1] |
|
|
| 2-2O. |
500119-00576
|
[1] |
|
|
| 2-2O. |
500119-00576A
|
[1] |
|
|
| 2-3. |
500119-00366B
|
[1] |
|
500119-00366C
|
| 2-3. |
500119-00366C
|
[1] |
|
|
| 2-4. |
110925-00235C
|
[1] |
|
|
| 2-5. |
100601-00099A
|
[1] |
|
|
| 2-6. |
110508-14830B
|
[1] |
|
|
| 2-7. |
101583-00085
|
[1] |
|
|
| 2-8. |
950212-02789A
|
[1] |
|
|
| 2-9. |
2114-1898D2
|
[4] |
WASHER
|
|
| 21. |
101101-00133B
|
[1] |
|
|
| 21-1. |
111603-00006
|
[1] |
|
|
| 23. |
310302-00100
|
[1] |
|
|
| 23. |
310302-00100A
|
[1] |
|
|
| 26. |
2120-2166D16
|
[4] |
BOLT
|
|
| 27. |
2114-1898D2
|
[6] |
WASHER
|
|
| 34. |
110927-00411A
|
[1] |
|
|
| 38. |
2114-1898D1
|
[4] |
WASHER
|
|
| 50. |
2114-1898D3
|
[2] |
WASHER
|
|
| 52. |
2120-2166D5
|
[2] |
BOLT
|
|
| 53. |
2114-1898D14
|
[4] |
WASHER
|
|
| 61. |
2120-2166D48
|
[4] |
BOLT
|
|
| 63. |
2120-2131
|
[2] |
SCREW M8X1.25
|
|
| 66. |
250105-00501
|
[2] |
PLATE
|
|
| 74. |
S0556466
|
[4] |
BOLT
|
|
| 75. |
2120-2166D6
|
[2] |
BOLT
|
|
| 76. |
250107-00429C
|
[1] |
|
|
| 84. |
2114-1856
|
[1] |
SHIM
|
|
| 90. |
2120-2166D36
|
[2] |
BOLT
|
|
