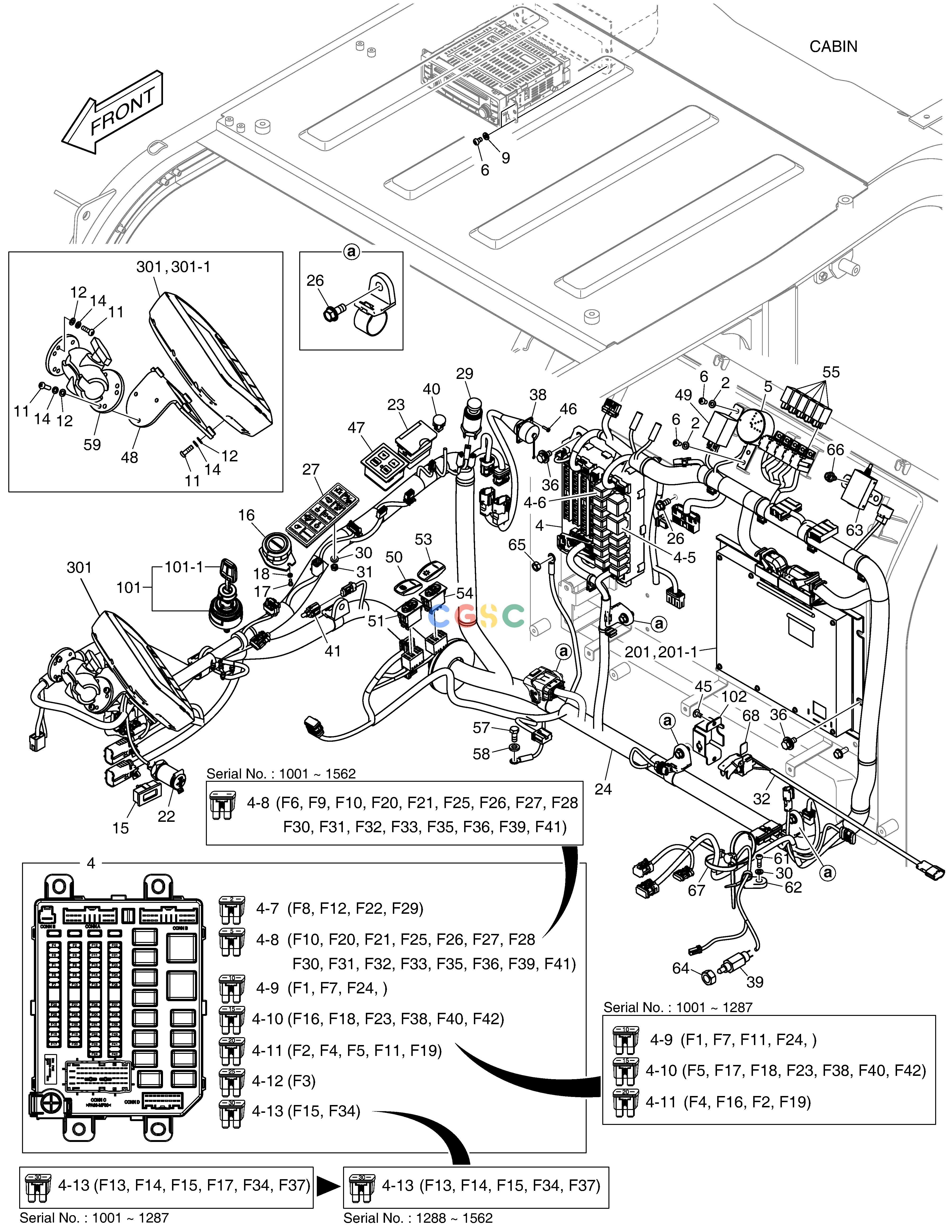

斗山零件查询ELECTRIC PARTS - CABIN E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
473 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-02345H
|
[-] |
|
|
| -. |
300619-02345L
|
[-] |
|
|
| 101. |
K1051081
|
[1] |
SWITCH;STARTER
|
|
| 101-1. |
K1051083
|
[1] |
KEY;STARTER SWITCH
|
|
| 102. |
110433-00352C-L
|
[1] |
|
|
| 11. |
S3450853
|
[10] |
SCREW
|
|
| 12. |
S5000213
|
[10] |
. WASHER
|
|
| 14. |
S5102203
|
[10] |
WASHER
|
|
| 15. |
800224-00011
|
[1] |
METER,HOUR
|
|
| 16. |
300661-00005A
|
[1] |
|
|
| 17. |
S3450583
|
[2] |
SCREW
|
|
| 18. |
S5100103
|
[2] |
WASHER
|
|
| 2. |
S5102303
|
[3] |
. WASHER
|
|
| 201. |
300611-01041
|
[1] |
|
|
| 201-1. |
970305-00050
|
[1] |
|
|
| 22. |
K1053423
|
[1] |
|
|
| 23. |
300619-01178A
|
[1] |
|
|
| 24. |
310207-04910A
|
[1] |
|
|
| 24. |
310207-04910B
|
[1] |
|
|
| 26. |
120106-00596
|
[8] |
BOLT
|
|
| 27. |
301418-00076C
|
[1] |
|
|
| 29. |
300730-00005
|
[1] |
LIGHTER,CIGAR
|
|
| 30. |
S5010313
|
[3] |
WASHER
|
|
| 301. |
300426-00180A
|
[1] |
|
|
| 301-1. |
970304-00020
|
[1] |
|
|
| 31. |
S4012303
|
[2] |
NUT
|
|
| 32. |
301405-00257
|
[1] |
|
|
| 36. |
DS0025033
|
[10] |
BOLT
|
|
| 38. |
310207-00708
|
[1] |
HARNESS
|
|
| 39. |
549-00086
|
[1] |
SWITCH
|
|
| 4. |
300707-00042A
|
[1] |
|
|
| 4. |
300707-00042B
|
[1] |
|
|
| 4. |
300707-00071
|
[1] |
|
|
| 4-10. |
300803-00285
|
[7] |
|
|
| 4-10. |
300803-00285
|
[6] |
|
|
| 4-11. |
300803-00286
|
[4] |
|
|
| 4-11. |
300803-00286
|
[5] |
|
|
| 4-12. |
300803-00289
|
[1] |
|
|
| 4-13. |
300803-00287
|
[5] |
|
|
| 4-13. |
300803-00287
|
[6] |
|
|
| 4-13. |
300803-00287
|
[2] |
|
|
| 4-5. |
301202-00379
|
[2] |
|
|
| 4-5. |
301202-00379
|
[1] |
|
|
| 4-6. |
K1053324
|
[12] |
RELAY
|
|
| 4-7. |
300803-00281
|
[4] |
|
|
| 4-8. |
300803-00283
|
[17] |
|
|
| 4-8. |
300803-00283
|
[15] |
|
|
| 4-9. |
300803-00284
|
[4] |
|
|
| 4-9. |
300803-00284
|
[3] |
|
|
| 40. |
547-00023
|
[1] |
SENSOR
|
|
| 41. |
547-00024A
|
[1] |
SENSOR
|
|
| 45. |
2120-2166D52
|
[2] |
. BOLT
|
|
| 46. |
2120-2166D22
|
[4] |
SCREW M3X0.5X12
|
|
| 47. |
300427-00791A
|
[1] |
|
|
| 48. |
110406-03101B
|
[1] |
|
|
| 49. |
300609-00031
|
[1] |
|
|
| 5. |
2516-1104
|
[1] |
BUZZER;PILOT
|
|
| 50. |
K1056630
|
[1] |
|
|
| 51. |
301423-00024
|
[1] |
|
|
| 53. |
K1056625
|
[1] |
|
|
| 54. |
301423-00029
|
[1] |
|
|
| 55. |
K1053324
|
[5] |
RELAY
|
|
| 57. |
2120-2166D5
|
[1] |
BOLT
|
|
| 58. |
2114-1898D2
|
[1] |
WASHER
|
|
| 59. |
110420-00843
|
[1] |
|
|
| 6. |
S3450943
|
[7] |
SCREW
|
|
| 61. |
S3640653
|
[1] |
SCREW
|
|
| 62. |
120402-00440
|
[1] |
CLIP
|
|
| 63. |
300703-00034
|
[1] |
|
|
| 64. |
S4012833
|
[1] |
NUT
|
|
| 65. |
S4012533
|
[1] |
NUT
|
|
| 66. |
120106-00702
|
[2] |
BOLT
|
|
| 67. |
310101-00187
|
[1] |
TIE,CABLE
|
|
| 68. |
K1004425
|
[1] |
PLATE;NAME
|
|
| 9. |
S5100303
|
[4] |
WASHER
|
|
