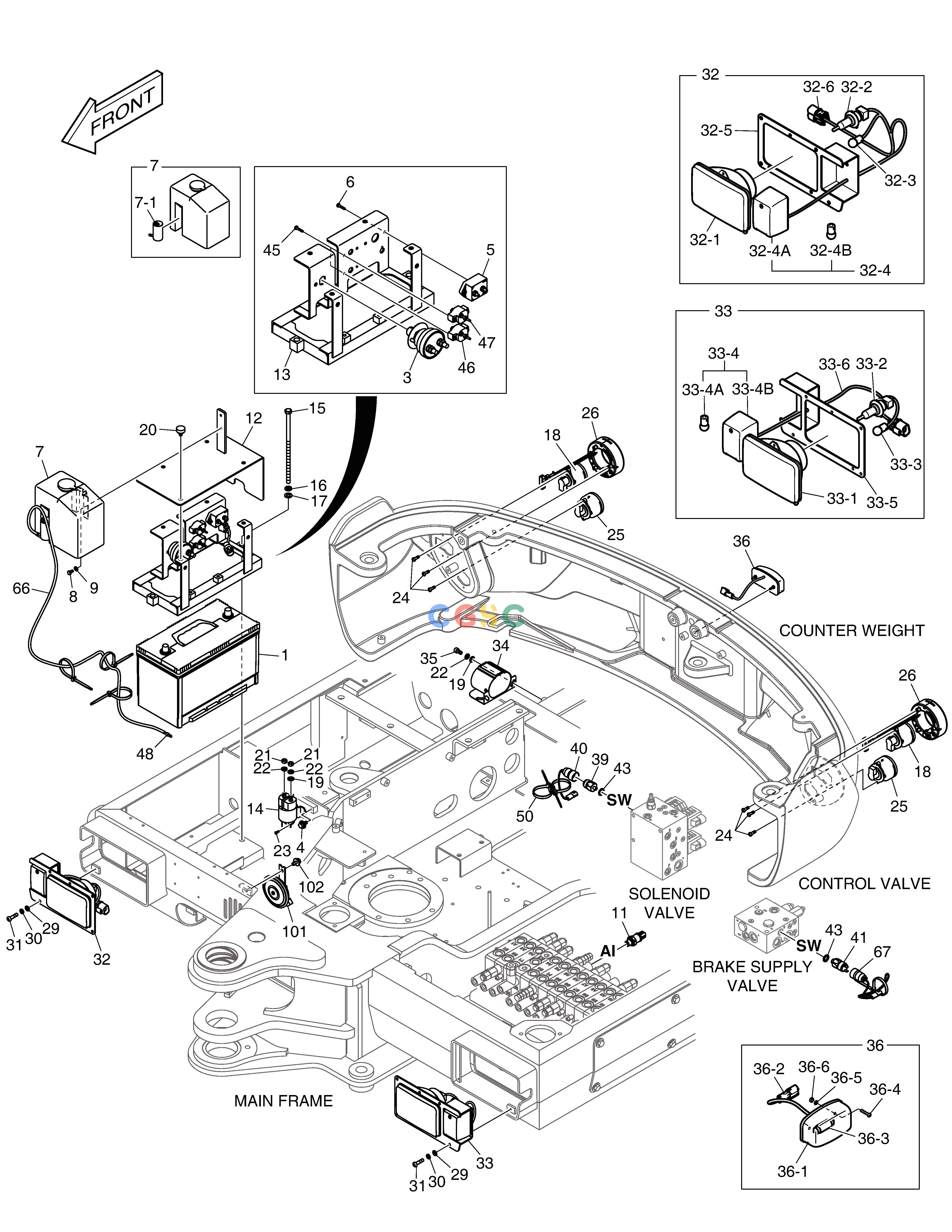

斗山零件查询ELECTRIC PARTS - RELATED PARTS E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
999 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-02330
|
[-] |
|
|
| 1. |
300101-00522
|
[1] |
|
|
| 101. |
300726-00004
|
[1] |
HORN,HIGH
|
|
| 102. |
DS0025033
|
[1] |
BOLT
|
|
| 11. |
K1057340
|
[1] |
SENSOR,PRESSURE
|
|
| 12. |
110406-03043B
|
[1] |
|
|
| 13. |
110406-03042G
|
[1] |
|
|
| 14. |
301202-00249
|
[1] |
|
|
| 15. |
DS0001079
|
[2] |
BOLT
|
|
| 16. |
S5102603
|
[2] |
. WASHER
|
|
| 17. |
S5010613
|
[2] |
WASHER
|
|
| 18. |
301005-00252
|
[2] |
|
|
| 19. |
S5010513
|
[3] |
WASHER
|
|
| 20. |
K1003427
|
[4] |
BOLT
|
|
| 21. |
S4012533
|
[2] |
NUT
|
|
| 22. |
S5102503
|
[4] |
. WASHER
|
|
| 23. |
S3450573
|
[2] |
SCREW
|
|
| 24. |
S3450583
|
[14] |
SCREW
|
|
| 25. |
301005-00253
|
[2] |
|
|
| 26. |
301005-00254A
|
[2] |
|
|
| 29. |
S5000213
|
[8] |
. WASHER
|
|
| 3. |
301405-00274
|
[1] |
SWITCH,BATTERY
|
|
| 30. |
S5102203
|
[8] |
WASHER
|
|
| 31. |
S3450863
|
[8] |
SCREW
|
|
| 32. |
K1033679A
|
[1] |
LAMP;FRONT COMBI(R.H)
|
|
| 32-1. |
2534-6032
|
[1] |
CASE;LAMP
|
|
| 32-2. |
2515-1022D2
|
[1] |
BULB;HALOGEN
|
|
| 32-3. |
S861103H
|
[1] |
BULB
|
|
| 32-4. |
534-00016
|
[1] |
LAMP;FRONT T/S
|
|
| 32-4A. |
534-00012
|
[1] |
CASE;T/S LAMP
|
|
| 32-4B. |
S863110H
|
[1] |
BULB 12V 10W
|
|
| 32-5. |
K1029542B
|
[1] |
BRACKET;LAMP(R.H)
|
|
| 32-6. |
2530-1652
|
[1] |
HARNESS;FRONT LAMP
|
|
| 33. |
K1033678A
|
[1] |
LAMP;FRONT COMBI(L.H)
|
|
| 33-1. |
2534-6032
|
[1] |
CASE;LAMP
|
|
| 33-2. |
2515-1022D2
|
[1] |
BULB;HALOGEN
|
|
| 33-3. |
S861103H
|
[1] |
BULB
|
|
| 33-4. |
534-00016
|
[1] |
LAMP;FRONT T/S
|
|
| 33-4A. |
534-00012
|
[1] |
CASE;T/S LAMP
|
|
| 33-4B. |
S863110H
|
[1] |
BULB 12V 10W
|
|
| 33-5. |
K1029541B
|
[1] |
BRACKET;LAMP(L.H)
|
|
| 33-6. |
2530-1652
|
[1] |
HARNESS;FRONT LAMP
|
|
| 34. |
516-00011
|
[1] |
BUZZER
|
|
| 35. |
S2208666
|
[2] |
BOLT
|
|
| 36. |
2534-1176B
|
[1] |
LAMP;LICENSE
|
|
| 36-1. |
2534-6019
|
[1] |
CASE;LAMP
|
|
| 36-2. |
530-00164
|
[1] |
HARNESS
|
|
| 36-3. |
2515-1021D7
|
[1] |
BULB
|
|
| 36-4. |
S3450613
|
[2] |
SCREW M4X20L
|
|
| 36-5. |
S5102103
|
[2] |
WASHER
|
|
| 36-6. |
S4012133
|
[2] |
NUT
|
|
| 39. |
2549-1135D8
|
[1] |
SWITCH;PRESSURE
|
|
| 4. |
DS0025033
|
[2] |
BOLT
|
|
| 40. |
310207-03451
|
[1] |
|
|
| 41. |
549-00084
|
[1] |
SWITCH;LOW PRESS
|
|
| 43. |
401106-00180
|
[2] |
|
|
| 45. |
2120-1354
|
[4] |
SCREW
|
|
| 46. |
300708-00341
|
[1] |
|
|
| 47. |
300708-00342
|
[1] |
|
|
| 48. |
2415-1018
|
[1] |
ADAPTER
|
|
| 5. |
300708-00016
|
[1] |
|
|
| 50. |
310101-00187
|
[1] |
TIE,CABLE
|
|
| 6. |
K1056613
|
[2] |
SCREW
|
|
| 66. |
4185-1777
|
[1] |
HOSE;WATER
|
|
| 67. |
2530-1685
|
[1] |
HARNESS;OIL PRESS. SW.
|
|
| 7. |
450108-00008
|
[1] |
|
|
| 7-1. |
300506-00320
|
[1] |
|
|
| 8. |
S0504453
|
[2] |
BOLT
|
|
| 9. |
S5010313
|
[2] |
WASHER
|
|
