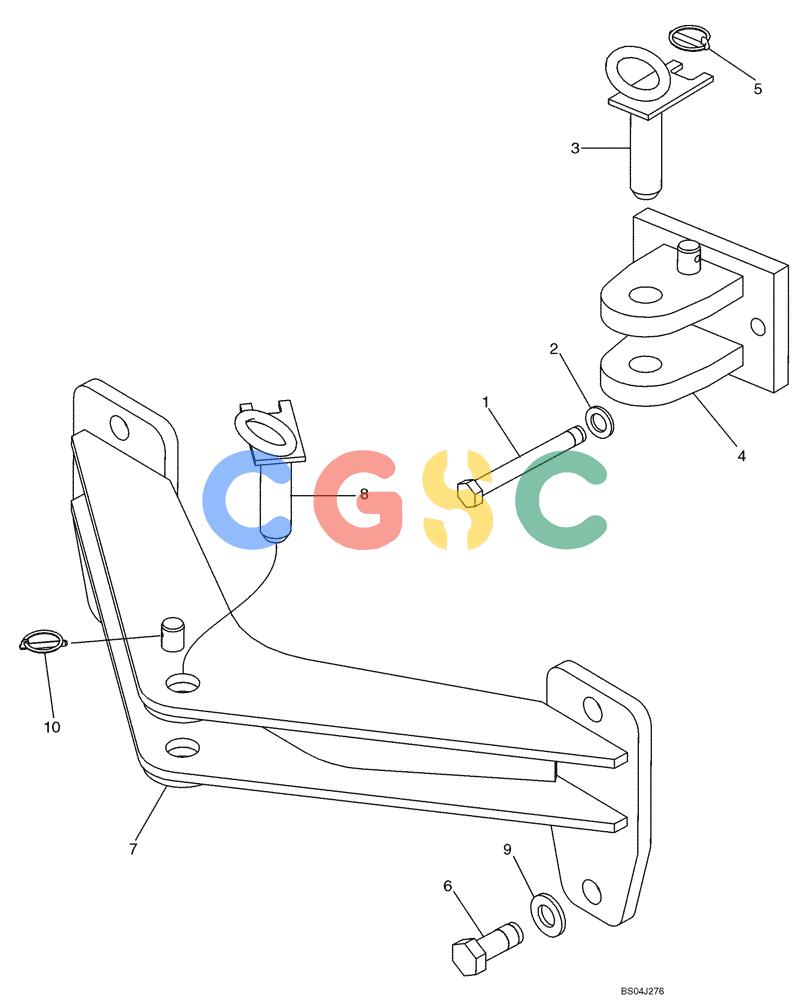

纽荷兰零件查询(DC75) - CRAWLER DOZER (8/04-) (09-07) - DRAWBAR - HOOK, TOWING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
367 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 827-20070 | [2] | BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9 | CAS Superseded by part number: 412641 |
| 2. | 896-11020 | [2] | WASHER,22mm ID x 37mm OD x 4mm Thk | CAS22 x 37 x 4 mm Superseded by part number: 86625260 |
| 3. | 431997A1 | [1] | TOWBAR PIN | BUR |
| 4. | 86983016 | [1] | HOOK | BURRear Towing |
| 5. | A30338 | [1] | PIN | CASLock Superseded by part number: 270184 |
| 6. | 410-91640 | [4] | BOLT,Hex, 1" - 8 x 2 1/2", Gr 8 | CAS1 x 2-1/2; 8 |
| 7. | 86982328 | [1] | DRAWBAR | BUR |
| 9. | 496-31106 | [4] | WASHER,1 1/16" x 2" x .219", HDN | CAS1-1/16 x 2 x 7/32 Superseded by part number: 87024780 |
