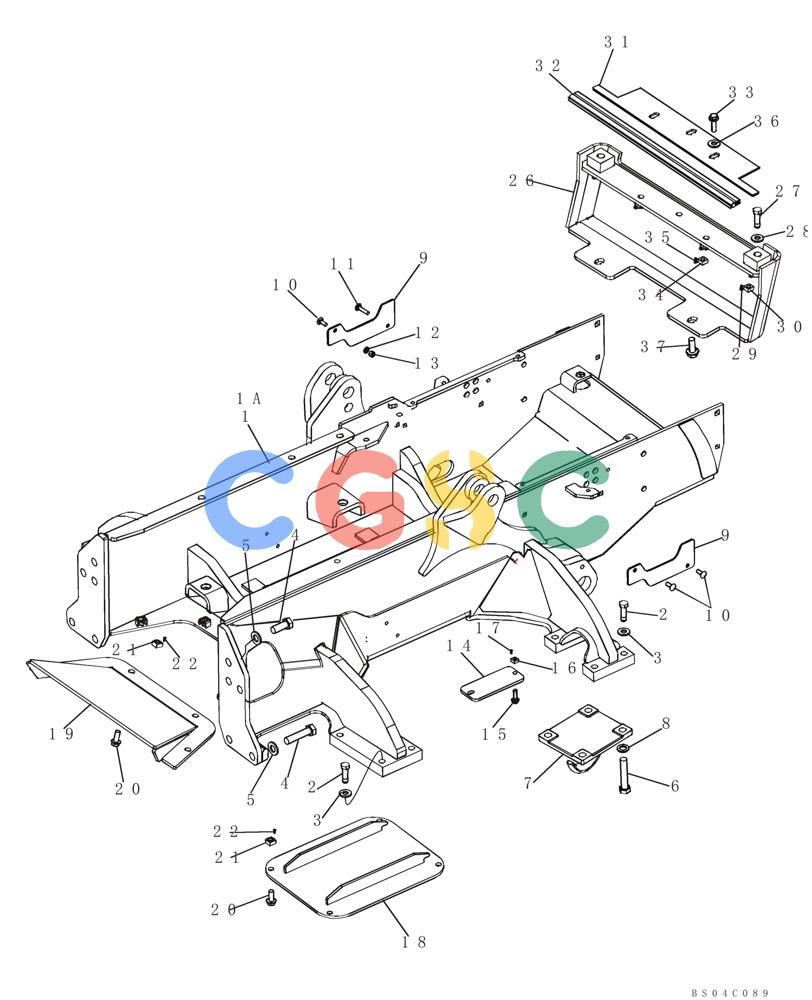

| 1. | 87435868 | [1] | FRAME ASSY | BURChassis; Lower; 1448 mm (57 inch) Gauge Long Track (LT) Models |
| 1A. | 87435869 | [1] | FRAME ASSY | BURChassis; Lower; 1702 mm (67 inch) Gauge Wide Track (WT) or Low Ground Pressure (LGP) Models; Not Illustrated |
| 2. | 410-91240 | [16] | BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8 | CAS3/4 x 2-1/2; 8 |
| 3. | 496-41081 | [16] | WASHER,13/16" x 1 3/4" x .219", HDN | CAS Superseded by part number: 87326714 |
| 4. | 410-91640 | [10] | BOLT,Hex, 1" - 8 x 2 1/2", Gr 8 | CAS1 x 2-1/2; 8 |
| 5. | 496-31106 | [10] | WASHER,1 1/16" x 2" x .219", HDN | CAS1-1/16 x 2 x 7/32 Superseded by part number: 87024780 |
| 6. | 627-20060 | [4] | BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd | CASM20 x 60; Used With Ref 7 Superseded by part number: 9843495 |
| 7. | 450473A1 | [1] | HOOK | BURTowing |
| 8. | 896-11020 | [4] | WASHER,22mm ID x 37mm OD x 4mm Thk | CAS22 x 37 x 4 mm Superseded by part number: 86625260 |
| 9. | 86984811 | [2] | FIXING PLATE | CAS |
| 10. | 711-10030 | [3] | CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 30mm, Cl 8.8 | CASM10 x 30 Superseded by part number: 86512446 |
| 11. | 811-10035 | [1] | CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 35mm, Cl 8.8 | BURM10 x 35 Superseded by part number: 707700560 |
| 12. | 896-11010 | [4] | WASHER,11mm ID x 21mm OD x 2.5mm Thk | CAS Superseded by part number: 86625252 |
| 13. | 832-10410 | [4] | NUT,M10 x 1.5, Cl 8 | CAS Superseded by part number: 190003888452 |
| 14. | 86983502 | [1] | COVER PLATE | CASOil Drain |
| 15. | 857-12030 | [2] | BOLT,Hvy Hex, M12 x 30mm, Cl 10.9 | CAS Superseded by part number: 87030508 |
| 16. | 87447306 | [2] | SQUARE NUT | CAS |
| 17. | 336371A1 | [2] | PIN | CASNut Retainer |
| 18. | 87435888 | [1] | PAN ASSY. | CASCenter |
| 19. | 87435885 | [1] | PAN | CASRear |
| 20. | 857-16040 | [8] | BOLT,Hvy Hex, M16 x 40mm, Cl 10.9 | CASM16 x 40, 10.9 Superseded by part number: 87495304 |
| 21. | 405737A2 | [8] | SQUARE NUT | BUR |
| 26. | 87439929 | [1] | PLATE ASSY. | BURFront |
| 27. | 827-16070 | [2] | BOLT,Hex, M16 x 2 x 70mm, Cl 10.9 | CAS Superseded by part number: 87015545 |
| 28. | 896-11016 | [2] | WASHER,17.5mm ID x 30mm OD x 4mm Thk | IH Superseded by part number: 86625266 |
| 31. | 87439934 | [1] | PLATE | BURLower Radiator; Used With Front Bumper |
| 32. | 432943A1 | [1] | SEAL | BUR |
| 33. | 627-12040 | [3] | BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd | CAS Superseded by part number: 337563 |
| 36. | 896-11012 | [3] | WASHER,13.5mm ID x 24mm OD x 3mm Thk | CAS Superseded by part number: 86625255 |
| 37. | 555-135 | [2] | BOLT,Hvy Hex, M16 x 50mm, Cl 10.9 | CASM16 x 50; 10.9 |
