纽荷兰零件查询(DC75) - CRAWLER DOZER (8/04-) (09-09) - UPPER MAIN FRAME, MOUNTING - HYDRAULIC AND FUEL TANK SEAT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
828 次

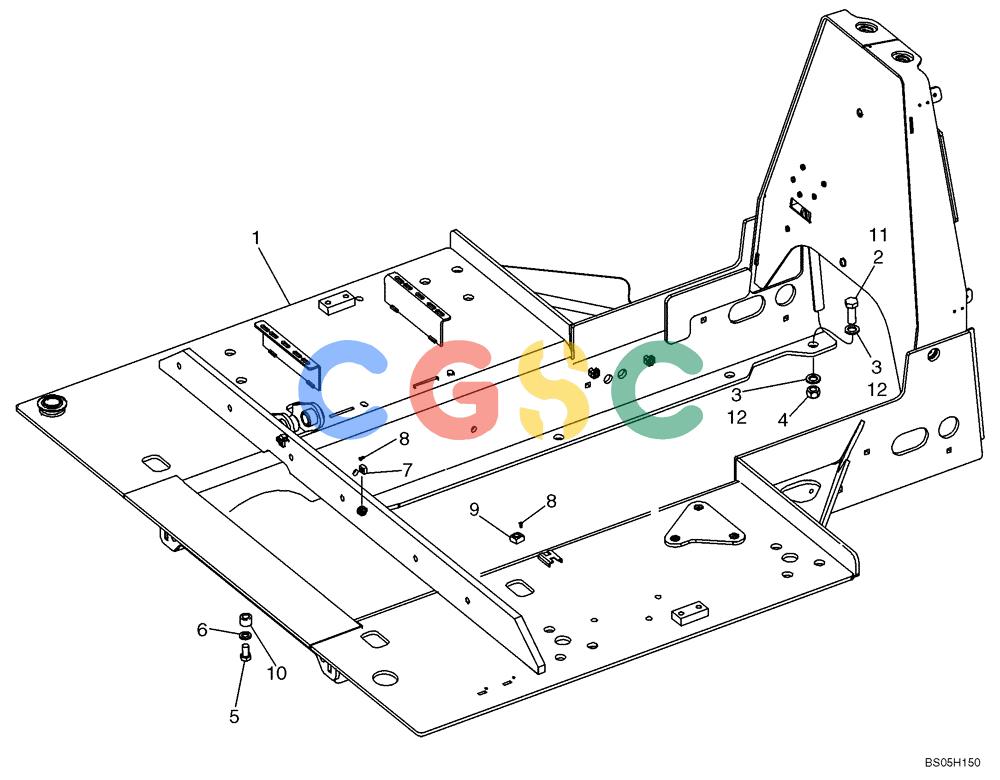

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87347754 | [1] | FRAME ASSY | BURUpper; Hydraulic and Fuel Tank Seat; Replaces 86982008 |
| . . | 87382387 | [1] | SERVICE KIT | BURSERVICE KIT; Upper Chassis Frame Service Kit; Includes 87381262 Tank Frame Plate, Rear Gusset |
| 2. | 627-20055 | [6] | BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd | CASUse with Loctite 243; Used on models with Mounting 'Hole'; If used Superseded by part number: 190003809441 |
| 3. | 896-11020 | [12] | WASHER,22mm ID x 37mm OD x 4mm Thk | CAS22 x 37 x 4 mm; Used On Models With Mounting 'Hole'; If Used Superseded by part number: 86625260 |
| 4. | 829-1420 | [6] | NUT,M20, Cl 10 | CAS Superseded by part number: 9847024 |
| 5. | 814-16055 | [5] | BOLT,Hex, M16 x 2 x 55mm, Cl 8.8 | CASHex, M16 x 55, 8.8, Full Thd Superseded by part number: 385923 |
| 6. | D44330 | [6] | SHIM,.031" Thk | CASWasher |
| 7. | 122958A1 | [1] | SQUARE NUT | CASM10 Superseded by part number: 230427A1 |
| 8. | 336371A1 | [9] | PIN | CASNut Retainer |
| 9. | 405737A2 | [8] | SQUARE NUT | BURM16 |
| 10. | 87440363 | [5] | SPACER | CASSpacer |
| 11. | 627-20060 | [6] | BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd | CASM20 x 60; Use With Loctite 243; Used On Models With Mounting 'Slot'; If Used Superseded by part number: 9843495 |
| 12. | 896-15020 | [12] | WASHER,22mm ID x 44mm OD x 5mm Thk | CAS22 x 44 x 5 mm; Used On Models With Mounting 'Slot'; If Used Superseded by part number: 86639847 |
