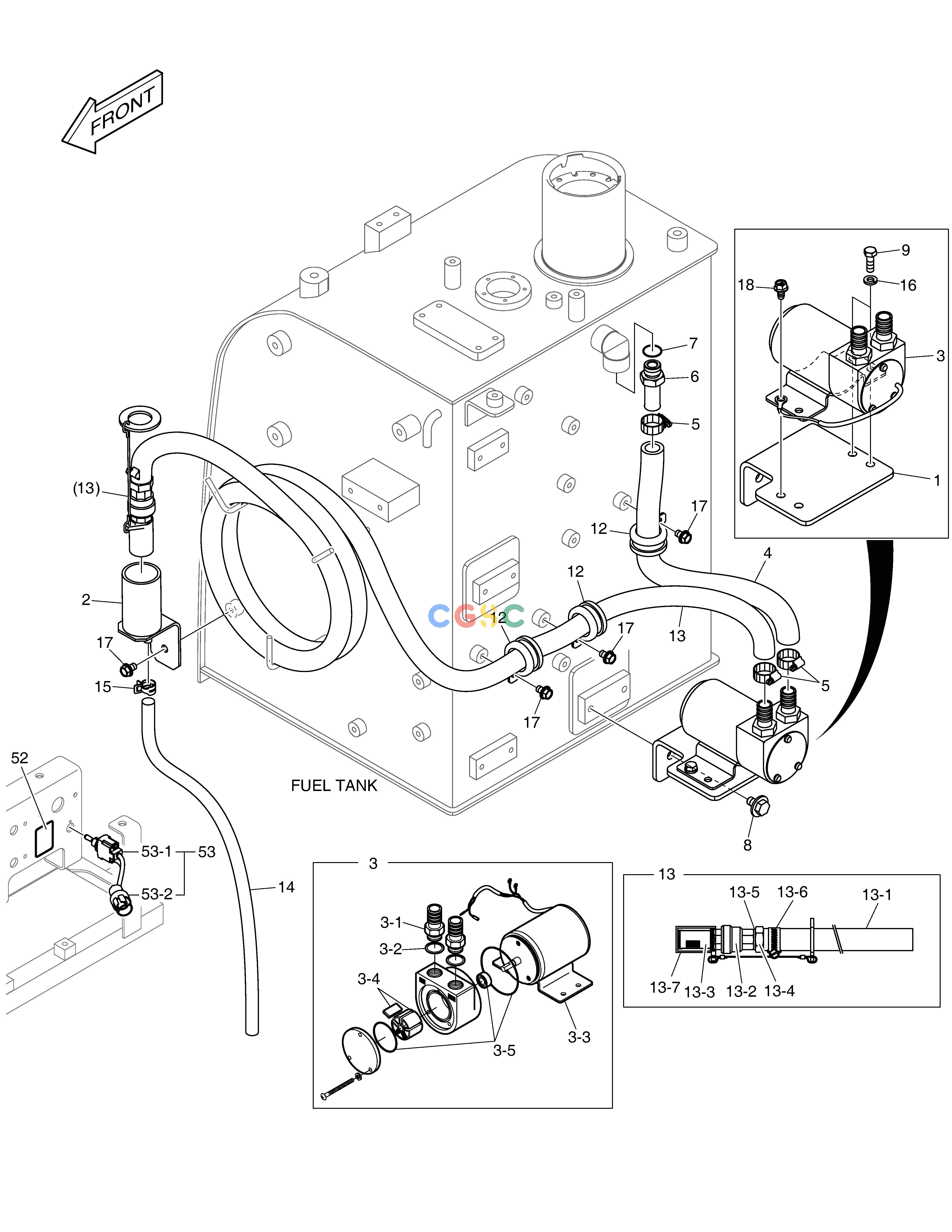

斗山零件查询FUEL FILLER PUMP E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
975 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400909-00229
|
[-] |
|
|
| 1. |
110439-00008-L
|
[1] |
|
|
| 12. |
124-00208D5
|
[3] |
CLIP
|
|
| 13. |
185-00167D2
|
[1] |
HOSE ASS'Y 3000L
|
|
| 13-1. |
185-00195D5
|
[1] |
HOSE 650L
|
|
| 13-2. |
2420-1258
|
[1] |
. VALVE,CHECK
|
|
| 13-3. |
2471-1152
|
[1] |
. STRAINER
|
|
| 13-4. |
2181-2755B
|
[1] |
. ADAPTER
|
|
| 13-5. |
S8180321
|
[1] |
. RING,SEAL
|
|
| 13-6. |
S8450016
|
[1] |
. CLAMP
|
|
| 13-7. |
2160-1336
|
[1] |
. CAP,STRAINER
|
|
| 14. |
DS2105044
|
[1] |
HOSE
|
|
| 15. |
DS2809004
|
[1] |
|
|
| 16. |
S5102503
|
[2] |
. WASHER
|
|
| 17. |
K1001029
|
[4] |
BOLT
|
|
| 18. |
120106-00702
|
[1] |
BOLT
|
|
| 2. |
110420-00711B-L
|
[1] |
|
|
| 3. |
K1030262
|
[1] |
PUMP;FUEL FILLER
|
|
| 3-1. |
2181-2755B
|
[2] |
. ADAPTER
|
|
| 3-2. |
S8180321
|
[2] |
. RING,SEAL
|
|
| 3-3. |
523-00003
|
[1] |
MOTOR;FUEL TRANSFER PUMP
|
|
| 3-4. |
407-00001
|
[1] |
. VANE KIT
|
|
| 3-5. |
2401-1276KT
|
[1] |
. SEAL KIT
|
|
| 4. |
420103-00327
|
[1] |
HOSE
|
|
| 5. |
S8470028
|
[3] |
CLAMP
|
|
| 52. |
190-01172
|
[1] |
PLATE,NAME
|
|
| 53. |
K1024144
|
[1] |
TOGGLE SWITCH ASS'Y
|
|
| 53-1. |
549-00093
|
[1] |
. SWITCH
|
|
| 53-2. |
530-00214A
|
[1] |
. HARNESS;JOINT
|
|
| 6. |
2181-2104D6
|
[1] |
ADAPTER
|
|
| 7. |
S8000181
|
[1] |
O-RING
|
|
| 8. |
DS0025014
|
[2] |
BOLT
|
|
| 9. |
S0509066
|
[2] |
BOLT
|
|
