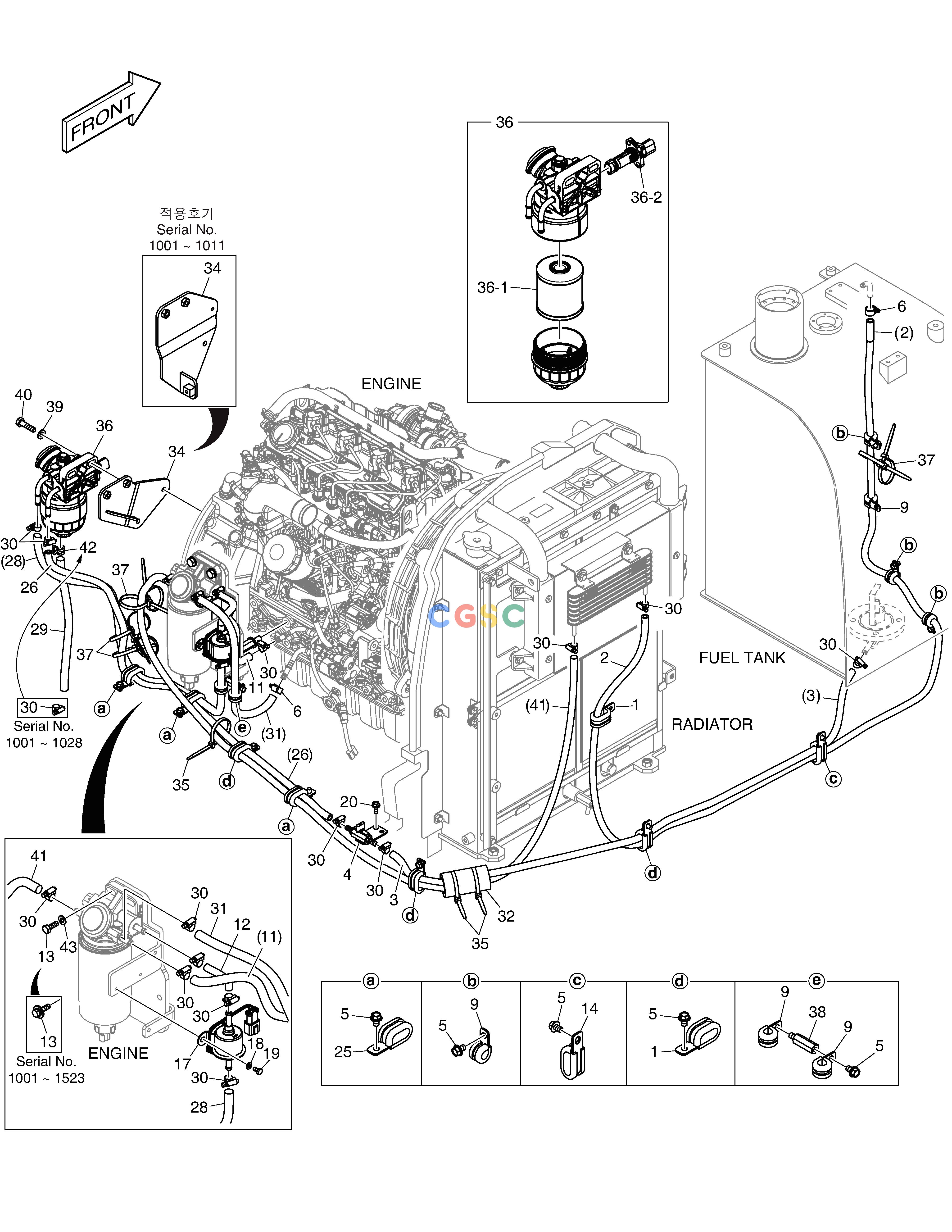

斗山零件查询FUEL PIPING E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
886 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-10684
|
[-] |
|
|
| 1. |
124-00209D1
|
[4] |
CLIP
|
|
| 11. |
420103-00282
|
[1] |
|
|
| 12. |
420103-00259
|
[1] |
|
|
| 12. |
420103-00259B
|
[1] |
|
|
| 13. |
DS0025039
|
[2] |
BOLT;SET
|
|
| 13. |
S0512266
|
[2] |
BOLT
|
|
| 14. |
124-00209D6
|
[1] |
CLIP
|
|
| 17. |
400909-00179
|
[1] |
|
|
| 18. |
S5000313
|
[2] |
WASHER
|
|
| 19. |
S0504453
|
[2] |
BOLT
|
|
| 2. |
420103-00260A
|
[1] |
|
|
| 20. |
120106-00596
|
[2] |
BOLT
|
|
| 25. |
124-00209D1
|
[3] |
CLIP
|
|
| 26. |
DS2117025
|
[1] |
|
|
| 28. |
DS2105101
|
[1] |
|
|
| 29. |
DS2105009
|
[1] |
HOSE
|
|
| 3. |
DS2117022
|
[1] |
|
|
| 30. |
S8470014
|
[14] |
CLAMP
|
|
| 31. |
420103-00273
|
[1] |
|
|
| 32. |
180102-00984
|
[1] |
|
|
| 34. |
110406-04367
|
[1] |
|
|
| 34. |
110406-04539
|
[1] |
|
|
| 35. |
310101-00035
|
[3] |
TIE,CABLE
|
|
| 36. |
400403-00444
|
[1] |
|
400403-00444A
|
| 36. |
400403-00444A
|
[1] |
FILTER,FUEL PRE
|
|
| 36-1. |
400508-00101
|
[1] |
CARTRIDGE,FUEL FILTER
|
|
| 36-2. |
440207-00509
|
[1] |
|
|
| 37. |
310101-00187
|
[3] |
TIE,CABLE
|
|
| 37. |
310101-00187
|
[4] |
TIE,CABLE
|
|
| 38. |
DS0026011
|
[1] |
|
|
| 39. |
S5010616
|
[2] |
WASHER
|
|
| 4. |
410202-00038
|
[1] |
|
|
| 40. |
S0512466
|
[2] |
BOLT
|
|
| 41. |
420103-00272
|
[1] |
|
|
| 42. |
DS2809001
|
[1] |
CLIP
|
|
| 43. |
120804-00076
|
[2] |
WASHER
|
|
| 5. |
K1001029
|
[11] |
BOLT
|
|
| 6. |
S8470020
|
[16] |
CLAMP
|
|
| 9. |
124-00208D2
|
[6] |
CLAMP
|
|
