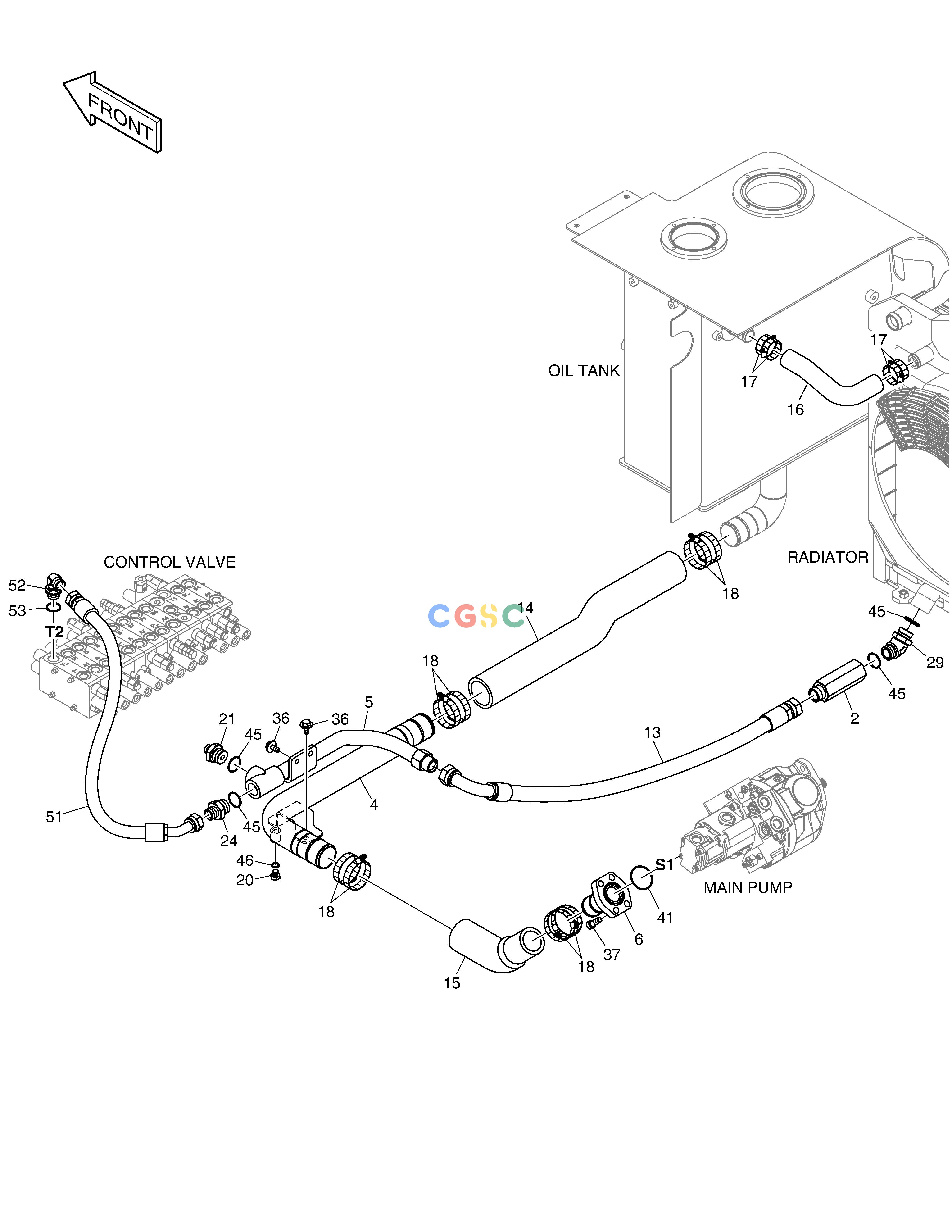

斗山零件查询OIL COOLER PIPING(2) E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
189 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09573
|
[-] |
|
|
| 13. |
DS20551327
|
[1] |
HOSE
|
|
| 14. |
420108-00907B
|
[1] |
HOSE
|
|
| 15. |
420108-00908B
|
[1] |
|
|
| 16. |
420108-00909E
|
[1] |
|
|
| 17. |
S8500051
|
[4] |
|
|
| 18. |
S8500079
|
[8] |
CLAMP
|
|
| 2. |
410104-00318
|
[1] |
|
|
| 20. |
2181-1950D1
|
[1] |
PLUG
|
|
| 21. |
2181-1126D100
|
[1] |
ADAPTER
|
|
| 24. |
2181-1126D22
|
[1] |
ADAPTER
|
|
| 29. |
DS2504005
|
[1] |
ELBOW
|
|
| 36. |
DS0025023
|
[4] |
BOLT
|
|
| 37. |
S2215366
|
[4] |
BOLT
|
|
| 4. |
420207-02425C
|
[1] |
|
|
| 41. |
DS2856005
|
[1] |
O-RING
|
|
| 45. |
S8000291
|
[4] |
O-RING
|
|
| 46. |
S8000111
|
[1] |
O-RING
|
|
| 5. |
420217-00231B
|
[1] |
|
|
| 51. |
DS2054582
|
[1] |
|
|
| 52. |
2181-1702D1
|
[1] |
ELBOW
|
|
| 53. |
S8000241
|
[1] |
O-RING
|
|
| 6. |
420218-00281
|
[1] |
|
|
