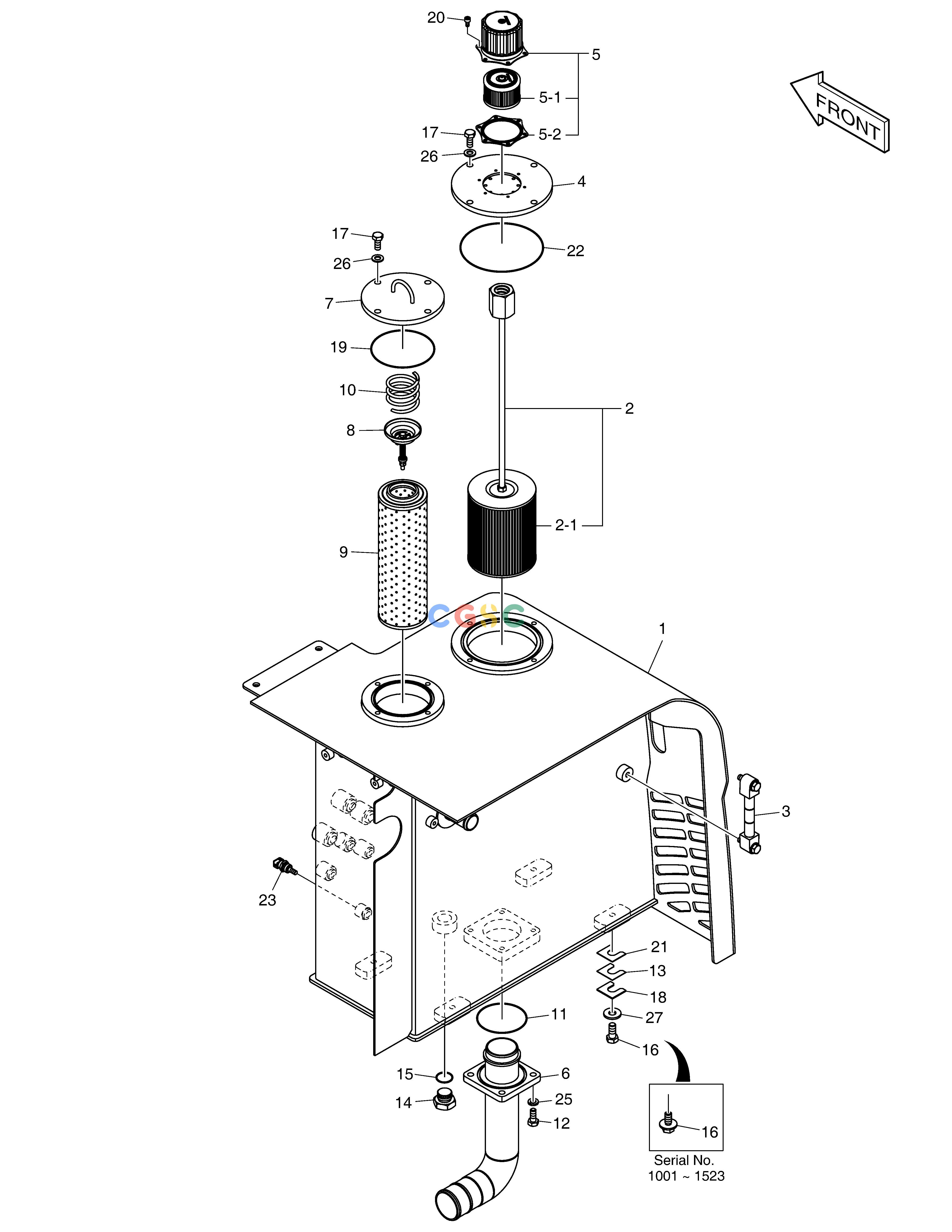

斗山零件查询OIL TANK E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
143 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
450105-00807
|
[-] |
|
|
| 1. |
450105-00517R-H
|
[1] |
|
|
| 10. |
2129-1225
|
[1] |
SPRING
|
|
| 11. |
S8010850
|
[1] |
O-RING
|
|
| 12. |
S0512066
|
[4] |
. BOLT
|
|
| 13. |
2114-1803
|
[4] |
SHIM PL0.6
|
|
| 14. |
2181-1950D15
|
[1] |
PLUG
|
|
| 15. |
S8000231
|
[1] |
O-RING
|
|
| 16. |
DS0025018
|
[4] |
BOLT
|
|
| 16. |
S0515166
|
[4] |
BOLT
|
|
| 17. |
S0512066
|
[8] |
. BOLT
|
|
| 18. |
2114-1804
|
[4] |
SHIM
|
|
| 19. |
S8011101
|
[1] |
O-RING
|
|
| 2. |
400408-00036
|
[1] |
FILTER,SUCTION
|
|
| 2-1. |
K1052329
|
[1] |
STRAINER;SUCTION
|
|
| 20. |
2120-2166D41
|
[6] |
BOLT
|
|
| 21. |
2114-1802
|
[4] |
SHIM
|
|
| 22. |
S8011450
|
[1] |
O-RING
|
|
| 23. |
K1003296
|
[1] |
SENSOR,HYD OIL TEMP
|
|
| 25. |
S5102603
|
[4] |
. WASHER
|
|
| 26. |
S5010613
|
[8] |
WASHER
|
|
| 27. |
120804-00079
|
[4] |
WASHER
|
|
| 3. |
119-00027A
|
[1] |
GAUGE;LEVEL
|
|
| 4. |
K1029666A
|
[1] |
COVER;TANK
|
|
| 5. |
400811-00093
|
[1] |
|
|
| 5-1. |
400504-00255
|
[1] |
|
|
| 5-2. |
K9005662
|
[1] |
. GASKET
|
|
| 6. |
420218-00266B
|
[1] |
|
|
| 7. |
473-00037
|
[1] |
COVER;TANK
|
|
| 8. |
410128-00029
|
[1] |
VALVE,BYPASS
|
|
| 9. |
400504-00150
|
[1] |
ELEMENT,FILTER(RETURN)
|
|
