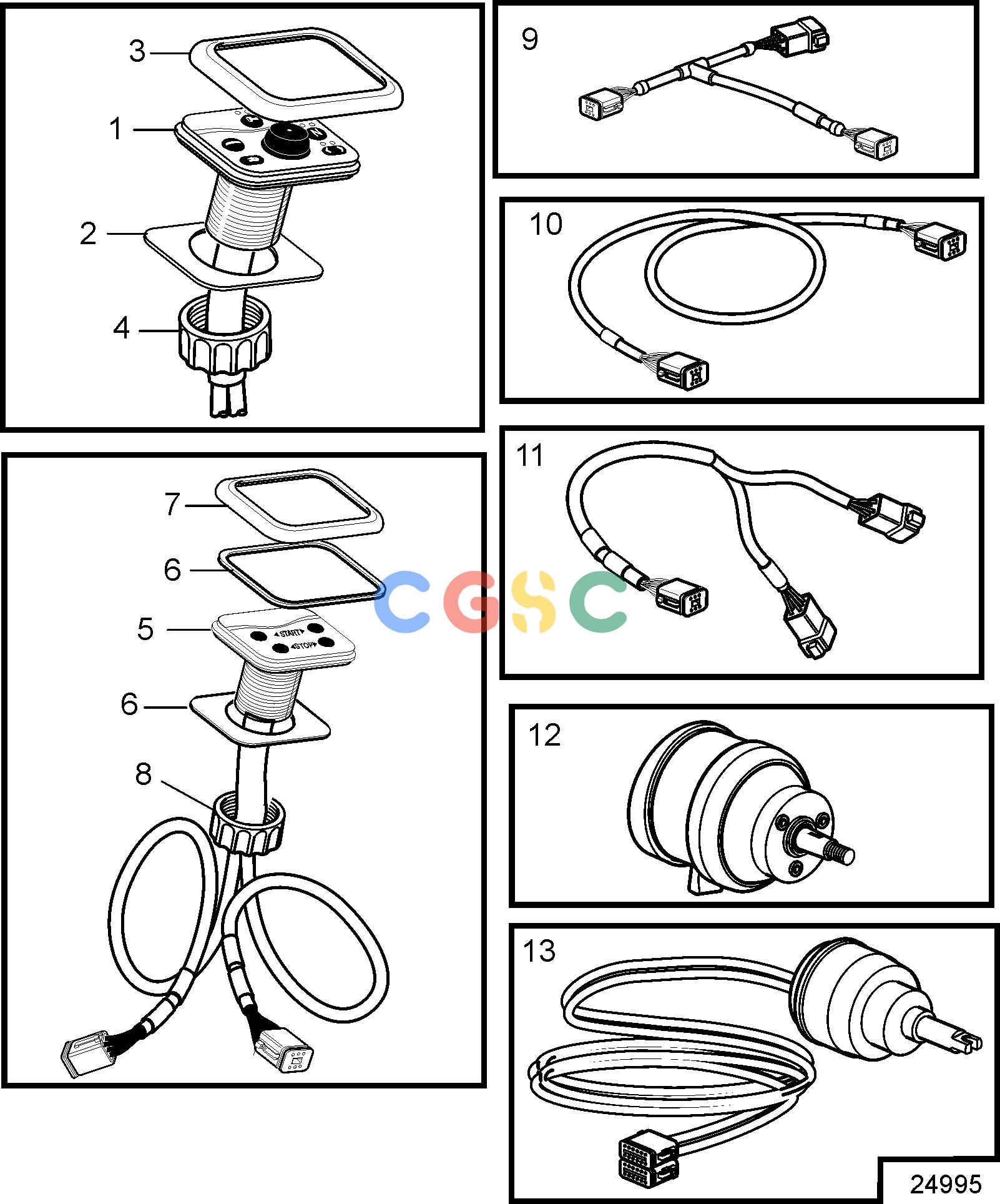

沃尔沃零件查询D6-280A-A; D6-280A-B; D6-280A-C; D6-280A-D; D6-280A-E; D6-280I-A; D6-280I-B; D6-280I-C; D6-280I-D; D6-280I-E; D6-310I-A; D6-310A-A; D6-310A-Steering SystemMounting Kit IPS, Second Station, EVC-C3EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
800 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21310164
|
[1] |
Control panel
|
|
| 2. |
3808135
|
[1] |
Gasket
|
|
| 3. |
3808131
|
[1] |
Frame
|
|
| 4. |
3808134
|
[1] |
Nut
|
|
| 5. |
40005642
|
[1] |
Control panel, start/stop
|
Twin Installation, Dual station
|
| 6. |
3808135
|
[1] |
Gasket
|
Also for flushmounting.
|
| 7. |
3808131
|
[1] |
Frame
|
|
| 8. |
3808134
|
[1] |
Nut
|
|
| 9. |
3588972
|
[2] |
Cable kit
|
|
| 10. |
3886666
|
[3] |
Cable
|
|
| 11. |
3588206
|
[2] |
Cable kit
|
|
| 12. |
3841280
|
[1] |
Steering wheel adjus
|
|
| 13. |
3808380
|
[1] |
Kit
|
|
