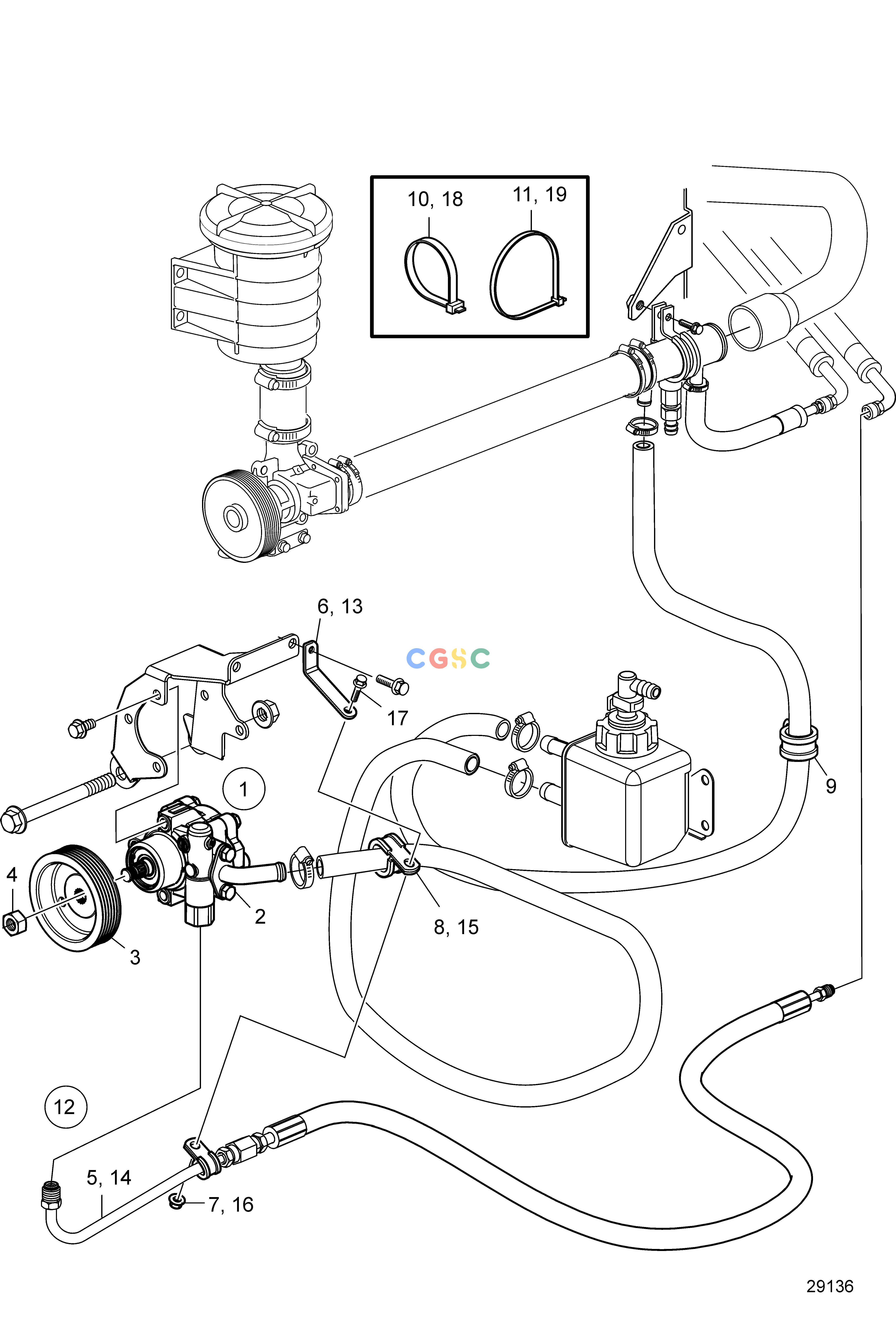

沃尔沃零件查询D6-280A-A; D6-280A-B; D6-280A-C; D6-280A-D; D6-280A-E; D6-280I-A; D6-280I-B; D6-280I-C; D6-280I-D; D6-280I-E; D6-310I-A; D6-310A-A; D6-310A-Steering SystemPower Steering Hose KitEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
247 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22285774
|
[1] |
New ps hose, kit -
|
|
| 2. |
21317314
|
[1] |
Pump
|
|
| 3. |
21299963
|
[1] |
Pulley
|
|
| 4. |
3889613
|
[1] |
Nut
|
|
| 5. |
21897293
|
[1] |
Hydraulic hose
|
|
| 6. |
21619824
|
[1] |
Bracket
|
|
| 7. |
990940
|
[1] |
Flange nut
|
|
| 8. |
942542
|
[1] |
Clamp
|
|
| 9. |
947827
|
[1] |
Clamp
|
|
| 10. |
948211
|
[2] |
Cable tie
|
|
| 11. |
980464
|
[2] |
Cable tie
|
|
| 12. |
22492735
|
[1] |
New ps hose, kit -
|
|
| 13. |
21619824
|
[1] |
Bracket
|
|
| 14. |
21897293
|
[1] |
Hydraulic hose
|
|
| 15. |
942542
|
[1] |
Clamp
|
|
| 16. |
945408
|
[1] |
Flange nut
|
|
| 17. |
945444
|
[1] |
Flange screw
|
|
| 18. |
948211
|
[1] |
Cable tie
|
|
| 19. |
980464
|
[1] |
Cable tie
|
|
