纽荷兰零件查询(DC75) - CRAWLER DOZER (8/04-) (09-31) - CAB - COVERS, REAR INTERIOR AND SPEAKERS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
444 次

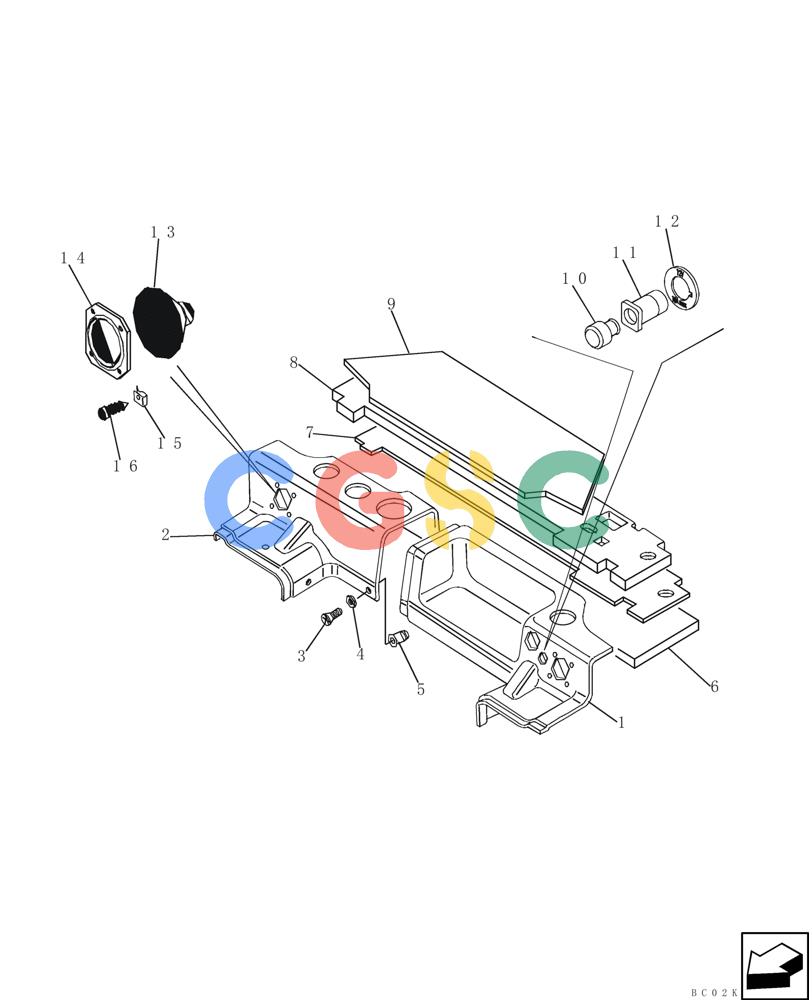

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87400843 | [1] | COVER ASSY | BURRear, Left-Hand |
| 2. | 87400844 | [1] | COVER ASSY | BURRear, Right-Hand |
| 3. | 79105220 | [8] | SCREW,Phillips Drive, Oval HD, M6 x 20mm | IMO |
| 4. | 79076208 | [8] | WASHER | LECNylon, Black |
| 5. | 15629711 | [8] | THREADED INSERT | BURM6 x 9.5 |
| 6. | 76067498 | [1] | INSULATING PANEL | LEC |
| 7. | 87400691 | [1] | PANEL | BUR |
| 8. | 87400692 | [1] | PANEL | BUR |
| 9. | 76067491 | [1] | INSULATING PANEL | LEC |
| 10. | 76067707 | [1] | PLUG | LEC |
| 11. | 76045791 | [1] | POWER SOCKET | LEC12V Receptacle Superseded by part number: 71485201 |
| 12. | 76067229 | [1] | DECAL | LEC12V |
| 13. | 71483881 | [2] | KIT | LECLoudspeaker Superseded by part number: 1482309 |
| 14. | 71490900 | [2] | KIT | LECLoudspeaker Grille Superseded by part number: 1482306 |
| 15. | 71485200 | [8] | SPRING | LECNut |
| 16. | 76043518 | [8] | SCREW,M4.2 x 13mm | LEC |
