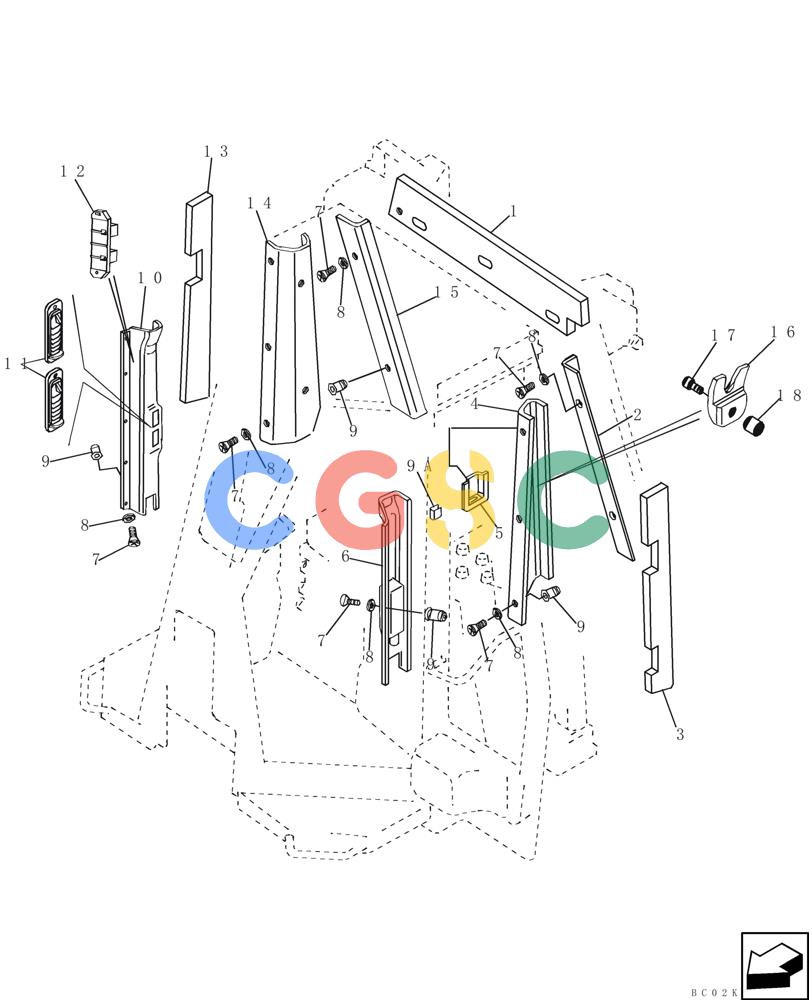

纽荷兰零件查询(DC75) - CRAWLER DOZER (8/04-) (09-32) - CAB - COVERS, INTERIOR POSTS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
946 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76301025 | [1] | PANEL | BURUpper Rear |
| 2. | 76067333 | [1] | SOFT TRIM | LECLeft-Hand Rear |
| 3. | 87400693 | [1] | PANEL | BURCenter, Left-Hand |
| . . | 87400885 | [1] | COVER ASSY | BURCenter, Left-Hand; Incl. Ref 4, 5 |
| 4. | NSS | [1] | NOT SERVICED SEPARATELY | CONCover |
| 6. | 87400841 | [1] | PROTECTIVE COVER | BURCover; Front, Left-Hand |
| 7. | 79105220 | [35] | SCREW,Phillips Drive, Oval HD, M6 x 20mm | IMO |
| 8. | 79076208 | [35] | WASHER | LECNylon, Black |
| 9. | 15629711 | [27] | THREADED INSERT | BURM6 x 9.5 |
| 9A. | 76067735 | [4] | THREADED INSERT | LECNut |
| 10. | 87400842 | [1] | PROTECTIVE COVER | BURCover; Front, Right-Hand |
| 11. | 76079036 | [4] | VENT | LECLouvers |
| 12. | 87400706 | [2] | CONTACT | BURDoor Contact for Wipers |
| 13. | 87400694 | [1] | PANEL | BURCenter, Right-Hand |
| 14. | 87400887 | [1] | GUARD | BURCenter, Right-Hand |
| 15. | 76067334 | [1] | SOFT TRIM | LECRight-Hand Rear |
| 16. | 76067422 | [1] | COAT HOOK | LEC |
| 17. | 13274417 | [2] | SCREW,Pozidriv Pan Hd, M5 x 20mm, Cl 5.8 | LEC Superseded by part number: 86511827 |
| 18. | 15629611 | [2] | THREADED INSERT | LECM5 |
