纽荷兰零件查询(DC75) - CRAWLER DOZER (8/04-) (09-33) - CAB - COVERS, INTERIOR ROOF AND FLOOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
593 次

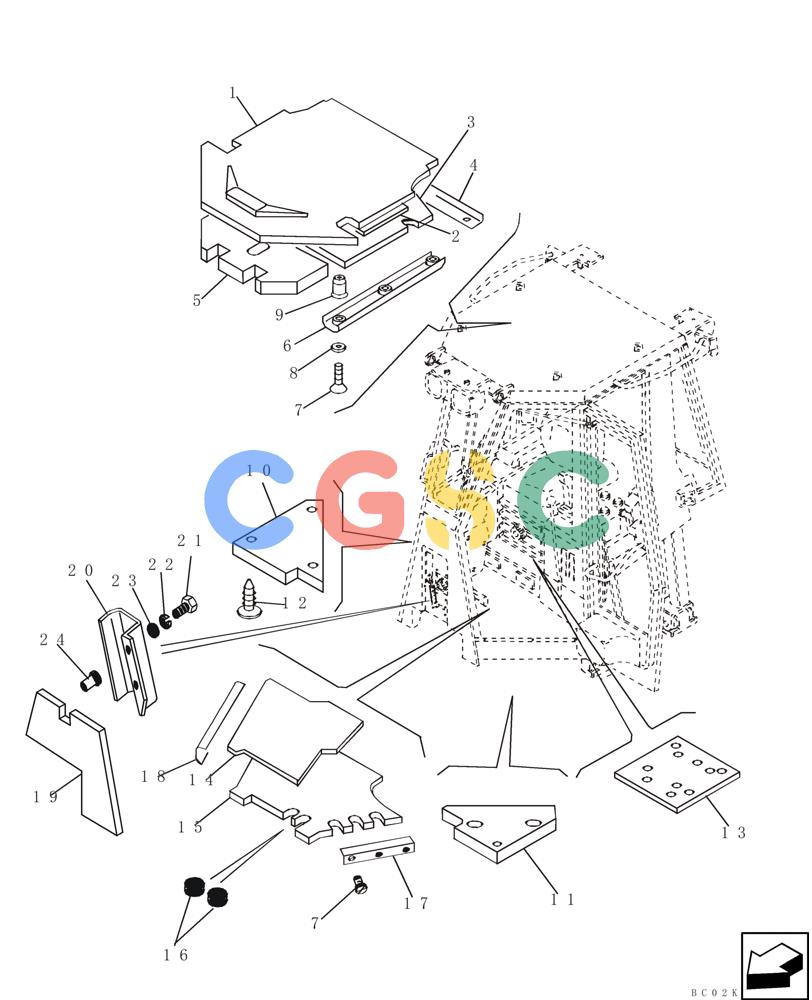

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76067328 | [1] | SOFT TRIM | LECUpper Cover |
| 2. | 76067493 | [1] | INSULATING PANEL | LEC |
| 3. | 76067494 | [1] | INSULATING PANEL | LEC |
| 4. | 76067478 | [1] | RETAINER | LECRear |
| 5. | 87400690 | [1] | PANEL | BURFront |
| 6. | 76067634 | [2] | RETAINER | LEC |
| 7. | 79105220 | [26] | SCREW,Phillips Drive, Oval HD, M6 x 20mm | IMO |
| 8. | 79076208 | [20] | WASHER | LECNylon, Black |
| 9. | 15629711 | [15] | THREADED INSERT | BURM6 x 9.5 |
| 10. | 76067534 | [1] | INSULATING PANEL | LECOuter, Right-Hand |
| 11. | 87400681 | [1] | TRIM PANEL | BUROuter, Left-Hand |
| 12. | 76048381 | [4] | BUTTON | LEC Superseded by part number: 1493629 |
| 13. | 87400689 | [1] | PANEL | BURBelow Seat |
| 14. | 76067553 | [1] | FLOOR MAT | LEC |
| 15. | 76067971 | [1] | MAT | LECMat |
| 16. | 76045509 | [2] | GROMMET | LECGrommet |
| 17. | 76067049 | [1] | RETAINER | LECLeft-Hand |
| 18. | 76067050 | [1] | RETAINER | LECRight-Hand |
| 19. | 76067506 | [1] | INSULATING PANEL | LECBelow Front Console |
| 20. | 87400718 | [1] | GUARD | BURBelow Front Console |
| 21. | 13276211 | [2] | SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd | LEC Superseded by part number: 190003820005 |
| 22. | 12035670 | [2] | LOCK WASHER | TTFM6 Superseded by part number: 86517328 |
| 23. | 14496431 | [2] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
| 24. | 71490914 | [2] | THREADED INSERT,M6 | LEC |
