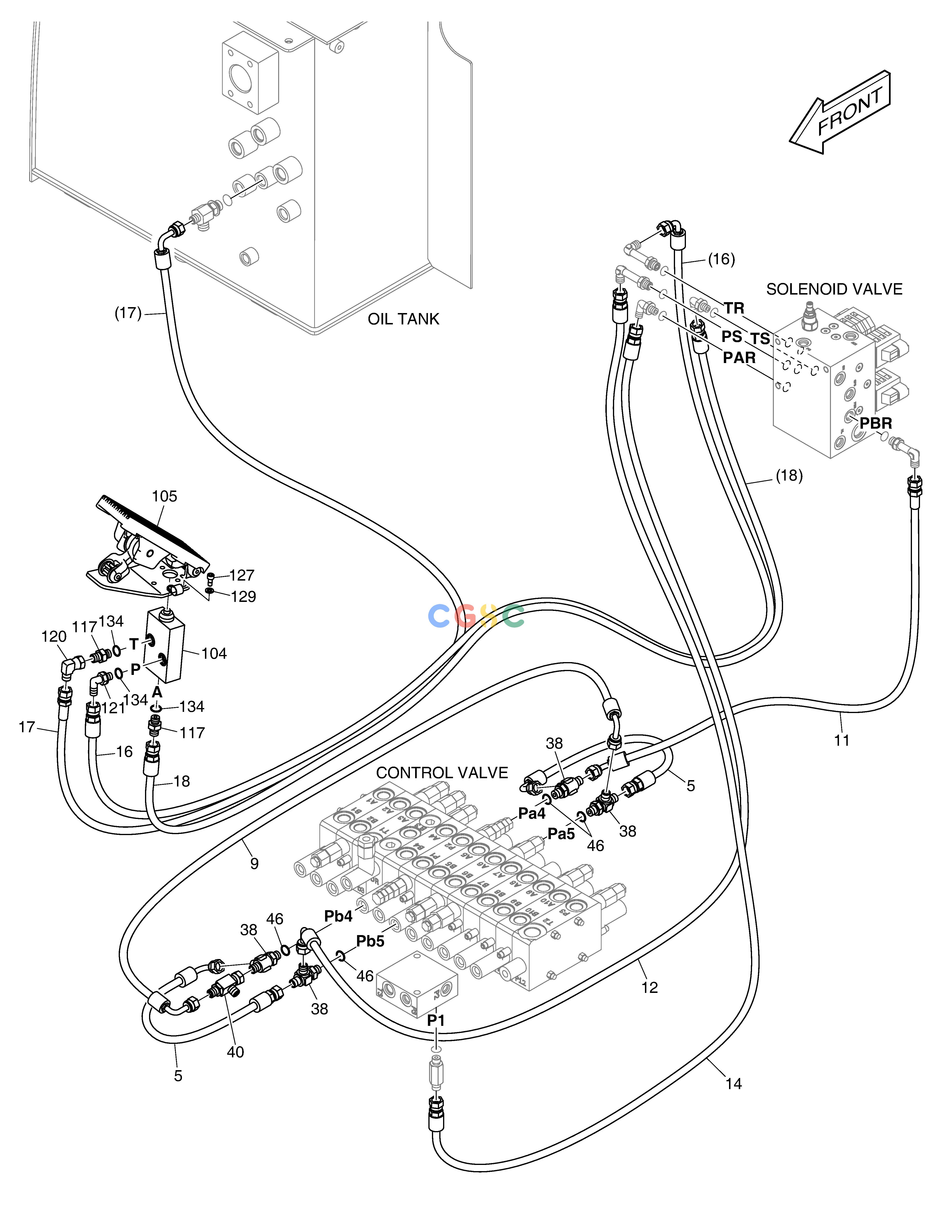

斗山零件查询PILOT PIPING(4) - PEDAL VALVE E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
548 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09579
|
[-] |
|
|
| 104. |
K1045016A
|
[1] |
VALVE;PEDAL
|
|
| 105. |
K1007119
|
[1] |
PEDAL;ACCELERATOR
|
|
| 11. |
DS2092304
|
[1] |
|
|
| 117. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 12. |
DS2093376
|
[1] |
HOSE
|
|
| 120. |
181-00709
|
[1] |
ELBOW;UNION
|
|
| 121. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 127. |
S2204566
|
[5] |
BOLT
|
|
| 129. |
S5010316
|
[5] |
|
|
| 134. |
S8000111
|
[3] |
O-RING
|
|
| 14. |
DS2094221
|
[1] |
HOSE
|
|
| 16. |
DS2093939
|
[1] |
|
|
| 17. |
DS2093595
|
[1] |
HOSE
|
|
| 18. |
DS2094150
|
[1] |
HOSE
|
|
| 38. |
2181-1951D1
|
[4] |
TEE
|
|
| 40. |
K1050372
|
[1] |
VALVE;SHUTTLE
|
|
| 46. |
S8000111
|
[4] |
O-RING
|
|
| 5. |
DS2093280
|
[2] |
HOSE
|
|
| 9. |
DS2091050
|
[1] |
HOSE
|
|
