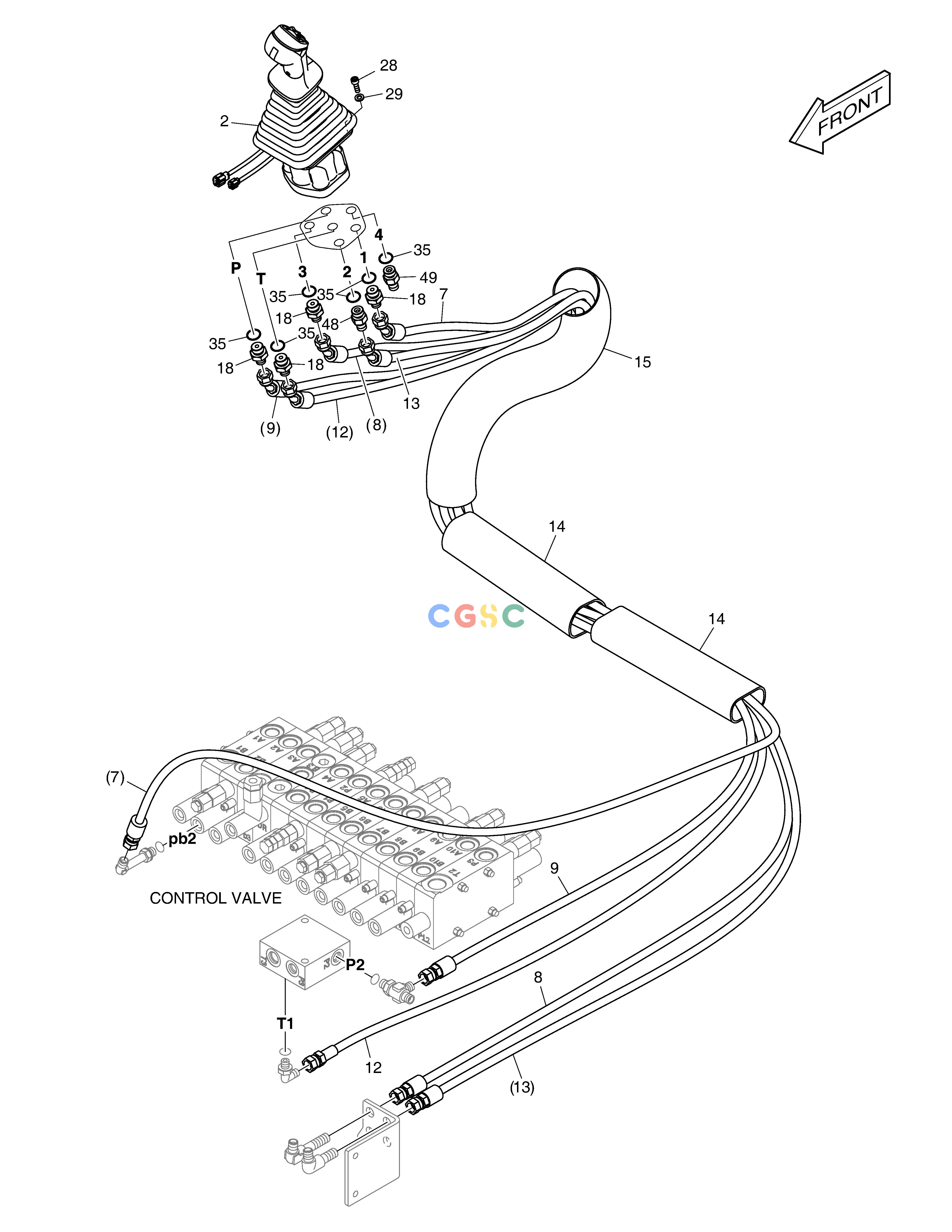

斗山零件查询PILOT PIPING(5) - JOYSTICK(R.H) E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
688 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09586H
|
[-] |
|
|
| 12. |
DS2092013
|
[1] |
HOSE ASSY,HYDRAULIC
|
|
| 13. |
DS2092041
|
[1] |
HOSE
|
|
| 14. |
111004-00045
|
[2] |
|
|
| 15. |
111004-00044
|
[1] |
|
|
| 18. |
2181-1126D36
|
[4] |
ADAPTER
|
|
| 2. |
410113-00197E
|
[1] |
|
|
| 28. |
S2204866
|
[4] |
BOLT
|
|
| 29. |
S5010316
|
[4] |
|
|
| 35. |
S8000141
|
[6] |
O-RING
|
|
| 48. |
181-00144D41
|
[1] |
ADAPTER
|
|
| 49. |
181-00144D45
|
[1] |
|
|
| 7. |
DS2092252
|
[1] |
HOSE ASSY,HYDRAULIC
|
|
| 8. |
DS2092049
|
[1] |
|
|
| 9. |
DS2092243
|
[1] |
HOSE
|
|
