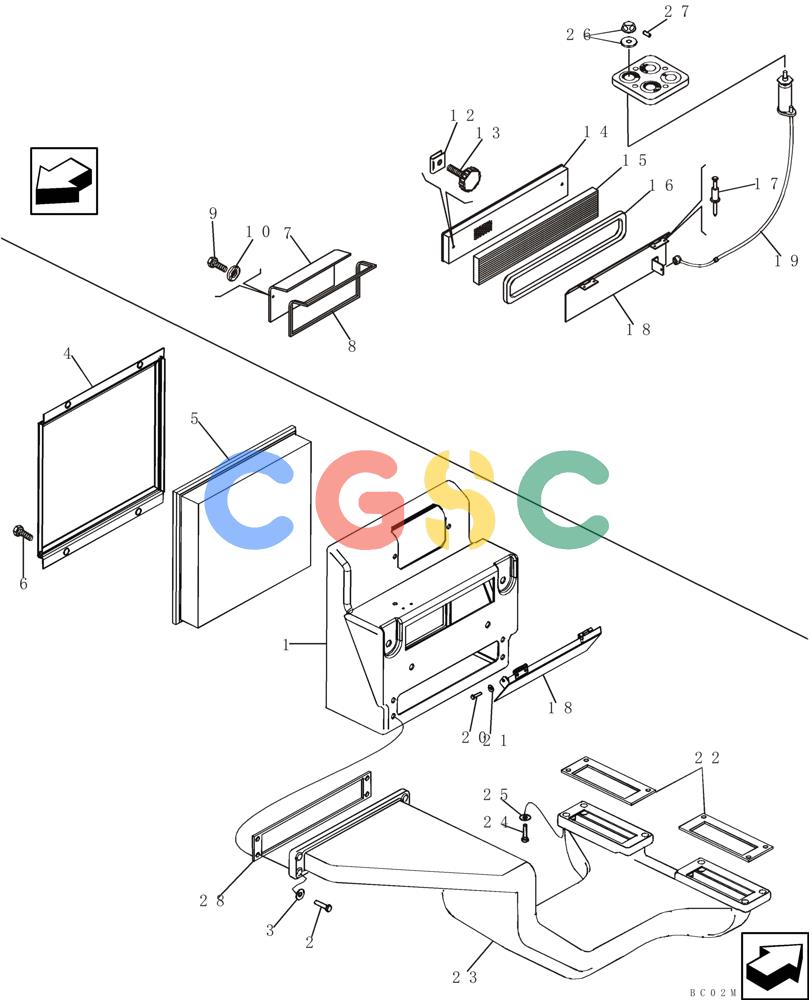

纽荷兰零件查询(DC75) - CRAWLER DOZER (8/04-) (09-39) - CAB - HEATER SHROUD AND FILTERS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
537 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87400639 | [1] | SHROUD | BURHeater Shroud |
| 2. | 16043224 | [4] | BOLT,Hex, M8 x 16mm, Cl 8.8 | NH |
| 3. | 76067742 | [4] | WASHER | LEC8 mm |
| 4. | 76067304 | [1] | BEZEL | LEC |
| 5. | 76067303 | [1] | CAB FILTER | LECAir Cleaner |
| 6. | 76067785 | [4] | PIN | LEC |
| . . | 76067786 | [4] | BUSHING | LEC |
| . . | 71485253 | [8] | RIVET | LEC3 x 10 |
| 7. | 76067455 | [1] | PLATE | LEC |
| 8. | 76067457 | [1] | SEAL | LEC |
| 9. | 76043518 | [2] | SCREW,M4.2 x 13mm | LEC |
| 10. | 14496331 | [2] | WASHER,M5.3 x 10 x 1 Thk | LEC Superseded by part number: 14496321 |
| 11. | 71485276 | [2] | SPRING NUT | LECNut; Not Illustrated |
| 12. | 76047274 | [1] | NUT,M6 x 1 | LEC |
| 13. | 154227213 | [2] | KNOB | LEC |
| 14. | 76067300 | [1] | GRILLE | LEC |
| 15. | 76067299 | [1] | CAB FILTER | LEC |
| 16. | 76067807 | [1] | SEAL | LEC |
| 18. | 76067282 | [1] | PANEL | LECDoor |
| 19. | 76079184 | [1] | CABLE | LECRecirculation Open/Close |
| 20. | 13272214 | [1] | SCREW,Pozidriv Pan Hd, M4 x 16mm, Cl 5.8, Full Thd | TTF |
| 21. | 86625075 | [1] | NUT,M4 x 0.7, Cl 8 | FAR |
| 22. | 87400709 | [2] | SEAL | BUR |
| 23. | 87400640 | [1] | AIR DUCT | BURAir Duct |
| 24. | 16043924 | [10] | BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd | TTF |
| 26. | 76043653 | [1] | KNOB | LECRecirculation |
| 27. | 13795820 | [1] | INSERT | BURM4 x 14 Dowel Pin |
| 28. | 87400708 | [1] | SEAL | BUR |
