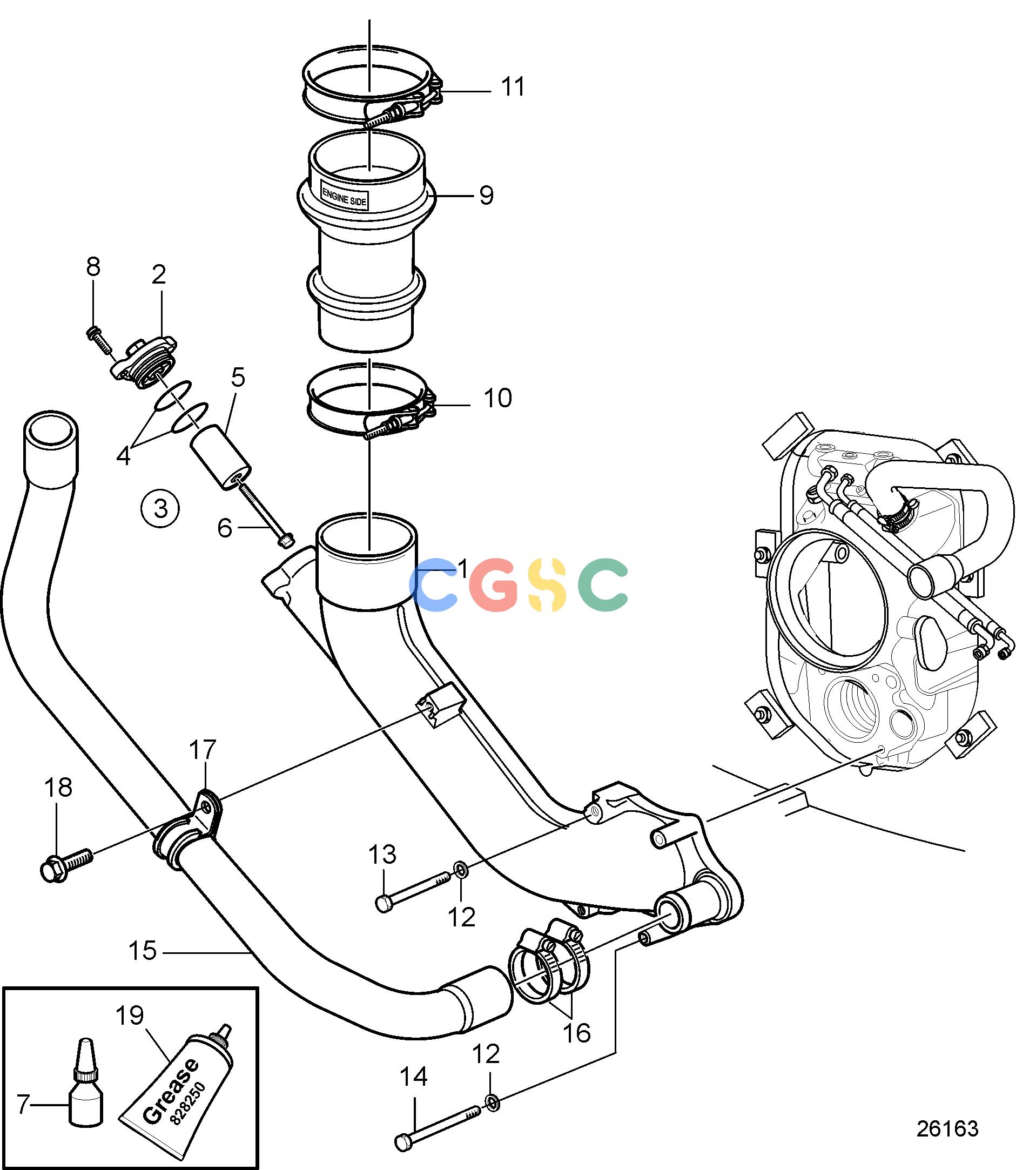

沃尔沃零件查询D6-280A-A; D6-280A-B; D6-280A-C; D6-280A-D; D6-280A-E; D6-280I-A; D6-280I-B; D6-280I-C; D6-280I-D; D6-280I-E; D6-310I-A; D6-310A-A; D6-310A-TransmissionsExhaust Pipe and Cooling Water Pipe DPH/DPR Drive Unit, ExtendedEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
433 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21698559
|
[1] |
Exhaust pipe
|
|
| 2. |
21700007
|
[1] |
Cover
|
|
| 3. |
21868040
|
[1] |
Anode kit, zinc
|
|
| 3. |
21868041
|
[1] |
Anode kit, magnesium
|
|
| 3. |
21868042
|
[1] |
Anode kit, aluminum
|
|
| 4. |
976042
|
[2] |
O-ring
|
|
| 5. |
|
|
|
|
| 6. |
981497
|
[1] |
Flange screw
|
|
| 7. |
1161053
|
[1] |
Locking fluid
|
|
| 8. |
984257
|
[2] |
Six point socket scr
|
|
| 9. |
3584168
|
[1] |
Exhaust hose
|
|
| 10. |
3817485
|
[1] |
Hose clamp
|
|
| 11. |
3817486
|
[1] |
Hose clamp
|
|
| 12. |
984391
|
[4] |
Washer
|
|
| 13. |
984367
|
[2] |
Hexagon screw
|
L=70mm
|
| 14. |
984700
|
[2] |
Hexagon screw
|
L=90mm
|
| 15. |
21511542
|
[1] |
Hose
|
|
| 16. |
961671
|
[2] |
Hose clamp
|
|
| 17. |
984474
|
[1] |
Clamp
|
|
| 18. |
948746
|
[1] |
Flange screw
|
|
| 19. |
828250
|
[1] |
Lubricating grease
|
|
