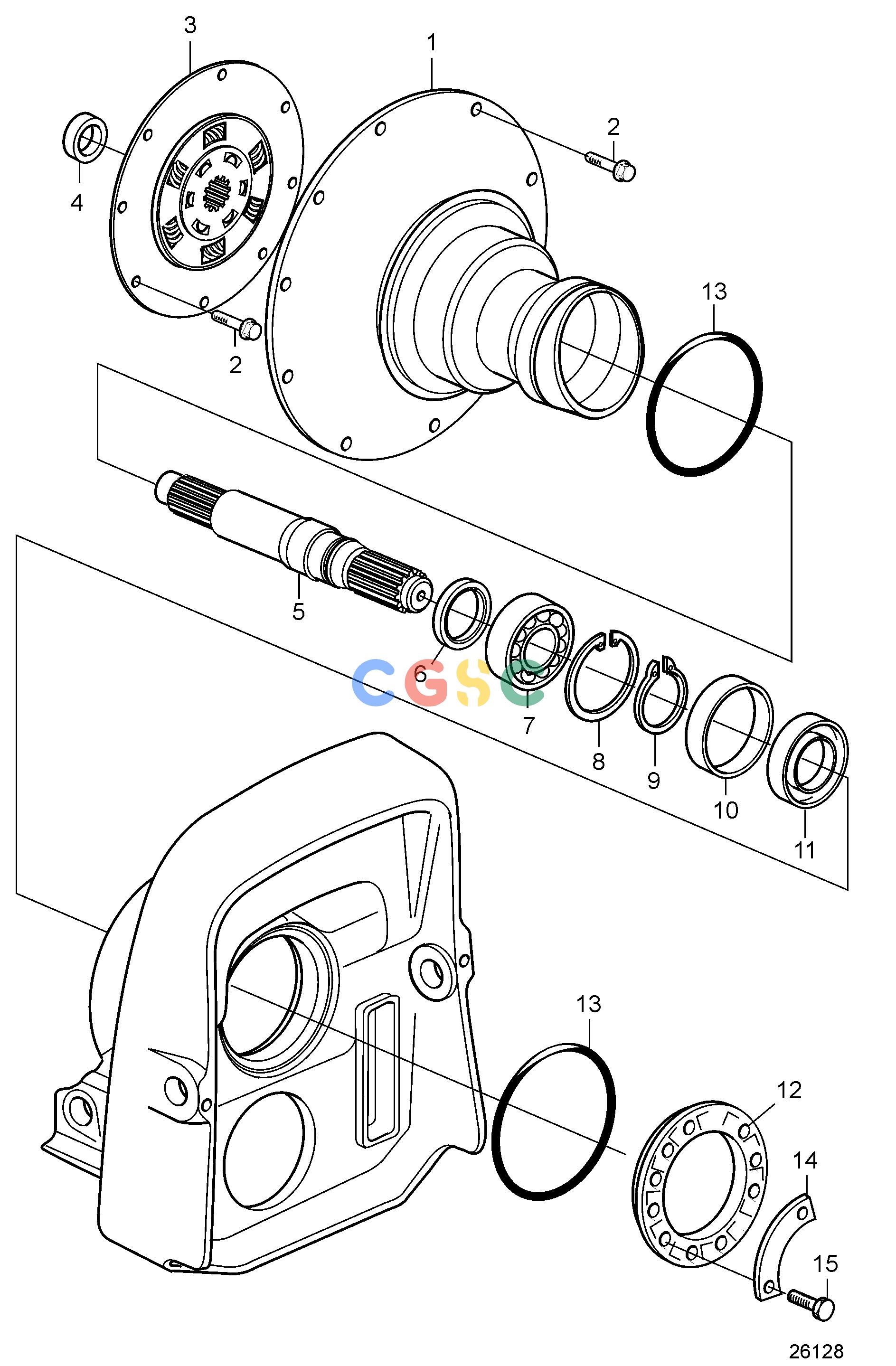

沃尔沃零件查询D6-280A-A; D6-280A-B; D6-280A-C; D6-280A-D; D6-280A-E; D6-280I-A; D6-280I-B; D6-280I-C; D6-280I-D; D6-280I-E; D6-310I-A; D6-310A-A; D6-310A-TransmissionsFlywheel Housing and Primary ShaftEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
168 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21201104
|
[1] |
Flywheel housing
|
(3589844)
|
| 2. |
946752
|
[18] |
Flange screw
|
L=35mm
|
| 3. |
3886887
|
[1] |
Flexible coupling
|
|
| 4. |
888264
|
[1] |
Bushing
|
|
| 5. |
21324794
|
[1] |
Shaft
|
|
| 6. |
6842273
|
[1] |
Lip seal
|
|
| 7. |
184841
|
[1] |
Ball bearing
|
|
| 8. |
914533
|
[1] |
Snap ring
|
|
| 9. |
914462
|
[1] |
Snap ring
|
|
| 10. |
888545
|
[1] |
Bearing bushing
|
|
| 11. |
958860
|
[1] |
Sealing ring
|
|
| 12. |
873048
|
[1] |
Clamping ring
|
|
| 13. |
804190
|
[2] |
Rubber ring
|
|
| 14. |
806624
|
[3] |
Striker plate
|
|
| 15. |
191844
|
[6] |
Hexagon screw
|
|
