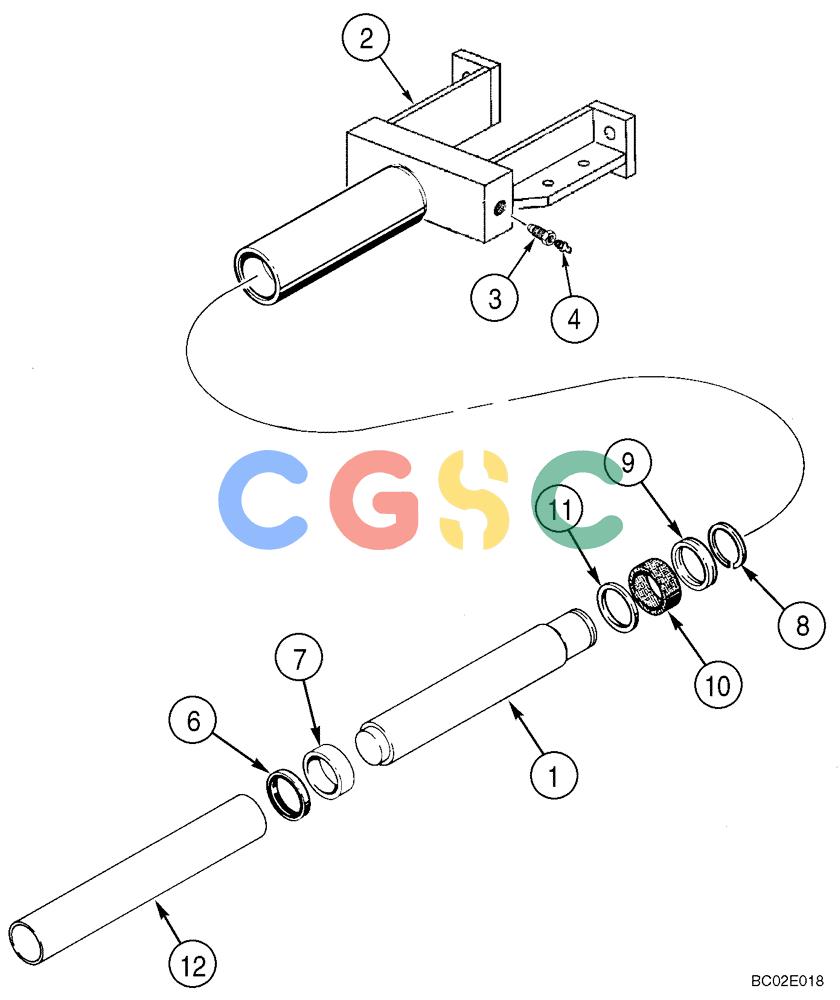

纽荷兰零件查询(DC75) - CRAWLER DOZER (8/04-) (05-05) - TRACK ADJUSTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
684 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 435383A1 | [1] | YOKE | CASAdjuster; Right-Hand; Incl. Ref 1, 2, 3 - 11 |
| . . | 435384A1 | [1] | YOKE | CASAdjuster; Left-Hand; Incl. Ref 1, 2A, 3 - 11 |
| 1. | 345091A1 | [1] | PISTON | CAS |
| 2. | 435378A1 | [1] | YOKE | BURRight-Hand |
| 2A. | 435379A1 | [1] | YOKE | BURLeft-Hand |
| 3. | D35287 | [1] | CHECK VALVE,5/8" - 18 | CASCheck |
| 4. | 219-1 | [1] | LUBE NIPPLE,1/8"-27 x .66 lg | CAS1/8 PT x 21/32 Superseded by part number: 80710 |
| 6. | D95149 | [1] | PACKING RING,60.24mm ID x 73.05mm OD x 7.92mm Thk | CAS |
| 7. | D30374 | [1] | RING,60.43mm ID x 73.15mm OD x 25.4mm L | CASWear |
| 8. | 101-11212 | [1] | SNAP RING,#212, 1.997", Ext | CAS |
| 9. | R25706 | [1] | SEAL,53.9mm ID x 66.75mm OD x 10.69mm Thk | CAS |
| 10. | R25663 | [1] | BUSHING,53.98mm ID x 66.62mm OD x 25.4mm L | CAS |
| 11. | R30202 | [1] | RING,54.101mm ID x 65.1mm OD x 5.08mm Thk | CASBackup |
| 12. | 429594A1 | [2] | TUBE | CASNot Included In Assembly, Purchase Separately |
