纽荷兰零件查询(DC75) - CRAWLER DOZER (8/04-) (05-06) - TRACK IDLER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
136 次

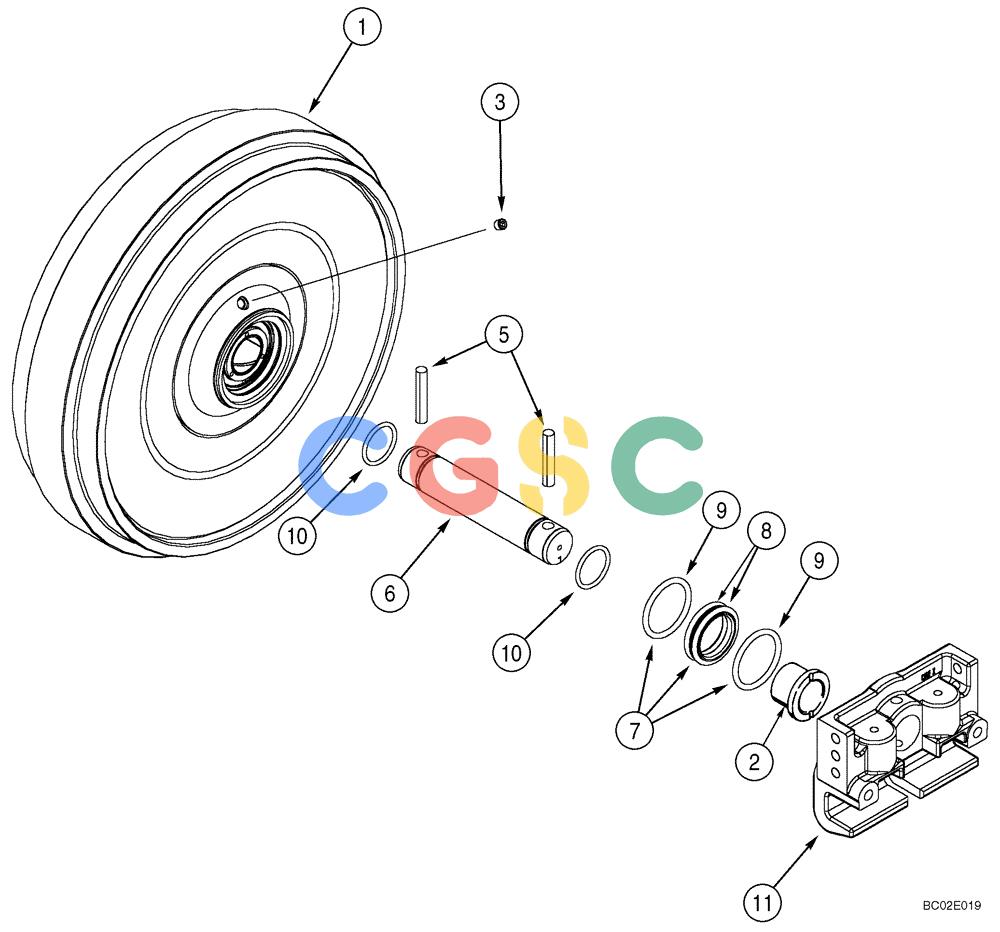

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 87353988 | [2] | IDLER | BURIDLER, FRONT, Incl. Ref 1 - 11; Replaces 86987743; Not Available As An Assembly, Order Components |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONHub; Incl. Ref 2; Order 86987743 |
| 2. | 389168A1 | [2] | BUSHING | BUR |
| 3. | R33557 | [1] | PLUG | CAS Superseded by part number: J2537437 |
| 5. | R58807 | [2] | GROOVED PIN,1/2" x 2 3/4", Type A, Hardened | CAS1/2" x 2 3/4", Type A, Hardened |
| 6. | R58706 | [1] | SHAFT | CAS |
| 7. | R33607 | [2] | SEAL | CASIncl. Ref 8, 9 Superseded by part number: D8846056 |
| 9. | N6847 | [2] | O-RING,75mm ID x 8mm Width | CASFace Seal |
| 10. | 238-5222 | [2] | O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro | CAS Superseded by part number: 14464080 |
| 11. | 389174A2 | [2] | BRACKET | CAS |
