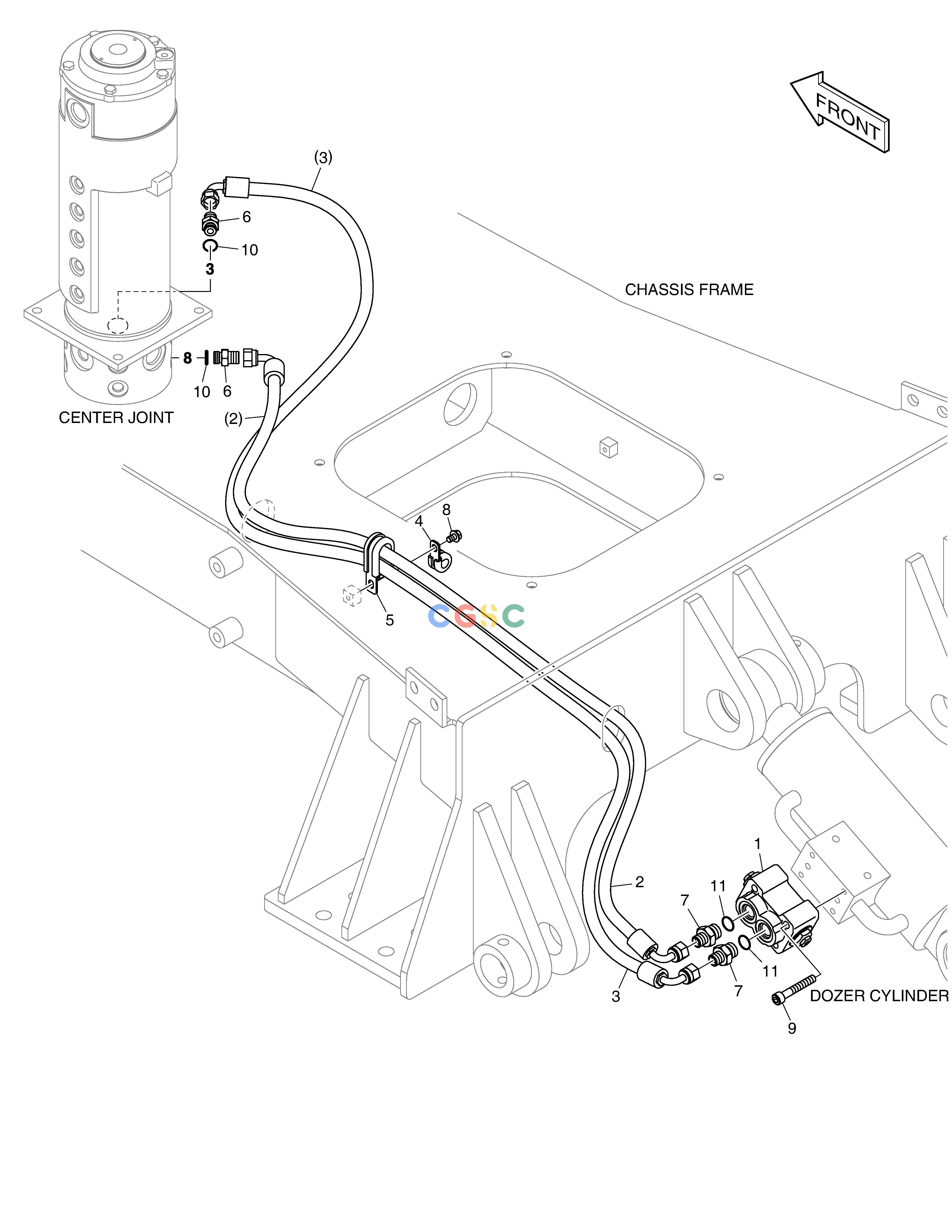

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 420212-09740 | [-] | ||
| 1. | K1037937A | [1] | VALVE;DOZER CHECK | |
| 10. | S8000141 | [2] | O-RING | |
| 11. | S8000181 | [2] | O-RING | |
| 2. | DS2059557 | [1] | HOSE | |
| 3. | DS2059585 | [1] | ||
| 4. | 124-00208D2 | [1] | CLAMP | |
| 5. | 124-00209D2 | [1] | CLIP | |
| 6. | 2181-1126D7 | [2] | ADAPTER | |
| 7. | 2181-1126D23 | [2] | ADAPTER | |
| 8. | K1001029 | [1] | BOLT | |
| 9. | S2212966 | [4] | BOLT;SOCKET M10X1.5X65 |
