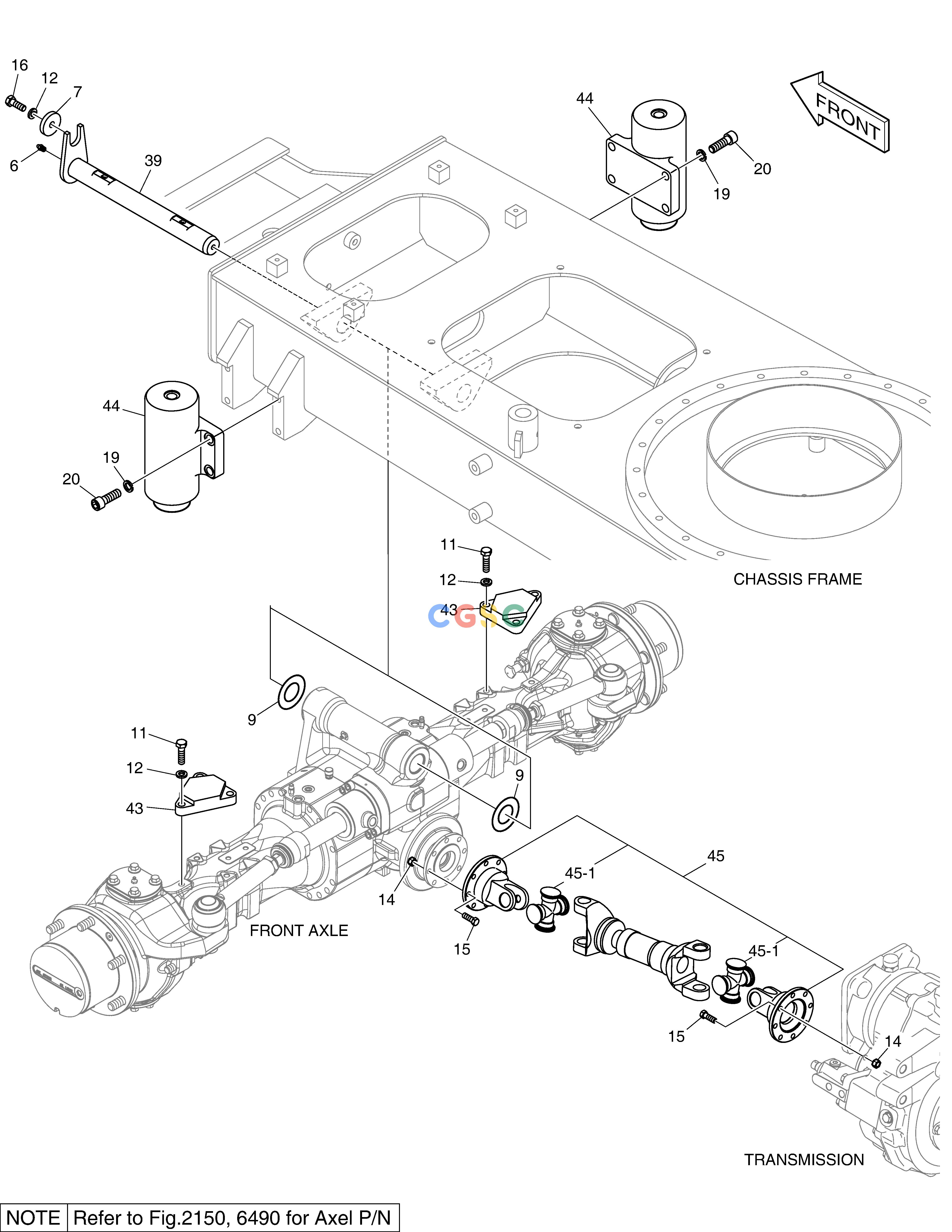

斗山零件查询POWER TRAIN - FRONT E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
952 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
130809-00100
|
[1] |
|
|
| 11. |
S0560566
|
[6] |
BOLT
|
|
| 12. |
120804-00077
|
[7] |
WASHER
|
|
| 14. |
2121-1251A
|
[16] |
NUT
|
|
| 15. |
K1006985
|
[16] |
BOLT
|
|
| 16. |
S0515366
|
[1] |
BOLT
|
|
| 19. |
K1026273
|
[8] |
WASHER;HARD
|
|
| 20. |
S2221666
|
[8] |
BOLT;SOCKET
|
|
| 39. |
120501-01232-L
|
[1] |
|
|
| 43. |
250107-00224A-L
|
[2] |
|
|
| 44. |
K1024542-L
|
[2] |
CYLINDER;CHOCKING
|
|
| 45. |
K1027044-L
|
[1] |
SHAFT;PROPELLER(FRONT)
|
|
| 45-1. |
K9006319
|
[2] |
JOINT;UNIVERSAL
|
|
| 6. |
S6710042
|
[1] |
NIPPLE;GREASE
|
|
| 7. |
DS0401258
|
[1] |
|
|
| 9. |
2114-1059D183
|
[2] |
SHIM
|
|
