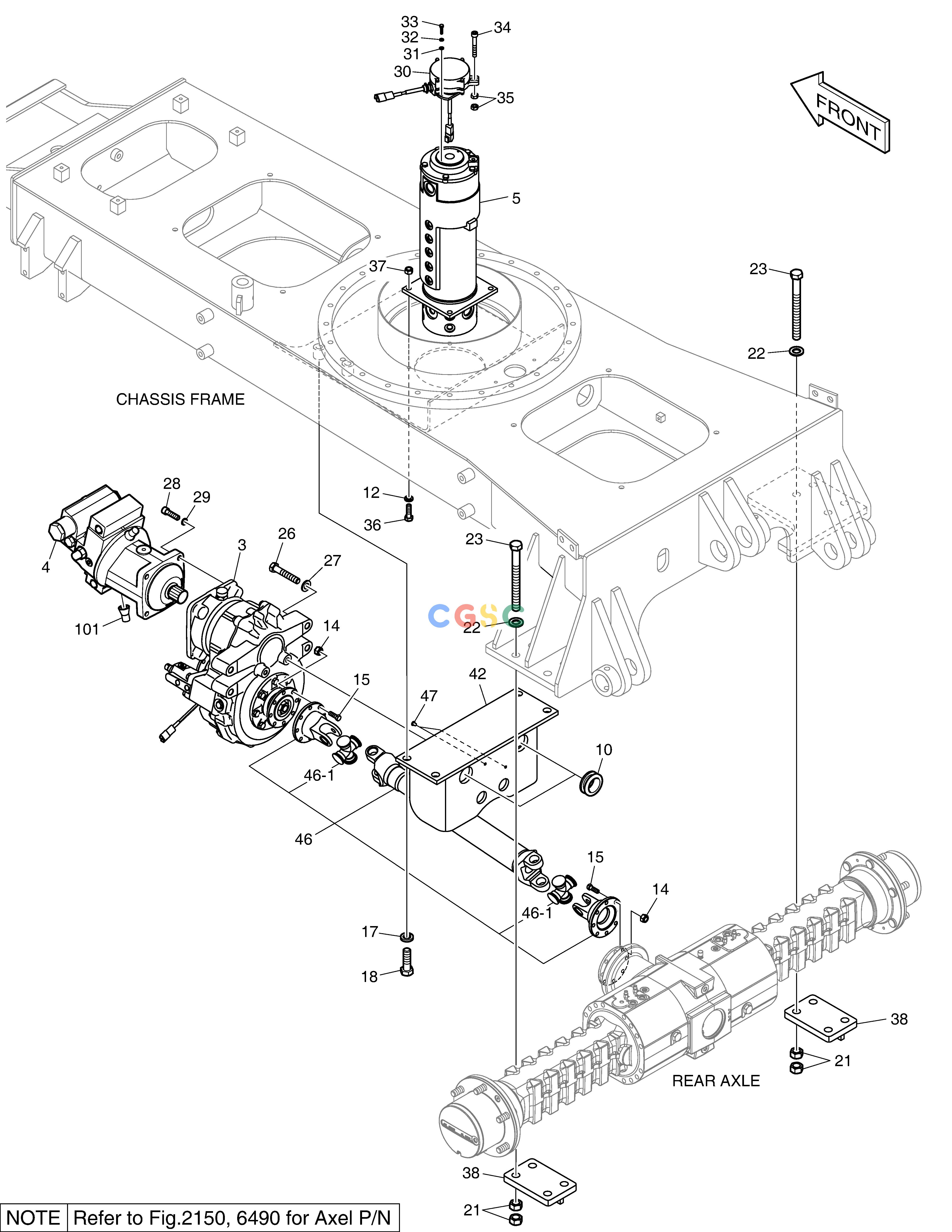

斗山零件查询POWER TRAIN - REAR E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
604 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
130809-00100
|
[-] |
|
|
| 10. |
DS7603059
|
[2] |
BUSHING;RUBBER
|
|
| 101. |
110910-01625
|
[1] |
|
|
| 12. |
120804-00077
|
[4] |
WASHER
|
|
| 14. |
2121-1251A
|
[16] |
NUT
|
|
| 15. |
K1006985
|
[16] |
BOLT
|
|
| 17. |
K1014252
|
[4] |
WASHER;HARDEN
|
|
| 18. |
S0570166
|
[4] |
BOLT M20X2.5X65
|
|
| 21. |
S4013133
|
[16] |
NUT
|
|
| 22. |
2114-9012A
|
[8] |
WASHER
|
|
| 23. |
120-00145A
|
[8] |
BOLT
|
|
| 26. |
S0565966
|
[4] |
BOLT
|
|
| 27. |
2114-1816A
|
[4] |
WASHER
|
|
| 28. |
S2215566
|
[4] |
BOLT;SOCKET
|
|
| 29. |
S5020716
|
[4] |
|
|
| 3. |
K1025504
|
[1] |
TRANSMISSION
|
|
| 30. |
111103-00024A
|
[1] |
|
|
| 30. |
K1025544A
|
[1] |
RING;SLIP
|
111103-00024A
|
| 31. |
S5000213
|
[2] |
. WASHER
|
|
| 32. |
S5100203
|
[2] |
WASHER
|
|
| 33. |
S0503363
|
[2] |
|
|
| 34. |
S2213066
|
[1] |
BOLT;SOCKET M10X1.5X70
|
|
| 35. |
S4012633
|
[2] |
NUT
|
|
| 36. |
S0560566
|
[4] |
BOLT
|
|
| 37. |
2121-9019
|
[4] |
NUT;LOCK
|
|
| 38. |
621-00506B-L
|
[2] |
PLATE
|
|
| 4. |
170403-00081
|
[1] |
|
|
| 42. |
110428-00001B-L
|
[1] |
|
110428-00001C-L
|
| 42. |
110428-00001C-L
|
[1] |
|
|
| 46. |
K1027046-L
|
[1] |
SHAFT;PROPELLER(REAR)
|
|
| 46-1. |
K9006319
|
[2] |
JOINT;UNIVERSAL
|
|
| 47. |
110910-00037A
|
[2] |
CAP
|
|
| 5. |
400826-00019
|
[1] |
|
|
