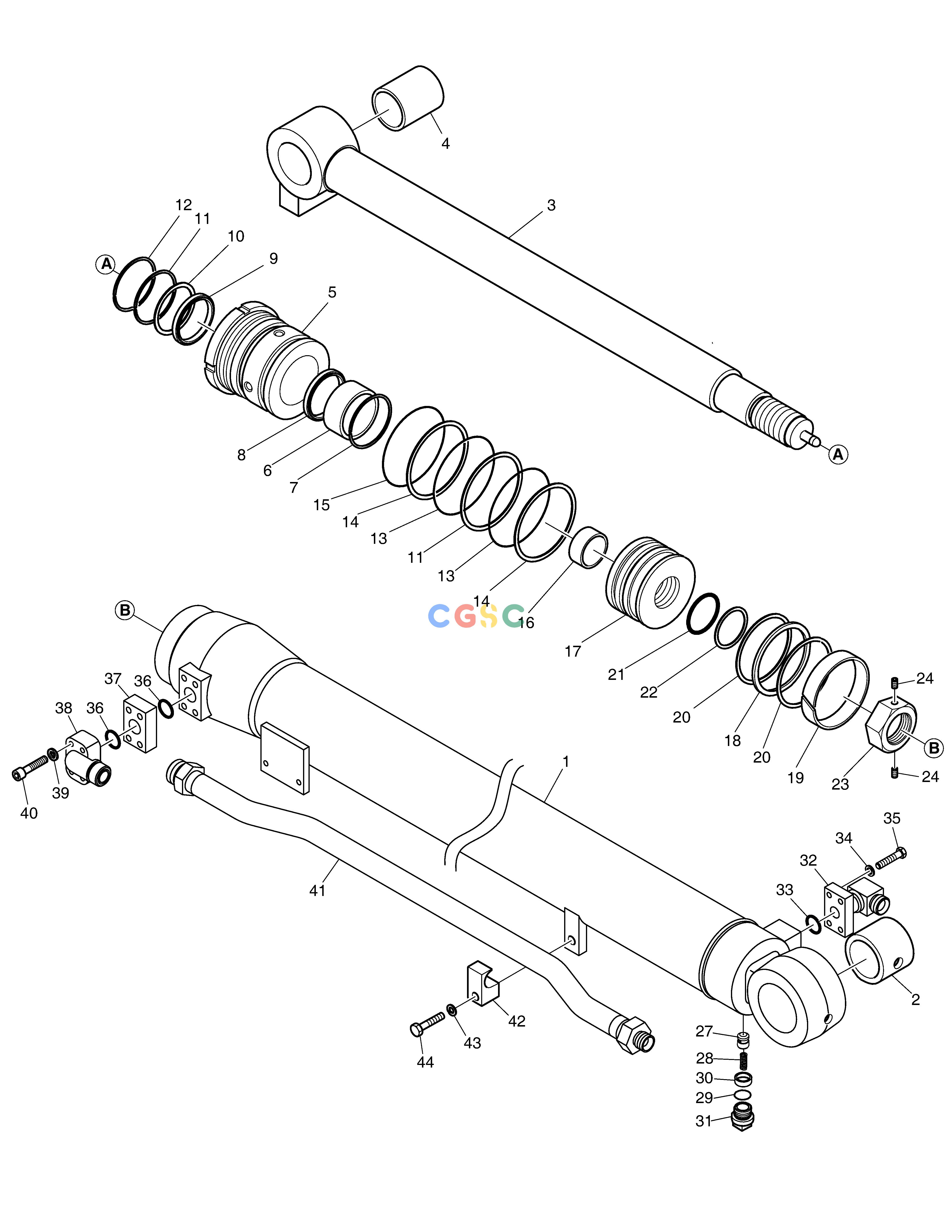

斗山零件查询ARM CYLINDER - LOCK VALVE E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
170 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-01864
|
[1] |
SEAL KIT,CYLINDER;ARM
|
|
| -. |
400305-00389E-L
|
[1] |
|
|
| 1. |
420406-01955-L
|
[1] |
|
|
| 10. |
111102-00126
|
[1] |
RING,BACK UP
|
|
| 11. |
1.180-00506
|
[1] |
WIPER;DUST
|
|
| 12. |
1.115-00060
|
[1] |
RING;RETAINING
|
|
| 13. |
S8010801
|
[2] |
O-RING
|
|
| 14. |
111102-00119
|
[3] |
RING,BACK UP
|
|
| 15. |
401002-01172
|
[1] |
RING,O
|
|
| 16. |
1.115-00222
|
[1] |
RING;CUSHION
|
|
| 17. |
130602-01453
|
[1] |
PISTON
|
|
| 18. |
401107-01413
|
[1] |
SEAL,BUFFER
|
|
| 19. |
1.180-00440
|
[1] |
RING;WEAR
|
|
| 2. |
131008-00100
|
[1] |
|
|
| 20. |
K9005863
|
[2] |
RING;DUST
|
|
| 21. |
S8010401
|
[1] |
O-RING
|
|
| 22. |
NA00940
|
[2] |
BAGUE,SAUVEGARDER
|
|
| 23. |
120304-00019
|
[1] |
NUT;PISTON
|
|
| 24. |
S3523836
|
[2] |
SCREW;SET
|
|
| 27. |
1.421-00029
|
[1] |
VALVE;CHECK
|
|
| 28. |
1.131-00009
|
[1] |
SPRING
|
|
| 29. |
1.195-00022
|
[1] |
SUPPORT;SPRING
|
|
| 3. |
400337-00996-L
|
[1] |
|
|
| 30. |
S8000141
|
[1] |
O-RING
|
|
| 31. |
430221-01153
|
[1] |
|
|
| 32. |
430215-01407-L
|
[1] |
|
|
| 33. |
S8000241
|
[1] |
O-RING
|
|
| 34. |
S5100503
|
[4] |
WASHER
|
|
| 35. |
120107-00124
|
[4] |
BOLT,SOCKET
|
|
| 36. |
S8000281
|
[2] |
O-RING
|
|
| 37. |
110951-01903-L
|
[1] |
|
|
| 38. |
430215-01518-L
|
[1] |
|
|
| 39. |
S5100603
|
[4] |
WASHER
|
|
| 4. |
131008-00100
|
[1] |
|
|
| 40. |
S2213061
|
[4] |
BOLT;SOCKET M10X1.5X70
|
|
| 41. |
420210-02456-L
|
[1] |
|
|
| 42. |
K9003968-L
|
[1] |
|
|
| 43. |
S5100703
|
[1] |
WASHER;SPRING
|
|
| 44. |
S0561053
|
[1] |
BOLT
|
|
| 5. |
110508-24018-L
|
[1] |
|
|
| 6. |
131002-00081
|
[1] |
BUSHING
|
|
| 7. |
K9005865
|
[1] |
RING;RETAINING
|
|
| 8. |
401107-01716
|
[1] |
SEAL,BUFFER
|
|
| 9. |
400606-00897
|
[1] |
PACKING,U
|
|
