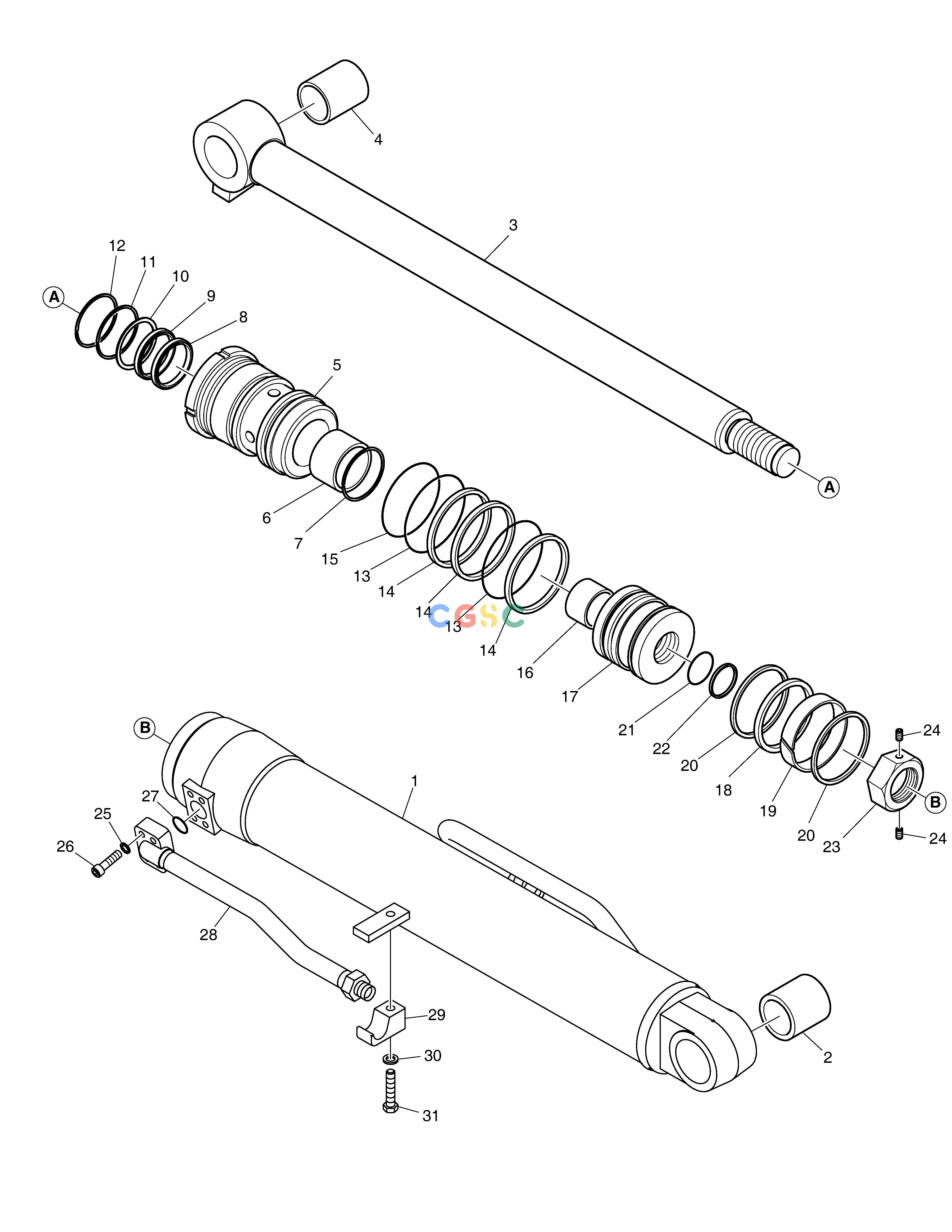

斗山零件查询BOOM CYLINDER - WITH COVER(LOCK V/V) E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
271 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-01865
|
[1] |
SEAL KIT,CYLINDER;BOOM
|
|
| -. |
400309-00571G-L
|
[1] |
|
|
| 1. |
420406-01956-L
|
[1] |
|
|
| 10. |
NA03258
|
[1] |
BACK UP RING
|
|
| 11. |
115-00107
|
[1] |
WIPER;DUST
|
|
| 12. |
115-00104
|
[1] |
RING,RETAINING
|
|
| 13. |
S8011051
|
[2] |
O-RING
|
|
| 14. |
1.180-00225
|
[3] |
RING;BACK UP
|
|
| 15. |
S8011101
|
[1] |
O-RING
|
|
| 16. |
1.115-00223
|
[1] |
RING;CUSHION
|
|
| 17. |
130602-01451
|
[1] |
PISTON
|
|
| 18. |
K9001389
|
[1] |
SEAL;SLIPPER
|
|
| 19. |
1.180-00634
|
[1] |
RING;WEAR
|
|
| 2. |
131008-00153
|
[1] |
|
|
| 20. |
1.180-00633
|
[1] |
RING;DUST
|
|
| 21. |
S8010451
|
[1] |
O-RING
|
|
| 22. |
S8100450
|
[2] |
RING;BACK UP
|
|
| 23. |
120312-00522
|
[1] |
NUT,PISTON
|
|
| 24. |
120706-00007
|
[2] |
SCREW,SET
|
|
| 25. |
S5100603
|
[4] |
WASHER
|
|
| 26. |
S2212371
|
[4] |
BOLT
|
|
| 27. |
S8000281
|
[1] |
O-RING
|
|
| 28. |
420210-02457-L
|
[1] |
|
|
| 29. |
K9003968-L
|
[1] |
|
|
| 3. |
400337-00976-L
|
[1] |
|
|
| 30. |
S5100703
|
[1] |
WASHER;SPRING
|
|
| 31. |
120106-00739
|
[1] |
|
|
| 4. |
131008-00153
|
[1] |
|
|
| 5. |
110508-24017-L
|
[1] |
|
|
| 6. |
K9006524
|
[1] |
DU-BUSH
|
|
| 7. |
1.115-00059
|
[1] |
RING;RETAINING
|
|
| 8. |
401107-01717
|
[1] |
SEAL,BUFFER
|
|
| 9. |
400606-00898
|
[1] |
PACKING,U
|
|
