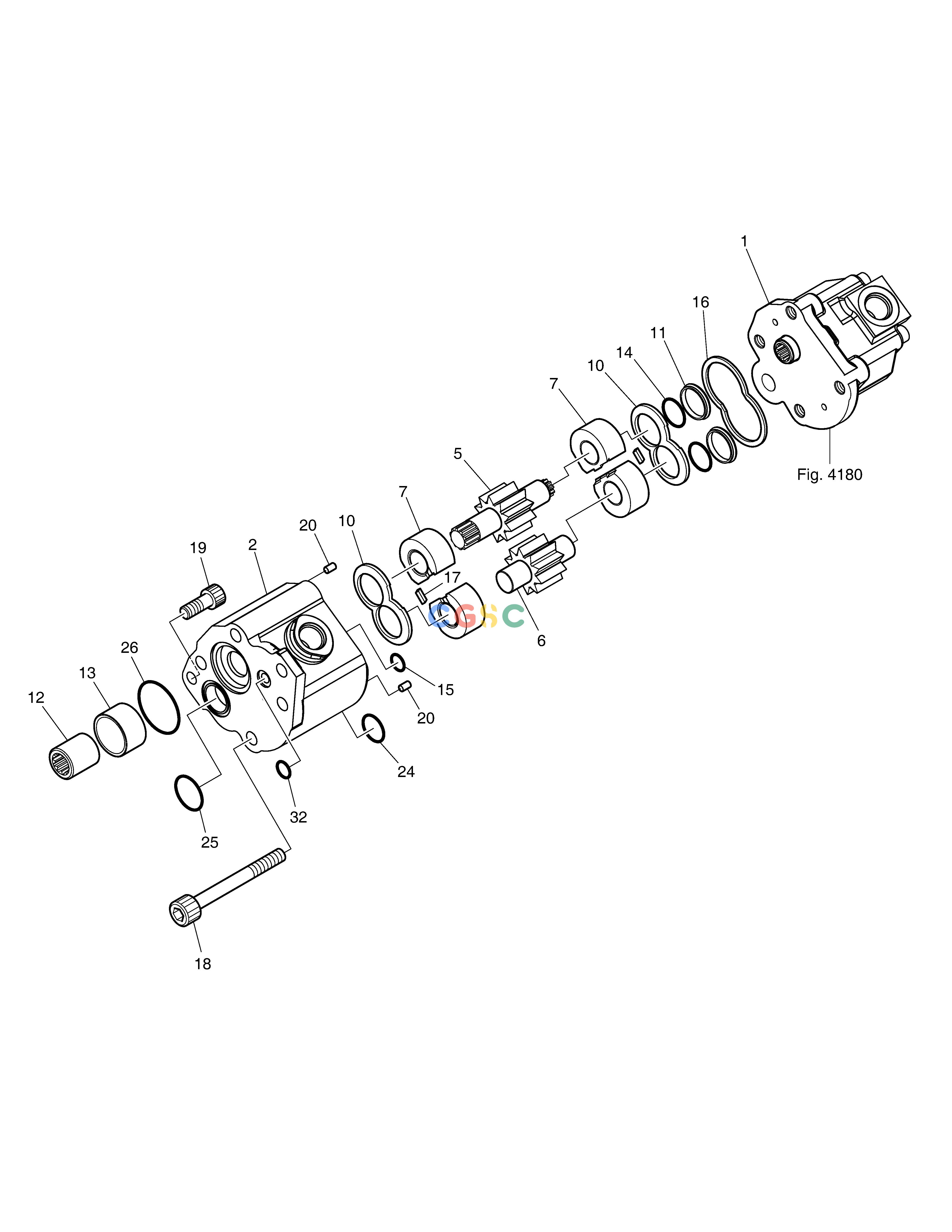

斗山零件查询MAIN PUMP - GEAR PUMP(1) E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
841 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400910-00300
|
[1] |
|
|
| 1. |
1.241-00014
|
[1] |
PUMP;GEAR
|
|
| 10. |
2.412-00356
|
[2] |
PLATE
|
|
| 11. |
2.429-00017
|
[2] |
GUIDE
|
|
| 12. |
130801-00089
|
[1] |
|
|
| 13. |
2.408-00047
|
[1] |
BUSH
|
|
| 14. |
2.180-00388
|
[2] |
O-RING
|
|
| 15. |
401002-01064
|
[1] |
|
|
| 16. |
2.180-01054
|
[1] |
RING;SQUARE
|
|
| 17. |
2.180-01055
|
[2] |
RING;SQUARE
|
|
| 18. |
S2213461
|
[4] |
BOLT;SOCKET M10X1.5X90
|
|
| 19. |
S2212061
|
[2] |
BOLT;SOCKET M10X1.5X25
|
|
| 2. |
130401-00180
|
[1] |
|
|
| 20. |
S5700741
|
[2] |
PIN;PARALLEL
|
|
| 24. |
401002-01065
|
[1] |
|
|
| 25. |
401002-01066
|
[1] |
|
|
| 26. |
401002-01067
|
[1] |
|
|
| 32. |
2.604-00003
|
[1] |
FRAME;CENTER
|
|
| 5. |
K9005700
|
[1] |
GEAR;DRIVE
|
|
| 6. |
K9005699
|
[1] |
GEAR;IDLE
|
|
| 7. |
K9005706
|
[2] |
SIDE PLATE ASS'Y
|
|
