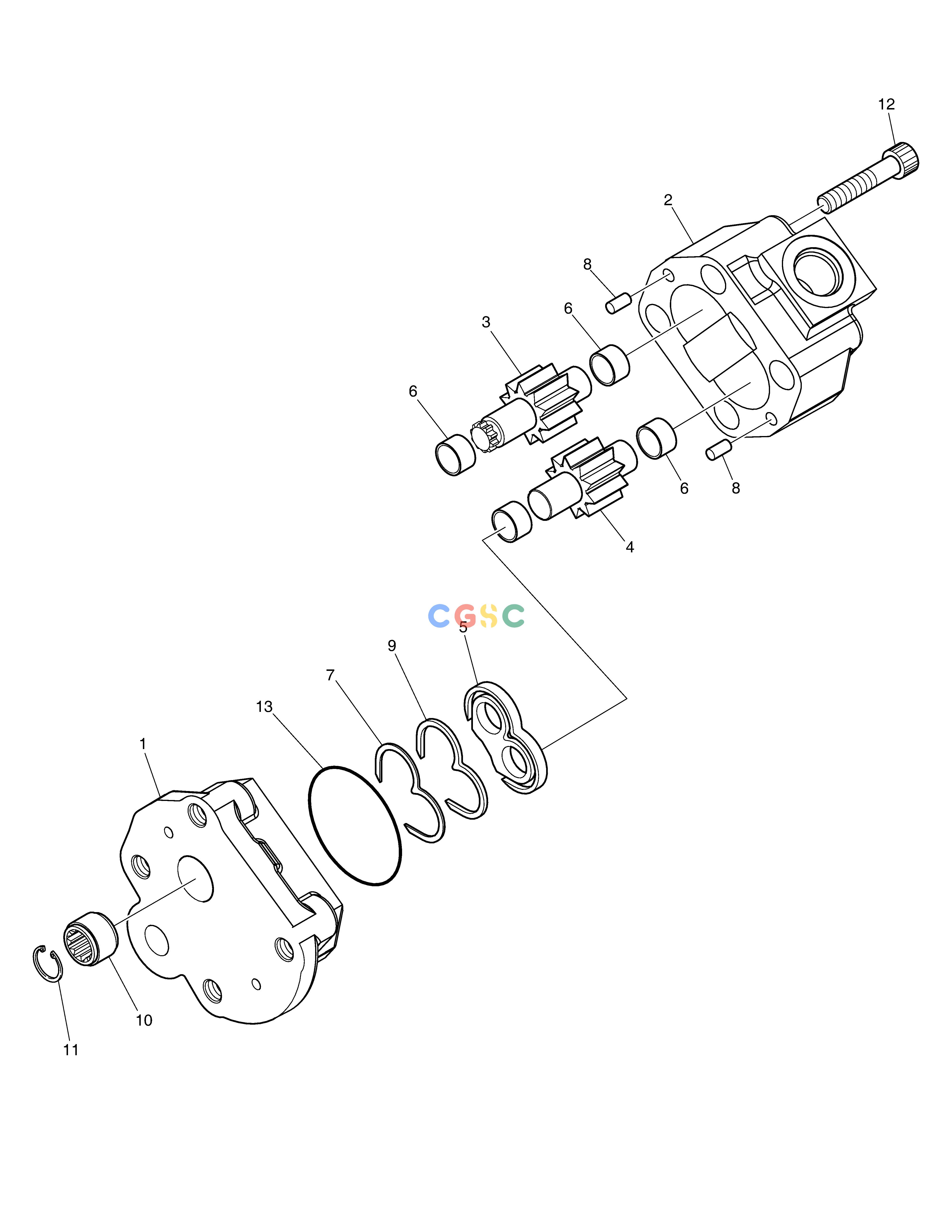

斗山零件查询MAIN PUMP - GEAR PUMP(2) E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
865 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
1.241-00014
|
[1] |
PUMP;GEAR
|
|
| 1. |
160609-04281
|
[1] |
|
|
| 10. |
2.414-00012
|
[1] |
COUPLING
|
|
| 11. |
S6510120
|
[1] |
RING;RETAINING
|
|
| 12. |
S2209661
|
[4] |
BOLT
|
|
| 13. |
401002-01775
|
[1] |
|
|
| 2. |
2.402-00313
|
[1] |
HOUSING
|
|
| 3. |
2.403-00322
|
[1] |
GEAR;DRIVE
|
|
| 4. |
2.403-00325
|
[1] |
GEAR;IDLE
|
|
| 5. |
250201-04252
|
[1] |
|
|
| 6. |
130702-00223
|
[4] |
|
|
| 7. |
2.180-01037
|
[1] |
RING;BACK-UP
|
|
| 8. |
S5700741
|
[2] |
PIN;PARALLEL
|
|
| 9. |
2.180-01060
|
[1] |
RING;SQUARE
|
|
