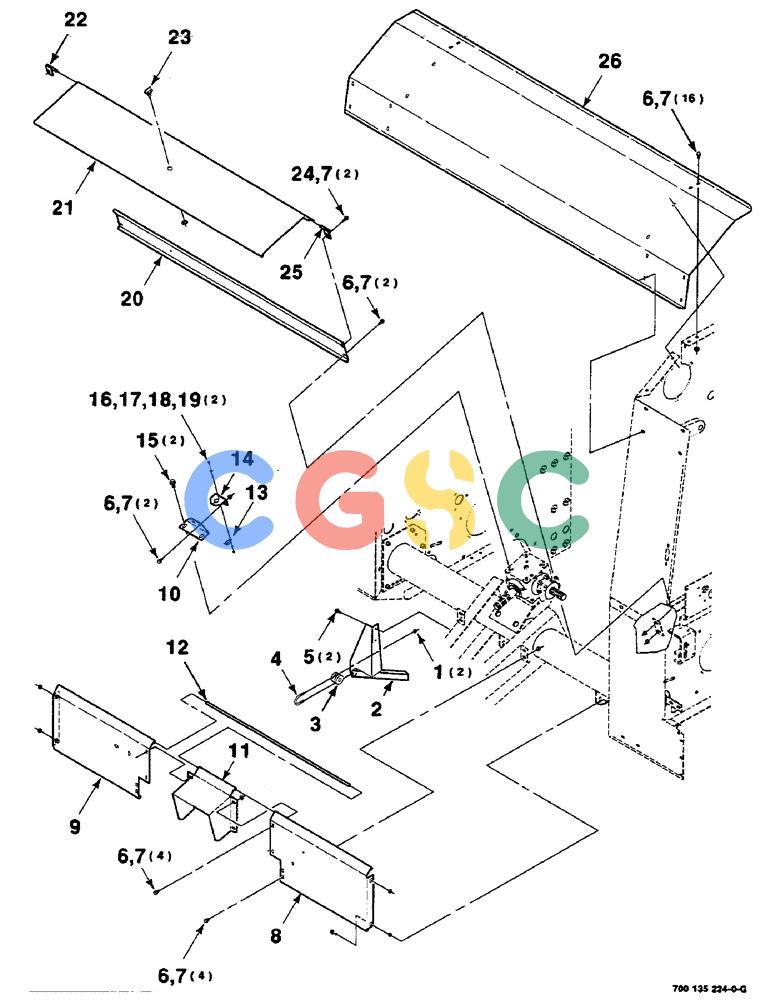

凯斯零件查询(RS551) - CASE IH ROUND BALER (1/99-12/00) (7-12) - SHIELD ASSEMBLIES, FRONT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
842 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
704726
|
[2] |
LOCK NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN GR/G Superseded by part number: 232-5315
|
| 2. |
700135586
|
[1] |
GUIDE
|
HFI
- WA
|
| 3. |
7745003
|
[1] |
GUIDE
|
L
|
| 4. |
766543
|
[1] |
SCREW
|
L
Superseded by part number: 51200861
|
| 5. |
702951
|
[2] |
CAPTIVE WASHER SCREW
|
CAS
3/8-16 X 3/4 HWHTCTS Superseded by part number: 281-34912
|
| 6. |
7883374
|
[28] |
SCREW,Hex Washer, 3/8" - 16 x 3/4"
|
CAS
3/8-16 X 3/4 HWHMS Superseded by part number: 255918
|
| 7. |
704734
|
[30] |
FLANGE NUT,Flg, 3/8"-16
|
IH
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 8. |
700135587
|
[1] |
SHIELD
|
HFI
- left
|
| 9. |
700135589
|
[1] |
SHIELD
|
HFI
- right
|
| 10. |
700150180
|
[1] |
SUPPORT
|
HFI
|
| 11. |
700135592
|
[1] |
SHIELD
|
HFI
|
| 12. |
700135613
|
[1] |
ROD
|
HFI
|
| 13. |
700714529
|
[1] |
SOCKET/RECEPTACLE
|
CAS
RECEPTACLE Superseded by part number: 292504A1
|
| 14. |
700150181
|
[1] |
SUPPORT
|
HFI
|
| 15. |
7883424
|
[2] |
BOLT
|
CAS
1/2-13 X 1 HFS GR8 Superseded by part number: 87034823
|
| 16. |
700700628
|
[2] |
SCREW,Cross Pan Hd, #10-24 x 1/2"
|
CAS
#10-24 X 1/2 CRPHMS GR 60M Superseded by part number: 340-1108
|
| 17. |
705640
|
[2] |
WASHER
|
NNA
#10 PLAIN WASHER Superseded by part number: 495-31022
|
| 18. |
705004
|
[2] |
LOCK WASHER
|
CAS
#10 L Superseded by part number: 80684
|
| 19. |
704072
|
[2] |
NUT
|
CAS
#10-24 H GR2 Superseded by part number: 225-14110, 225-14110, NLS
|
| 20. |
700135584
|
[1] |
PANEL
|
HFI
|
| 21. |
700135578
|
[1] |
SHIELD
|
HFI
|
| 22. |
700132465
|
[1] |
HINGE
|
HFI
WA - right
|
| 23. |
700714706
|
[1] |
LATCH
|
CAS
- 90 degree turn
|
| 24. |
7883382
|
[2] |
BOLT,Hex, 3/8" - 16 x 1", Gr 120M
|
CAS
3/8-16 X 1 HWHMS Superseded by part number: 87034804
|
| 25. |
700132462
|
[1] |
HINGE
|
HFI
WA - left
|
| 26. |
700135594
|
[1] |
SUPPORT
|
HFI
- upper
|
