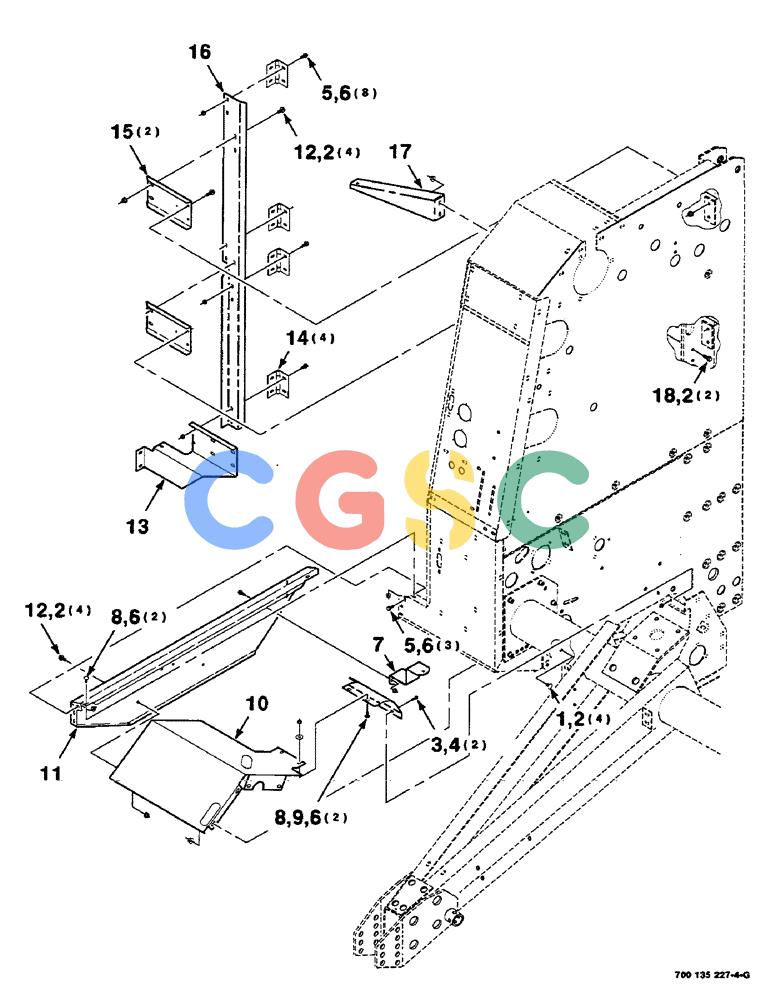

凯斯零件查询(RS551) - CASE IH ROUND BALER (1/99-12/00) (7-16) - SHIELD SUPPORT AND HINGE ASSEMBLIES, LEFT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
189 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7700065
|
[4] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
3/8-16 X 3/4 RHSNB Superseded by part number: 280430
|
| 2. |
704734
|
[14] |
FLANGE NUT,Flg, 3/8"-16
|
IH
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 3. |
7883275
|
[2] |
SCREW,Hex Washer, 1/4" - 20 x 3/4"
|
CAS
1/4-20 X 3/4 HWHMS
|
| 4. |
1703354
|
[2] |
NUT
|
IH
1/4-20 HFTLN GR/G
|
| 5. |
7883325
|
[11] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M
|
CAS
5/16-18 X 3/4 HWHMS Superseded by part number: 121-115
|
| 6. |
231-5145
|
[15] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
5/16-18 HFSLN Superseded by part number: 72187067, 145458
|
| 7. |
700135634
|
[1] |
SUPPORT
|
HFI
|
| 8. |
7700461
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
5/16-18 X 3/4 RHSSNB Superseded by part number: 280497
|
| 9. |
700702916
|
[2] |
WASHER
|
CAS
3/8 HARDENED WIDE PLAIN WASHER Superseded by part number: 86625244
|
| 10. |
700150825
|
[1] |
SHIELD
|
HFI
- R
|
| 11. |
700135680
|
[1] |
SHIELD
|
HFI
- R
|
| 12. |
7883374
|
[8] |
SCREW,Hex Washer, 3/8" - 16 x 3/4"
|
CAS
3/8-16 X 3/4 HWHMS Superseded by part number: 255918
|
| 13. |
700135683
|
[1] |
SUPPORT
|
HFI
- R
|
| 14. |
700707701
|
[4] |
HINGE
|
CAS
- butt
|
| 15. |
700135628
|
[2] |
SUPPORT
|
HFI
|
| 16. |
700150221
|
[1] |
SUPPORT
|
HFI
- R
|
| 17. |
700135685
|
[1] |
SUPPORT
|
HFI
- R
|
| 18. |
7883382
|
[2] |
BOLT,Hex, 3/8" - 16 x 1", Gr 120M
|
CAS
3/8-16 X 1 HWHMS Superseded by part number: 87034804
|
