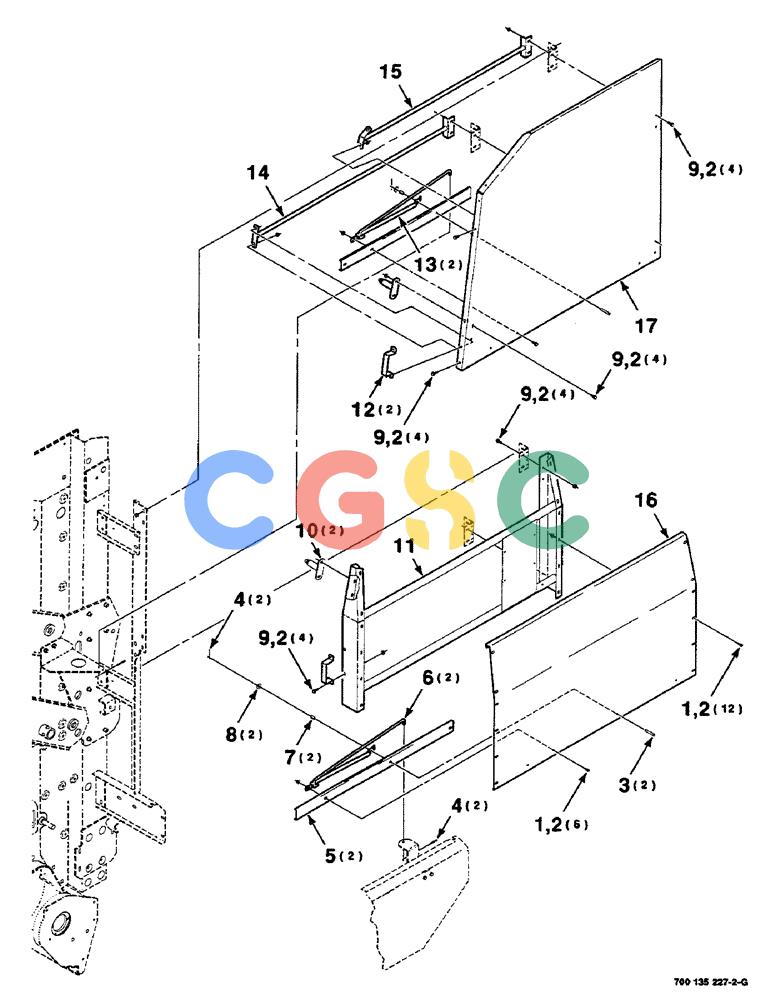

凯斯零件查询(RS551) - CASE IH ROUND BALER (1/99-12/00) (7-22) - SHIELD, LATCH AND SUPPORT ASSEMBLIES, LEFT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
144 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700701069
|
[18] |
SCREW,Cross Pan Hd, 5/16"-18 x 3/4"
|
HFI
5/16-18 X 3/4 CRPHMS GR 60M Superseded by part number: 86511938
|
| 2. |
704239
|
[38] |
FRONT AXLE
|
NNA
5/16-18 HFSLN Superseded by part number: 231-5145, 231-5145, NLS
|
| 3. |
763565
|
[2] |
PIN
|
CAS
5/16 X 2 CLEVIS PIN Superseded by part number: 439-5532
|
| 4. |
062075
|
[4] |
1/8 X 3/4 COTTER PIN
|
|
| 5. |
700132503
|
[2] |
CHANNEL
|
HFI
|
| 6. |
700117067
|
[2] |
SUPPORT
|
CAS
|
| 7. |
754606
|
[2] |
SPRING
|
CAS
- compression
|
| 8. |
700709602
|
[2] |
WASHER,5/16"
|
CAS
5/16 WIDE PLAIN WASHER Superseded by part number: 495-61034
|
| 9. |
7883325
|
[20] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M
|
CAS
5/16-18 X 3/4 HWHMS Superseded by part number: 121-115
|
| 10. |
700135648
|
[2] |
PIN
|
HFI
WA
|
| 11. |
700150819
|
[1] |
SHIELD
|
HFI
FRAME WA - left, shield (With reflector decals)
|
| 12. |
700135650
|
[2] |
HANDLE
|
HFI
|
| 13. |
700117061
|
[2] |
LATCH
|
CAS
|
| 14. |
700135645
|
[1] |
SUPPORT
|
HFI
WA - lower, left
|
| 15. |
700135639
|
[1] |
SUPPORT
|
HFI
WA - upper, left
|
| 16. |
700150818
|
[1] |
SHIELD
|
HFI
- lower, left (Includes decals)
|
| 17. |
700135637
|
[1] |
SHIELD
|
HFI
- upper, left
|
