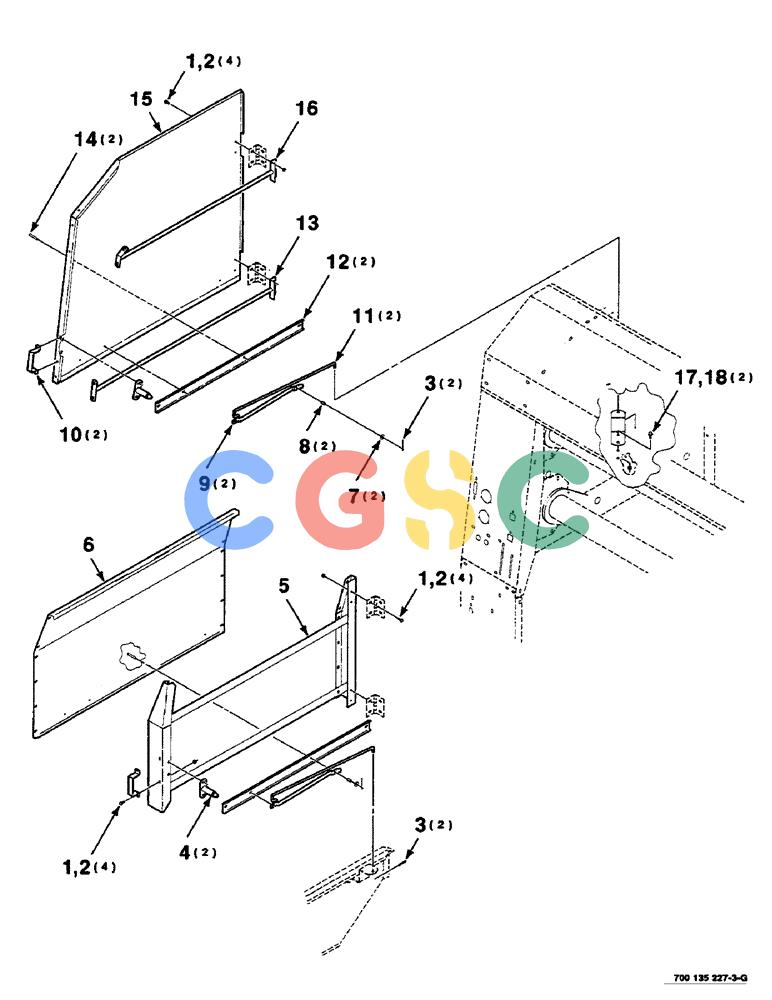

凯斯零件查询(RS551) - CASE IH ROUND BALER (1/99-12/00) (7-24) - SHIELD, LATCH AND SUPPORT ASSEMBLIES, RIGHT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
940 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7883325
|
[12] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M
|
CAS
5/16-18 X 3/4 HWHMS Superseded by part number: 121-115
|
| 2. |
231-5145
|
[12] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
5/16-18 HFSLN Superseded by part number: 72187067, 145458
|
| 3. |
062075
|
[4] |
1/8 X 3/4 COTTER PIN
|
|
| 4. |
700135648
|
[2] |
PIN
|
HFI
WA
|
| 5. |
700150817
|
[1] |
SHIELD
|
HFI
FRAME WA - right, shield (With reflector decal)
|
| 6. |
700150816
|
[1] |
SHIELD
|
HFI
- lower, right (Includes decals)
|
| 7. |
700709602
|
[2] |
WASHER,5/16"
|
CAS
5/16 WIDE PLAIN WASHER Superseded by part number: 495-61034
|
| 8. |
754606
|
[2] |
SPRING
|
CAS
- compression
|
| 9. |
700117061
|
[2] |
LATCH
|
CAS
|
| 10. |
700135650
|
[2] |
HANDLE
|
HFI
|
| 11. |
700117067
|
[2] |
SUPPORT
|
CAS
|
| 12. |
700132503
|
[2] |
CHANNEL
|
HFI
|
| 13. |
700135646
|
[1] |
SUPPORT
|
HFI
WA - lower, right
|
| 14. |
763565
|
[2] |
PIN
|
CAS
5/16 X 2 CLEVIS PIN Superseded by part number: 439-5532
|
| 15. |
700135638
|
[1] |
SHIELD
|
HFI
- upper, right
|
| 16. |
700135641
|
[1] |
SUPPORT
|
HFI
WA - upper, right
|
| 17. |
7883374
|
[2] |
SCREW,Hex Washer, 3/8" - 16 x 3/4"
|
CAS
3/8-16 X 3/4 HWHMS Superseded by part number: 255918
|
| 18. |
704734
|
[2] |
FLANGE NUT,Flg, 3/8"-16
|
IH
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
