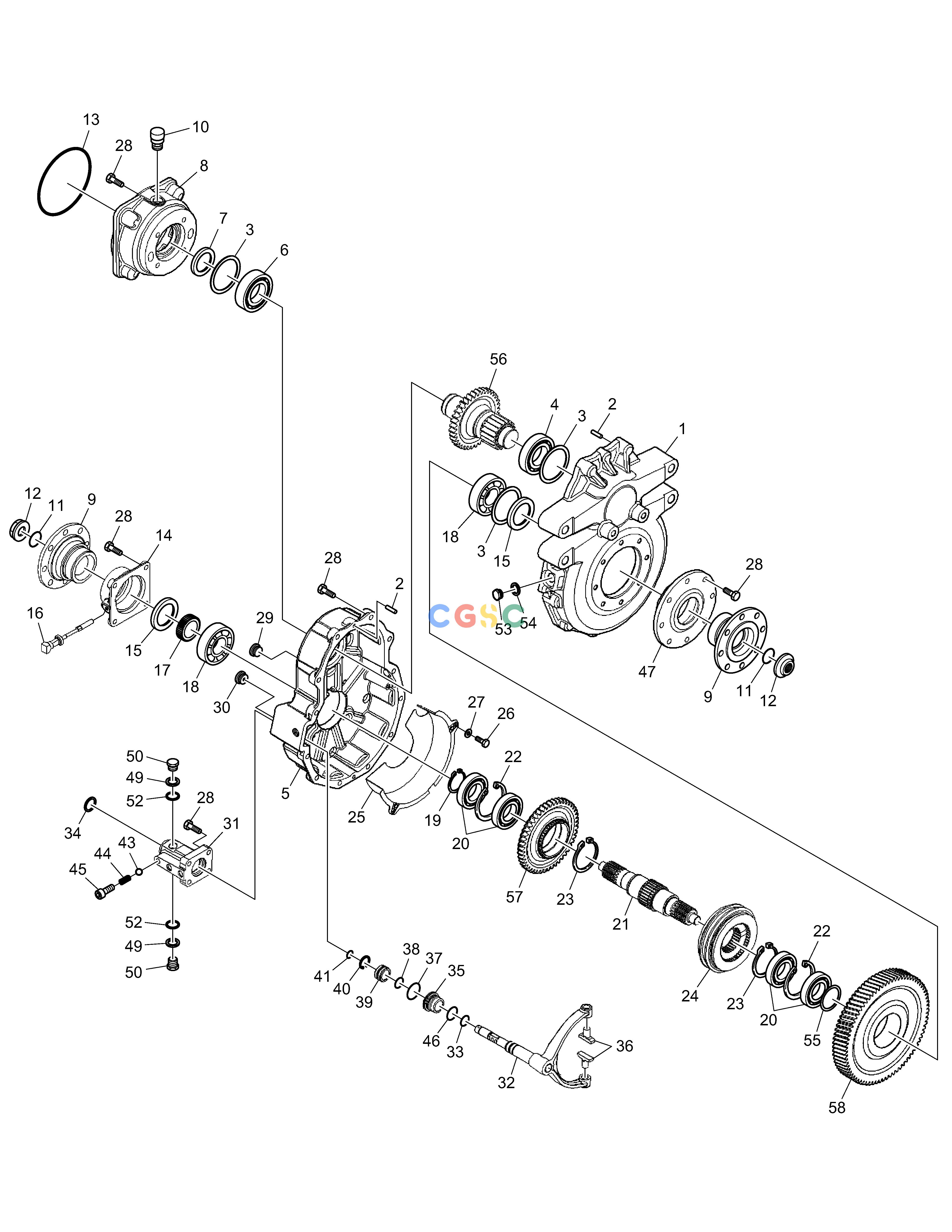

斗山零件查询TRANSMISSION E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
544 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1025504
|
[1] |
TRANSMISSION
|
|
| 1. |
K9006004
|
[1] |
HOUSING
|
|
| 10. |
2.422-00006
|
[1] |
BREATHER;AIR
|
|
| 11. |
2.180-01079
|
[2] |
O-RING
|
|
| 12. |
2.121-00063
|
[2] |
NUT
|
|
| 13. |
2.180-01088
|
[1] |
O-RING
|
|
| 14. |
K9006011
|
[1] |
COVER
|
|
| 15. |
2.180-00701
|
[2] |
SEAL
|
|
| 16. |
K9006015
|
[1] |
SENSOR;ELECTRONIC
|
|
| 17. |
K9006012
|
[1] |
GEAR
|
|
| 18. |
2.109-00293
|
[2] |
BEARING;BALL
|
|
| 19. |
2.124-00055
|
[1] |
RING;SNAP
|
|
| 2. |
2.123-00280
|
[2] |
PIN
|
|
| 20. |
K9005993
|
[4] |
BEARING;BALL
|
|
| 21. |
K9006006
|
[1] |
SHAFT;OUTPUT
|
|
| 22. |
K9005992
|
[2] |
RING;SNAP
|
|
| 23. |
K9005991
|
[2] |
RING;SNAP
|
|
| 24. |
K9006014
|
[1] |
SYNCHRONIZER
|
|
| 25. |
K9006003
|
[1] |
SHEET
|
|
| 26. |
2.120-00729
|
[2] |
BOLT;HEX.
|
|
| 27. |
K9005995
|
[2] |
WASHER;LOCK
|
|
| 28. |
2.120-00731
|
[12] |
BOLT;HEX.
|
|
| 29. |
2.181-00110
|
[1] |
PLUG
|
|
| 3. |
2.114-01168
|
[1] |
SHIM
|
|
| 3. |
2.114-01169
|
[1] |
SHIM
|
|
| 3. |
2.114-01170
|
[1] |
SHIM
|
|
| 3. |
2.114-01171
|
[1] |
SHIM
|
|
| 3. |
2.114-01178
|
[1] |
SHIM
|
|
| 30. |
2.181-00385
|
[1] |
PLUG;MAGNET
|
|
| 31. |
K9006010
|
[1] |
CYLINDER
|
|
| 32. |
K9006016
|
[1] |
SHAFT;SELECTOR
|
|
| 33. |
K9005985
|
[1] |
O-RING
|
|
| 34. |
K9005989
|
[1] |
SEAL
|
|
| 35. |
K9006009
|
[1] |
BUSHING;REDUCTION
|
|
| 36. |
K9006002
|
[2] |
PIN;SLIDING
|
|
| 37. |
K9005984
|
[1] |
O-RING
|
|
| 38. |
K9005987
|
[1] |
O-RING
|
|
| 39. |
K9006008
|
[1] |
PISTON
|
|
| 4. |
K9005994
|
[1] |
BEARING;BALL
|
|
| 40. |
K9005990
|
[2] |
RING;SNAP
|
|
| 41. |
K9005986
|
[2] |
O-RING
|
|
| 43. |
K9005998
|
[1] |
BALL
|
|
| 44. |
K9006017
|
[1] |
SPRING
|
|
| 45. |
K9005999
|
[1] |
BOLT;SOCKET
|
|
| 46. |
K9005988
|
[1] |
O-RING
|
|
| 47. |
2.430-00425
|
[1] |
COVER
|
|
| 49. |
K9005996
|
[2] |
WASHER
|
|
| 5. |
K9006005
|
[1] |
COVER
|
|
| 50. |
K9006001
|
[2] |
PLUG
|
|
| 52. |
K9005997
|
[1] |
WASHER;SEAL
|
|
| 53. |
2.120-00713
|
[2] |
BOLT
|
|
| 54. |
2.114-01250
|
[2] |
WASHER
|
|
| 55. |
2.114-00084
|
[1] |
SHIM
|
|
| 55. |
2.114-00085
|
[1] |
SHIM
|
|
| 55. |
2.114-00086
|
[1] |
SHIM
|
|
| 55. |
2.114-00087
|
[1] |
SHIM
|
|
| 56. |
2.405-00224
|
[1] |
SHAFT;INPUT
|
|
| 57. |
K9006007
|
[1] |
GEAR
|
|
| 58. |
K9006013
|
[1] |
GEAR
|
|
| 6. |
2.109-00128
|
[1] |
BEARING;BALL
|
|
| 7. |
2.180-01147
|
[1] |
SEAL
|
|
| 8. |
2.430-00423
|
[1] |
COVER
|
|
| 9. |
2.181-00476
|
[1] |
FLANGE
|
|
