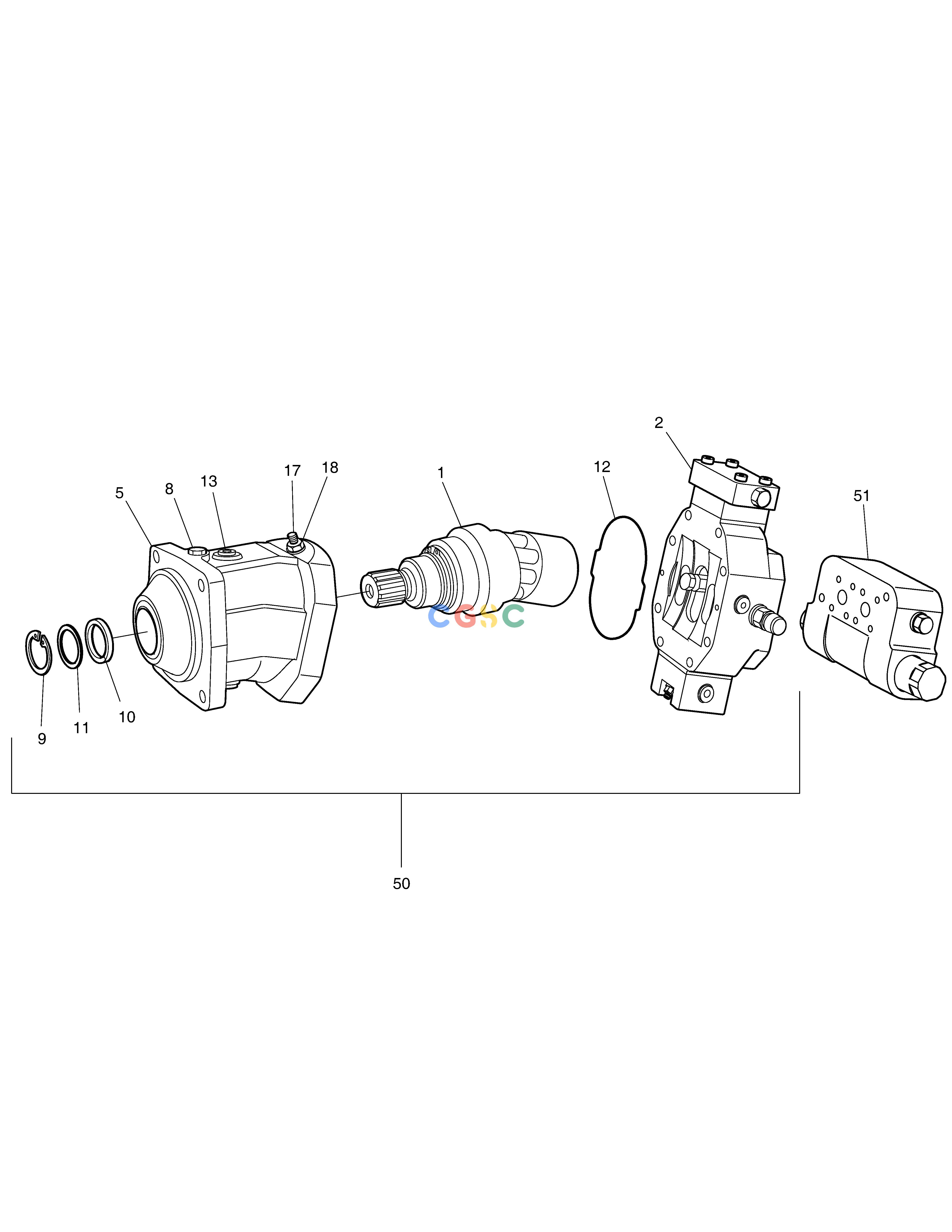

斗山零件查询TRAVEL MOTOR E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
336 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
170403-00081
|
[1] |
|
|
| 1. |
2.409-00246
|
[1] |
ROTARY GROUP
|
|
| 10. |
2.115-00541
|
[1] |
RING;SHAFT SEAL
|
|
| 11. |
2.180-01210
|
[1] |
PLATE;BACK-UP
|
|
| 12. |
2.180-01201
|
[1] |
O-RING
|
|
| 13. |
2.120-00816
|
[1] |
PLUG
|
|
| 17. |
2.123-00297
|
[2] |
BOLT;STUD
|
|
| 18. |
2.121-00263
|
[2] |
NUT;SEAL LOCK
|
|
| 2. |
2.409-00244
|
[1] |
CONTROL
|
|
| 5. |
NA00528
|
[1] |
CARTER
|
|
| 50. |
2.401-00053
|
[1] |
MOTOR;PISTON
|
|
| 51. |
2.401-00050
|
[1] |
VALVE;COUNTER BALANCE
|
|
| 8. |
2.120-00816
|
[1] |
PLUG
|
|
| 9. |
2.120-00812
|
[1] |
RING;RETAINING
|
|
