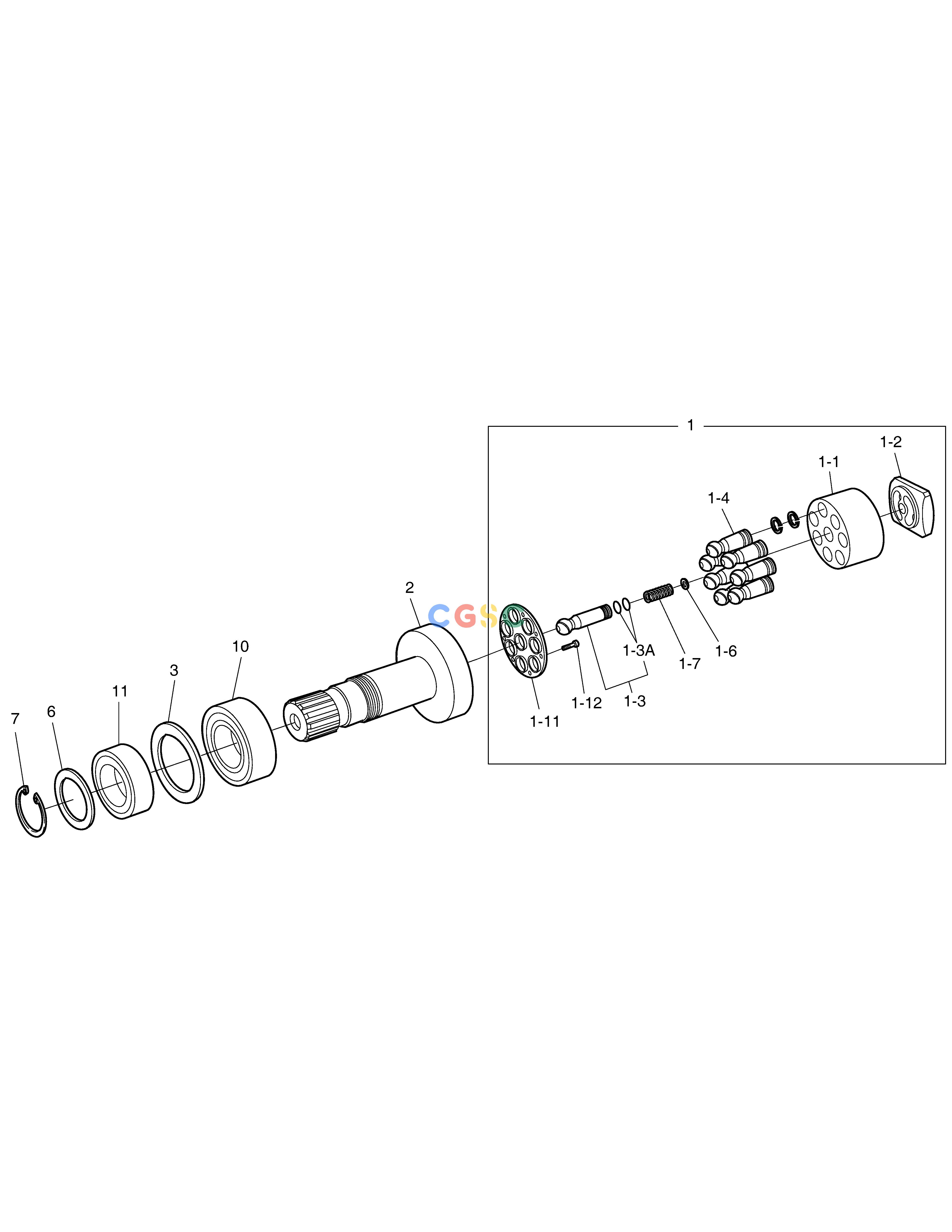

斗山零件查询TRAVEL MOTOR - ROTARY GROUP E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
690 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2.409-00246
|
[1] |
ROTARY GROUP
|
|
| 1. |
2.409-00247
|
[1] |
CYLINDER BLOCK ASS'Y
|
|
| 1-1. |
2.424-00353
|
[1] |
CYLINDER
|
|
| 1-11. |
250201-01372
|
[1] |
|
|
| 1-12. |
K9004228
|
[14] |
SCREW;PAN HEAD
|
|
| 1-2. |
2.412-00352
|
[1] |
LENS;CONTROL
|
|
| 1-3. |
2.123-00284
|
[1] |
PIN;CENTER
|
|
| 1-3A. |
2.115-00437
|
[2] |
RING;STEEL SEALING
|
|
| 1-4. |
2.115-00542
|
[7] |
PISTON(WITH PISTON RINGS)
|
|
| 1-6. |
2.114-01336
|
[1] |
SHIM;ADJUSTMENT
|
|
| 1-6. |
2.114-01337
|
[1] |
SHIM;ADJUSTMENT
|
|
| 1-6. |
2.114-01338
|
[1] |
SHIM;ADJUSTMENT
|
|
| 1-6. |
2.114-01339
|
[1] |
SHIM;ADJUSTMENT
|
|
| 1-6. |
2.114-01340
|
[1] |
SHIM;ADJUSTMENT
|
|
| 1-6. |
2.114-01341
|
[1] |
SHIM;ADJUSTMENT
|
|
| 1-7. |
2.129-00019
|
[1] |
SPRING;PRESSURE
|
|
| 10. |
2.109-00336
|
[1] |
BEARING;TAPERED ROLLER
|
|
| 11. |
2.109-00335
|
[1] |
BEARING;TAPERED ROLLER
|
|
| 2. |
2.405-00239
|
[1] |
SHAFT;DRIVE
|
|
| 3. |
2.114-01335
|
[1] |
SHIM
|
|
| 6. |
2.180-01000
|
[1] |
PLATE;BACK-UP
|
|
| 6. |
2.180-01001
|
[1] |
PLATE;BACK-UP
|
|
| 6. |
2.180-01002
|
[1] |
PLATE;BACK-UP
|
|
| 6. |
2.180-01003
|
[1] |
PLATE;BACK-UP
|
|
| 6. |
2.180-01004
|
[1] |
PLATE;BACK-UP
|
|
| 6. |
2.180-01005
|
[1] |
PLATE;BACK-UP
|
|
| 6. |
2.180-01006
|
[1] |
PLATE;BACK-UP
|
|
| 6. |
2.180-01209
|
[1] |
PLATE;BACK-UP
|
|
| 7. |
2.115-00306
|
[1] |
RING;RETAINING
|
|
