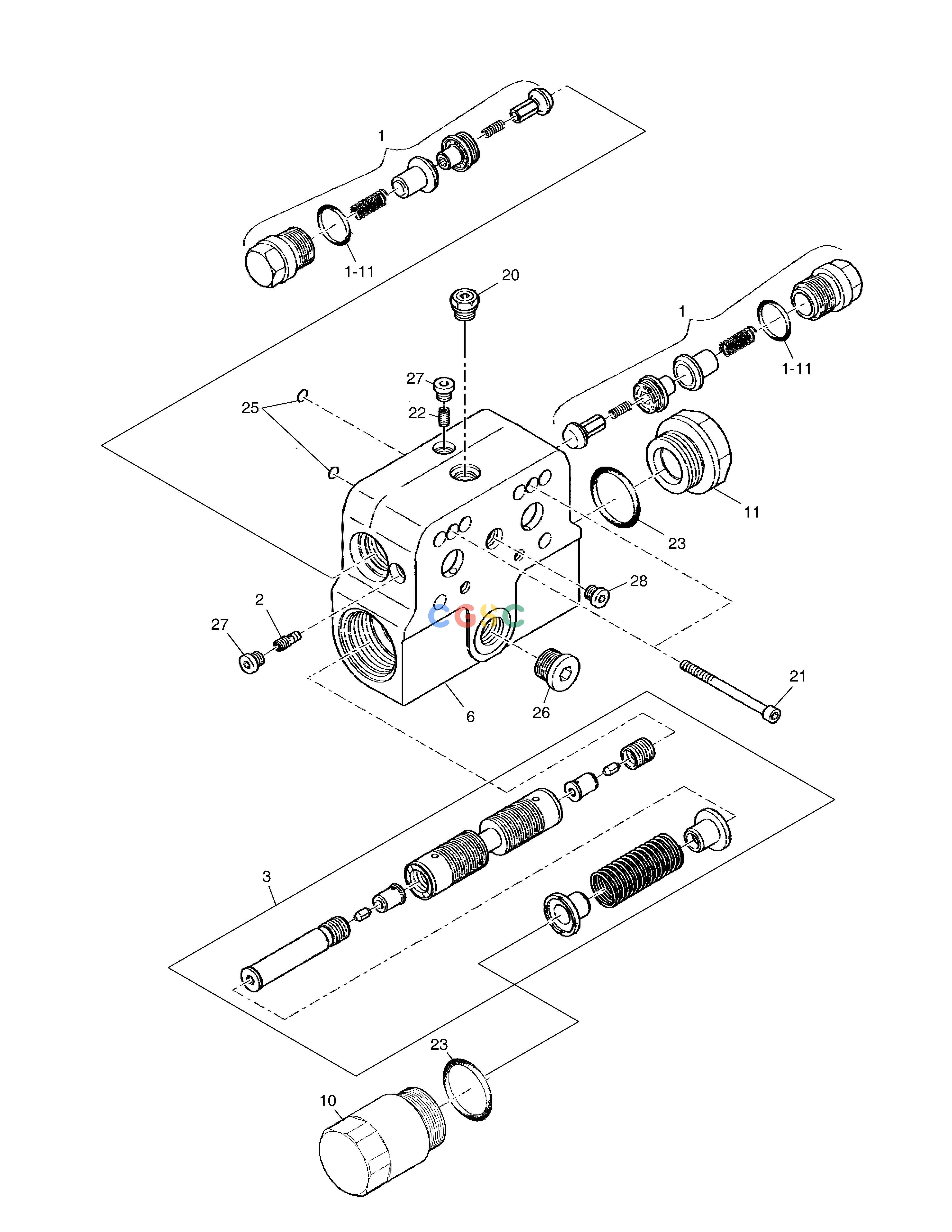

斗山零件查询TRAVEL MOTOR - COUNTER BALANCE VALVE E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
148 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2.401-00050
|
[1] |
VALVE;COUNTER BALANCE
|
|
| 1. |
2.421-00362
|
[2] |
VALVE;POPPET
|
|
| 1-11. |
2.180-01202
|
[1] |
O-RING
|
|
| 10. |
2.120-00805
|
[1] |
PLUG
|
|
| 11. |
2.120-00806
|
[1] |
PLUG
|
|
| 2. |
2.421-00378
|
[1] |
VALVE;SHUTTLE
|
|
| 20. |
2.120-00815
|
[1] |
PLUG
|
|
| 21. |
2.120-00840
|
[2] |
BOLT;SOCKET
|
|
| 22. |
2.181-00507
|
[1] |
PLUG
|
|
| 23. |
2.180-01198
|
[2] |
O-RING
|
|
| 25. |
2.180-01179
|
[2] |
O-RING
|
|
| 26. |
2.120-00618
|
[1] |
PLUG
|
|
| 27. |
2.120-00811
|
[2] |
PLUG
|
|
| 28. |
2.123-00138
|
[1] |
PIN;DOUBLE BREAK-OFF
|
|
| 3. |
2.401-00049
|
[1] |
VALVE;PLUNGER
|
|
| 6. |
2.402-00338
|
[1] |
HOUSING
|
|
