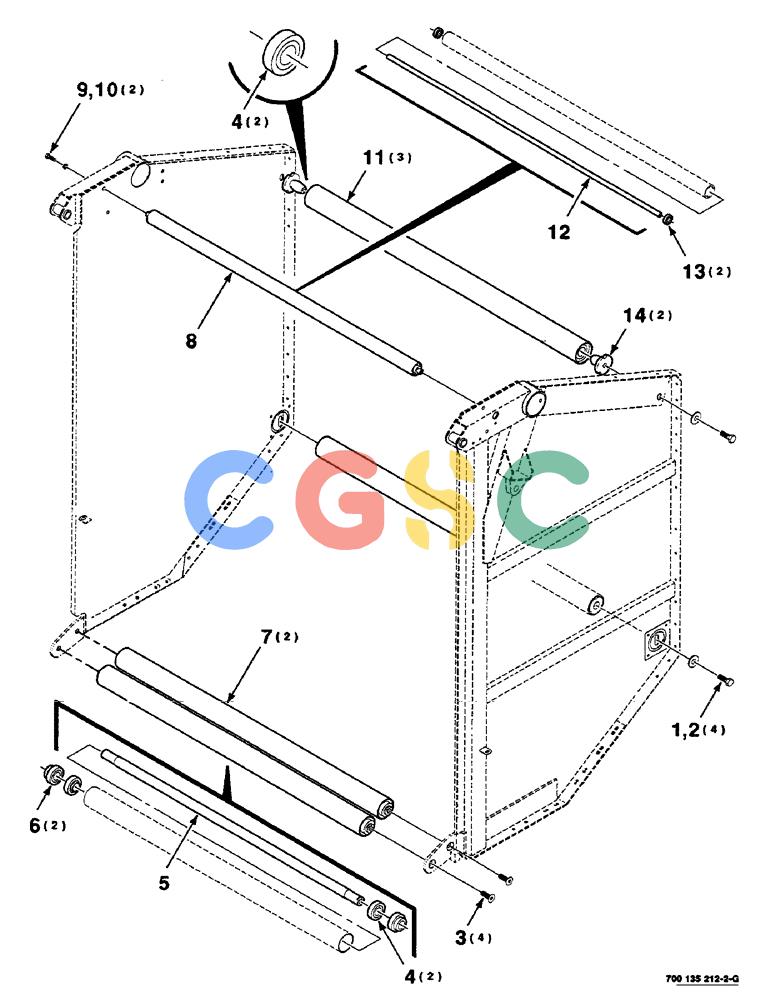

凯斯零件查询(RS551) - CASE IH ROUND BALER (1/99-12/00) (6-08) - TAILGATE ROLLER ASSEMBLIES Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
683 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7702160
|
[4] |
BOLT,Hex 3/4" - 10 x 2", Gr 5
|
CAS
3/4-10 X 2 C Superseded by part number: 88557
|
| 2. |
705566
|
[4] |
WASHER
|
IH
3/4 HARDENED PLAIN WASHER
|
| 3. |
700707981
|
[4] |
SCREW,FLAT, 3/4" - 10 x 1-3/4"
|
L
3/4-10 X 1-3/4 HSFCHCS SPL
|
| 4. |
8050825
|
[4] |
BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm
|
L
- cylindrical Superseded by part number: F82059
|
| 5. |
700130863
|
[1] |
SHAFT
|
HFI
|
| 6. |
F82059
|
[2] |
BEARING ASSY,38.1mm ID x 80mm OD x 22mm W
|
IH
BEARING - cylindrical
|
| 7. |
700130862
|
[2] |
ROLLER
|
HFI
ASSEMBLY (Includes items 4, 5 & 6)
|
| 8. |
700135478
|
[1] |
ROLLER
|
HFI
ASSEMBLY (Includes items 12 & 13)
|
| 9. |
701235
|
[2] |
BOLT,1/2" - 13 x 1 1/2", Gr 5
|
CAS
1/2-13 X 1-1/2 C
|
| 10. |
80679
|
[2] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
| 11. |
700124612
|
[3] |
ROLLER
|
CAS
ASM (Includes item 4)
|
| 12. |
700135480
|
[1] |
SHAFT
|
HFI
|
| 13. |
050443
|
[2] |
BEARING - cylindrical
|
|
| 14. |
700100927
|
[2] |
HUB
|
L
|
