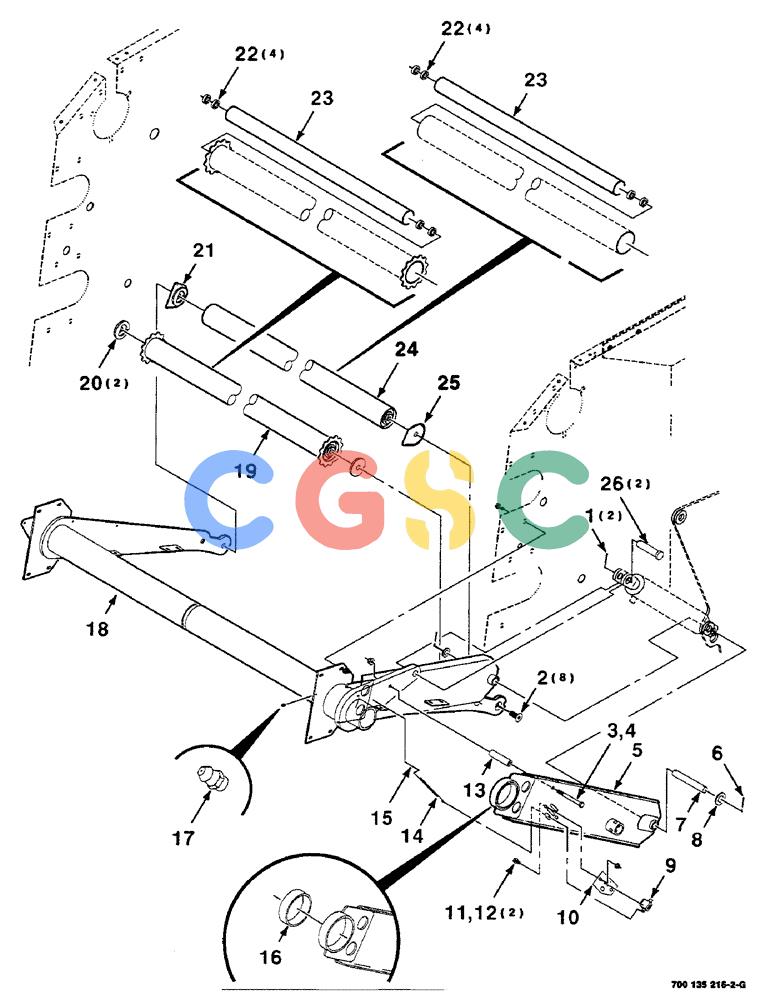

凯斯零件查询(RS551) - CASE IH ROUND BALER (1/99-12/00) (6-10) - BALE TENSIONING ROLLER ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
466 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
062299
|
[2] |
1/4 X 1-1/2 COTTER PIN
|
|
| 2. |
700707981
|
[8] |
SCREW,FLAT, 3/4" - 10 x 1-3/4"
|
L
3/4-10 X 1-3/4 HSFCHCS
|
| 3. |
7701279
|
[1] |
BOLT
|
HFI
1/2-13 X 5 C Superseded by part number: 87997
|
| 4. |
231-5348
|
[1] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 5. |
700135697
|
[1] |
CHANNEL
|
HFI
SUPPORT WA - outer, lower (Includes item 16)
|
| 6. |
062448
|
[1] |
3/16 X 1-3/4 COTTER PIN
|
|
| 7. |
700135516
|
[1] |
PIN
|
HFI
|
| 8. |
705574
|
[1] |
WASHER,1 1/8" x 2" x .156", HDN
|
CAS
|
| 9. |
700707437
|
[1] |
COUNTER
|
CAS
- bale
|
| 10. |
700150222
|
[1] |
PLATE
|
HFI
|
| 11. |
7883374
|
[2] |
SCREW,Hex Washer, 3/8" - 16 x 3/4"
|
CAS
3/8-16 X 3/4 HWHMS Superseded by part number: 255918
|
| 12. |
704734
|
[2] |
FLANGE NUT,Flg, 3/8"-16
|
IH
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 13. |
700135518
|
[1] |
TUBE,0.562" ID, 25.4 mm OD, 102 mm Length
|
HFI
|
| 14. |
700716222
|
[1] |
SPRING
|
CAS
- extension
|
| 15. |
062125
|
[1] |
1/8 X 1-1/2 COTTER PIN
|
|
| 16. |
700716063
|
[1] |
BUSHING
|
CAS
- bronze
|
| 17. |
077016
|
[1] |
1/4-28 ZERK
|
|
| 18. |
700135688
|
[1] |
ARM
|
HFI
WA - lower
|
| 19. |
700150042
|
[1] |
ROLLER
|
HFI
ASSEMBLY (Includes items 22 & 23)
|
| 20. |
700150040
|
[2] |
WASHER
|
HFI
WA - special
|
| 21. |
700150141
|
[1] |
GUIDE
|
HFI
WA
|
| 22. |
8050825
|
[8] |
BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm
|
L
- cylindrical Superseded by part number: F82059
|
| 23. |
700150048
|
[2] |
SHAFT
|
HFI
|
| 24. |
700150043
|
[1] |
ROLLER
|
HFI
ASSEMBLY (Includes items 22 & 23)
|
| 25. |
700150139
|
[1] |
GUIDE
|
HFI
WA - L
|
| 26. |
700710292
|
[2] |
PIN
|
CAS
|
