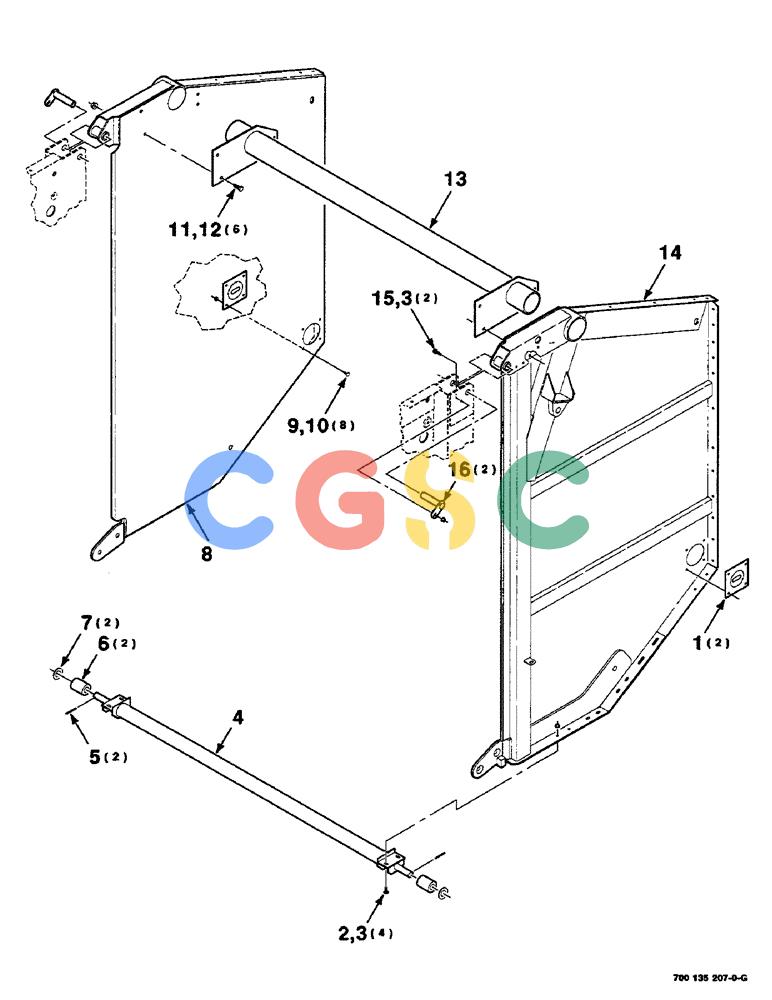

凯斯零件查询(RS551) - CASE IH ROUND BALER (1/99-12/00) (5-02) - TAILGATE ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
899 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700125148
|
[2] |
PLUG
|
HFI
|
| 2. |
700047
|
[4] |
BOLT
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 3. |
704734
|
[6] |
FLANGE NUT,Flg, 3/8"-16
|
IH
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 4. |
700135414
|
[1] |
SHAFT
|
HFI
WA
|
| 5. |
063123
|
[2] |
1/4 X 2 SLOTTED SPRING PIN
|
|
| 6. |
700132082
|
[2] |
BUSHING
|
HFI
|
| 7. |
705574
|
[2] |
WASHER,1 1/8" x 2" x .156", HDN
|
CAS
|
| 8. |
700135437
|
[1] |
PANEL
|
HFI
SIDE WA - tailgate, right
|
| 9. |
700013
|
[8] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
5/16-18 X 3/4 RHSNB
|
| 10. |
704726
|
[8] |
LOCK NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN GR/G Superseded by part number: 232-5315
|
| 11. |
7701188
|
[6] |
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
|
CAS
1/2-13 X 1-1/4 C Superseded by part number: 87670
|
| 12. |
231-5348
|
[6] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 13. |
700135402
|
[1] |
TUBE
|
HFI
WA
|
| 14. |
700135436
|
[1] |
PANEL
|
HFI
SIDE WA - tailgate, left
|
| 15. |
7883408
|
[2] |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8
|
CAS
3/8-16 X 1-1/4 HFS GR8 Superseded by part number: 87327172
|
| 16. |
700135411
|
[2] |
PIN
|
HFI
WA Superseded by part number: 700166213, 700134804
|
