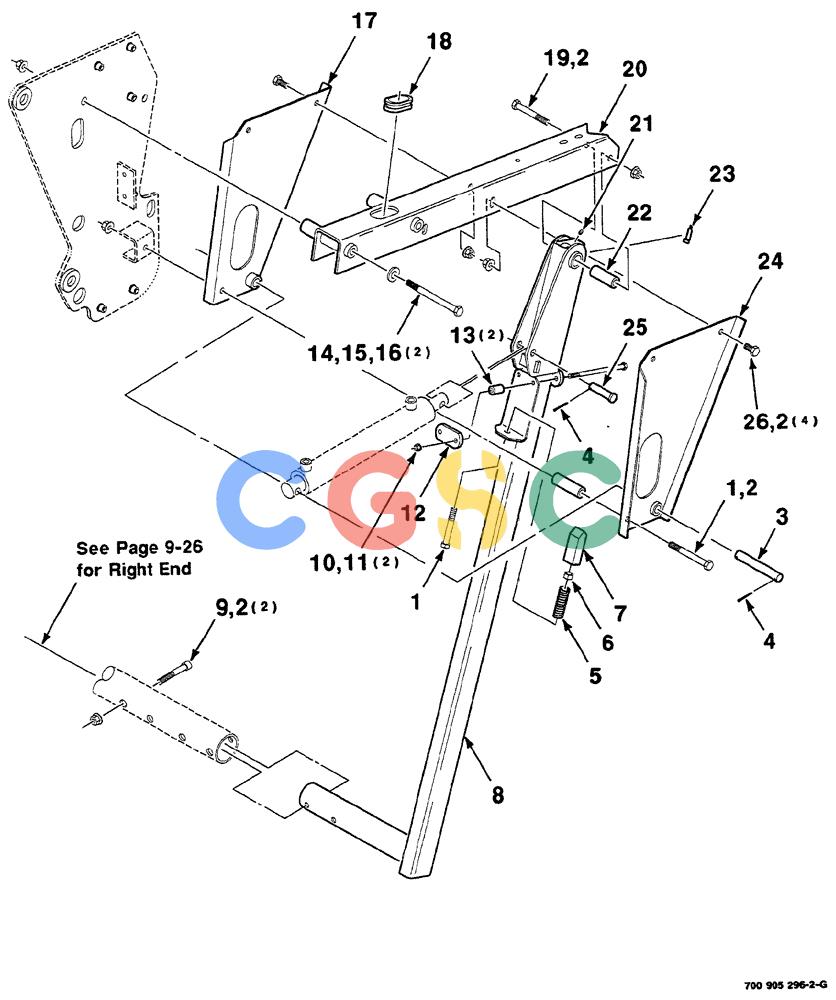

| 1. |
413-872
|
[2] |
BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5
|
CAS
SCREW hex cap, 1/2-13 x 4-1/2 Superseded by part number: 87996
|
| 2. |
231-5348
|
[8] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
hex flange top lock, 1/2-13 GR/G Superseded by part number: 86521610
|
| 3. |
700132165
|
[1] |
PIN
|
HFI
|
| 4. |
432-1020
|
[2] |
COTTER PIN,5/32" x 1 1/4"
|
CAS
Superseded by part number: 86523851
|
| 5. |
700716851
|
[1] |
SPRING
|
CAS
compression
|
| 6. |
425-108
|
[1] |
NUT,1/2" - 13, Gr 5
|
CAS
Superseded by part number: 280431
|
| 7. |
700135979
|
[1] |
LATCH
|
HFI
|
| 8. |
700150833
|
[1] |
STRUT
|
HFI
WA left
|
| 9. |
61-35052
|
[2] |
HEX SOC SCREW,1/2"-13 x 3 1/4"
|
CAS
hex socket head cap, special, 1/2-13 x 3-1/4
|
| 10. |
413-696
|
[2] |
BOLT,Hex, 3/8" - 16 x 6", Gr 5
|
CAS
hex, 3/8-16 x 6 Superseded by part number: 280258
|
| 11. |
232-5316
|
[2] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
hex flange top lock, 3/8-16 GR/G Superseded by part number: 86521609
|
| 12. |
700135976
|
[1] |
PLATE
|
HFI
|
| 13. |
700135978
|
[2] |
SPACER
|
HFI
|
| 14. |
413-10120
|
[2] |
BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5
|
CAS
hex, 5/8-11 x 7-1/2 Superseded by part number: 280361
|
| 15. |
396-21066
|
[2] |
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
|
CAS
5/8" bolt size Superseded by part number: 87613283
|
| 16. |
232-53110
|
[2] |
FLANGE NUT,Flg, 5/8"-11
|
CAS
Superseded by part number: 84180923
|
| 17. |
700150831
|
[1] |
MOUNTING PARTS
|
HFI
channel WA right
|
| 18. |
8027427
|
[1] |
GROMMET
|
CAS
|
| 19. |
413-860
|
[1] |
BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5
|
CAS
Superseded by part number: 86505992
|
| 20. |
700150218
|
[1] |
CHANNEL
|
HFI
WA left
|
| 21. |
219-8
|
[1] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
Superseded by part number: 87414
|
| 22. |
700132166
|
[1] |
SPACER
|
HFI
|
| 23. |
7889306
|
[1] |
DECAL
|
CAS
lube
|
| 24. |
700150829
|
[1] |
MOUNTING PARTS
|
HFI
channel WA left
|
| 25. |
700708068
|
[1] |
CLEVIS PIN,15.77mm OD x 68.66mm L
|
IH
5/8" x 2-1/2 "
|
| 26. |
413-816
|
[4] |
BOLT,Hex, 1/2" - 13 x 1", Gr 5
|
CAS
Superseded by part number: 87909, BN50282
|
