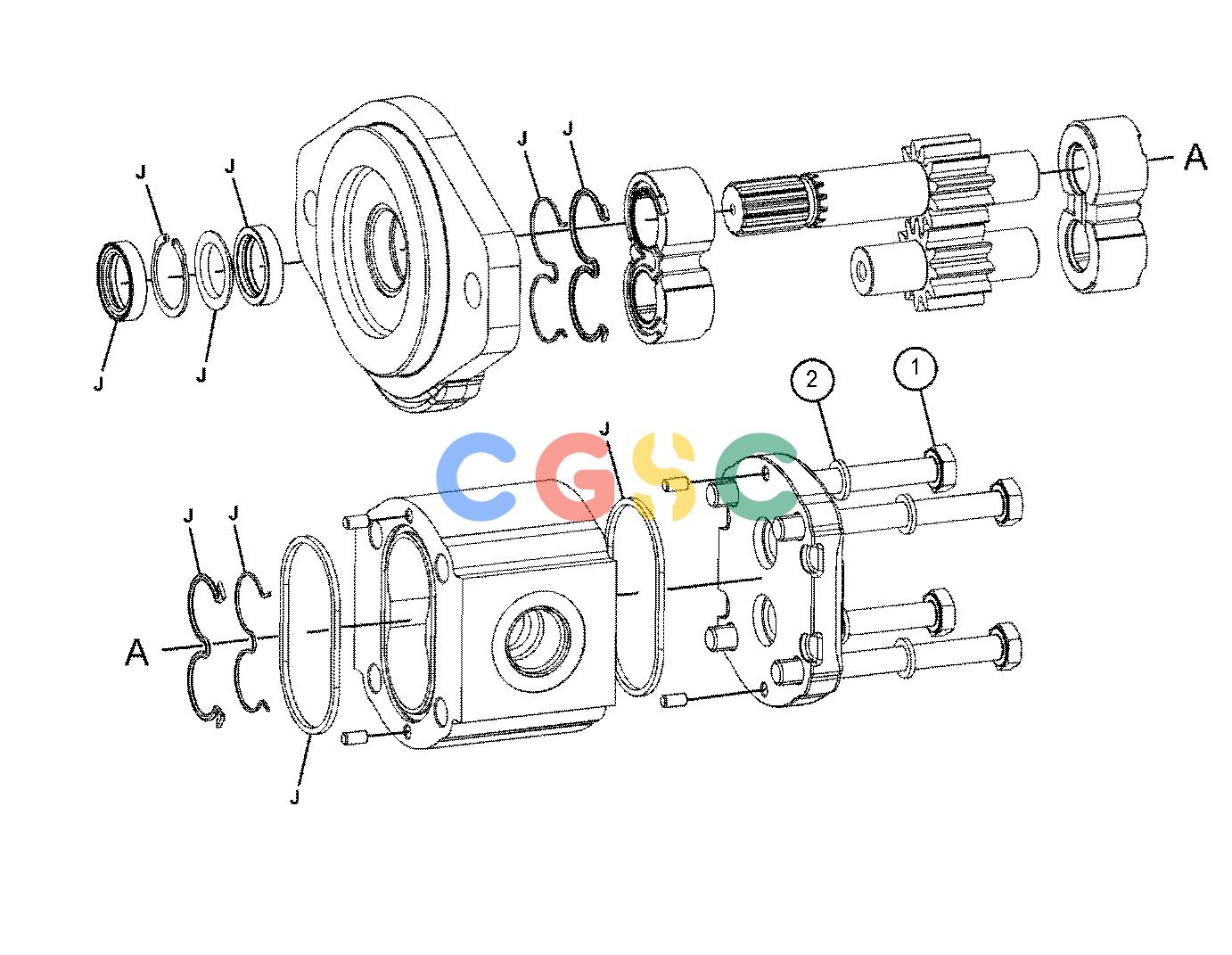

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 8T-4198M | [4] | BOLT(M10X1.5X100-MM) | |
| 2. | 3V-2431 | [4] | WASHER(10.2X16X2-MM THK) | |
| PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY | ||||
| AVAILABLE REPAIR KIT(S): | ||||
| 419-4116 | [1] | KIT-SEAL | ||
| (INCLUDES PARTS MARKED 'J'IN THE GRAPHIC) | ||||
| M | METRIC PART | |||
