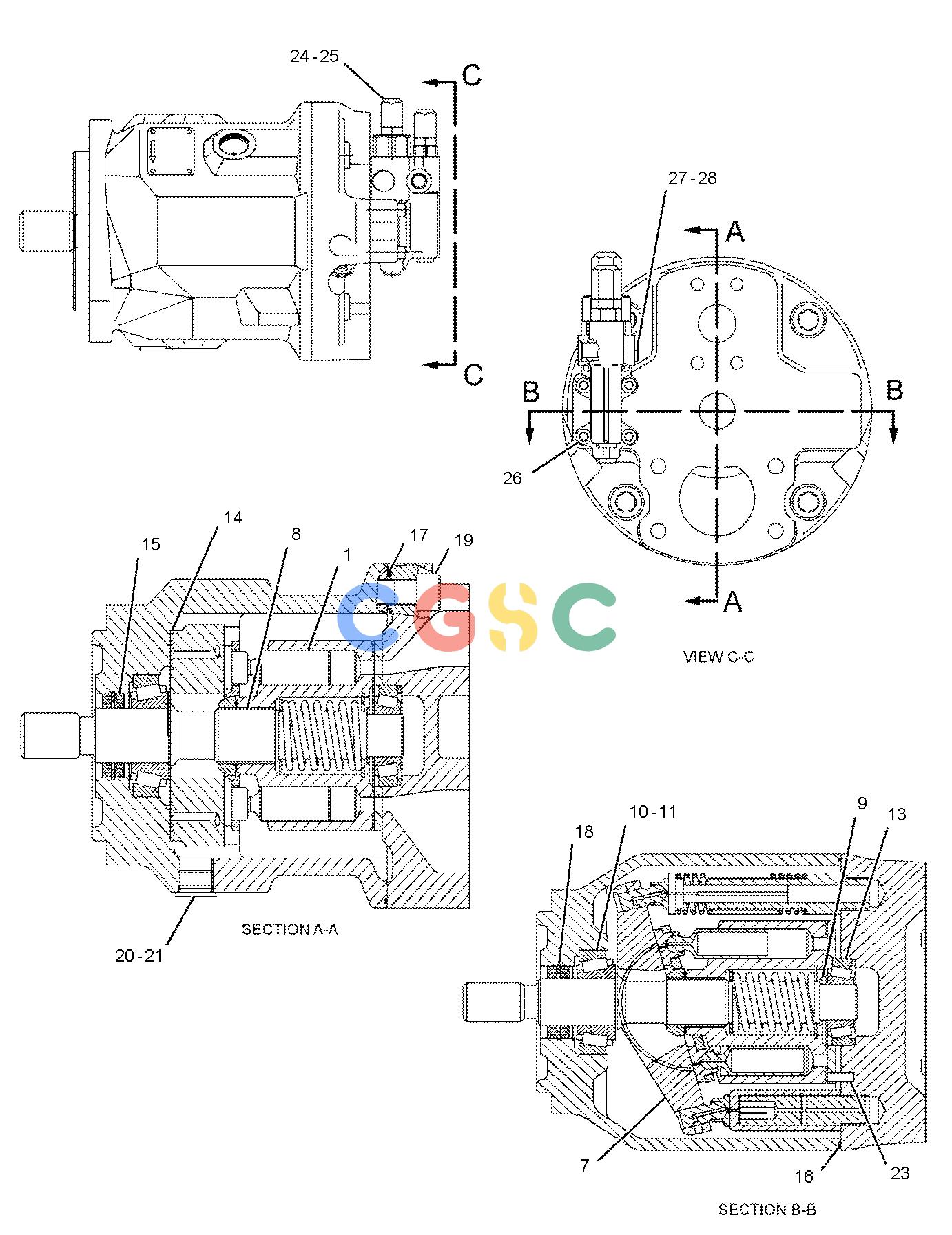

卡特零件查询（725C2） 240-2647: PUMP GP-PISTON
广数供应链运营团队, 15 02月, 2025，浏览：
235 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 280-0954Y | [1] | ROTATING GP-PUMP | |
| 7. | 121-3042 | [1] | SWASHPLATE AS | |
| 8. | 162-1604 | [1] | SHAFT-DRIVE | |
| 9. | 6E-4000 | [1] | SPACER(25.5X35X3-MM THK) | |
| 10. | 3P-1210 | [1] | CONE-BEARING | |
| 11. | 8J-0412 | [1] | CUP-BEARING | |
| 13. | 1P-6872 | [1] | CUP-BEARING | |
| 14. | 6E-4003 | [2] | BEARING | |
| 15. | 6E-4004 | [1] | SEAL-SHAFT | |
| 16. | 3E-6770 | [1] | SEAL-O-RING | |
| 17. | 8U-6013 | [4] | SEAL-O-RING | |
| 18. | 180-6213 | [1] | RING-RETAINING | |
| 19. | 095-9805M | [4] | BOLT-SOCKET HEAD(M14X2X40-MM) | |
| 20. | 9S-8006 | [1] | PLUG(7/8-14-THD) | |
| 21. | 2M-9780 | [1] | SEAL-O-RING | |
| 23. | 9X-8979 | [1] | DOWEL | |
| 24. | 368-6226 | [1] | VALVE GP-COMPRESSION RELEASE(IMPLEMENT, STEERING PUMP) | |
| 25. | 9X-7680 | [3] | SEAL-O-RING | |
| 26. | 8T-8442M | [4] | BOLT-SOCKET HEAD(M6X1X30-MM) | |
| 27. | 9S-8002 | [1] | PLUG(7/16-20-THD) | |
| 28. | 3J-7354 | [1] | SEAL-O-RING | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
