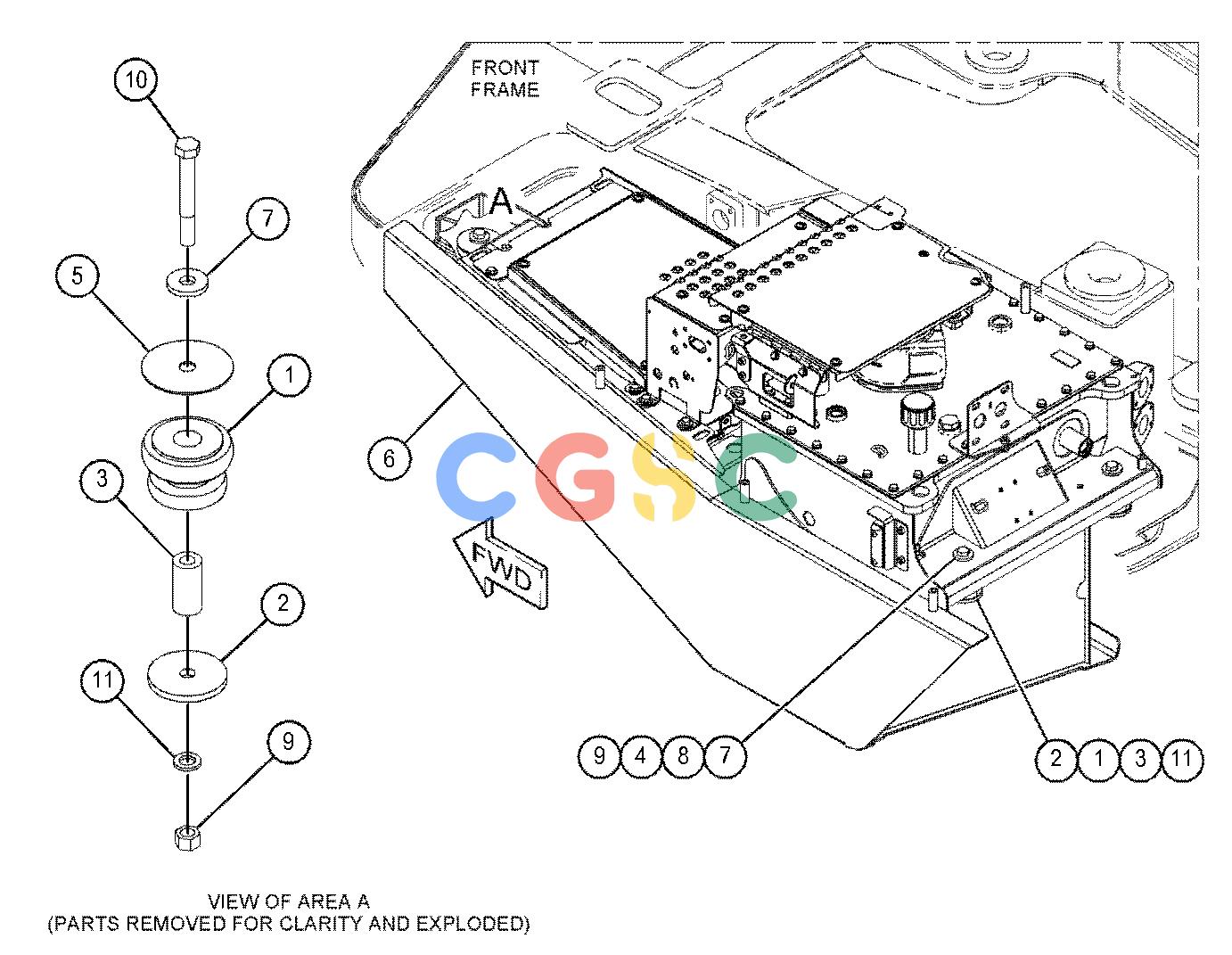

卡特零件查询（725C2） 473-0281: TANK & MTG GP-HYDRAULIC
广数供应链运营团队, 15 02月, 2025，浏览：
292 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9W-9915 | [3] | MOUNT AS | |
| 2. | 9W-9952 | [3] | WASHER(16.75X86X8-MM THK) | |
| 3. | 9W-9953 | [3] | SLEEVE | |
| 4. | 382-4927 | [2] | WASHER-SPECIAL | |
| 5. | 383-1381B | [2] | SHIM(2-MM THK) | |
| 6. | 472-7931Y | [1] | TANK GP-HYDRAULIC | |
| 7. | 7X-0583 | [3] | WASHER-HARD(17X45X6-MM THK) | |
| 8. | 7X-2475M | [2] | BOLT(M16X2X130-MM) | |
| 9. | 8T-4132M | [3] | NUT(M16X2-THD) | |
| 10. | 8T-4174M | [1] | BOLT(M16X2X120-MM) | |
| 11. | 9X-8257 | [3] | WASHER(17.5X30X3.5-MM THK) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
