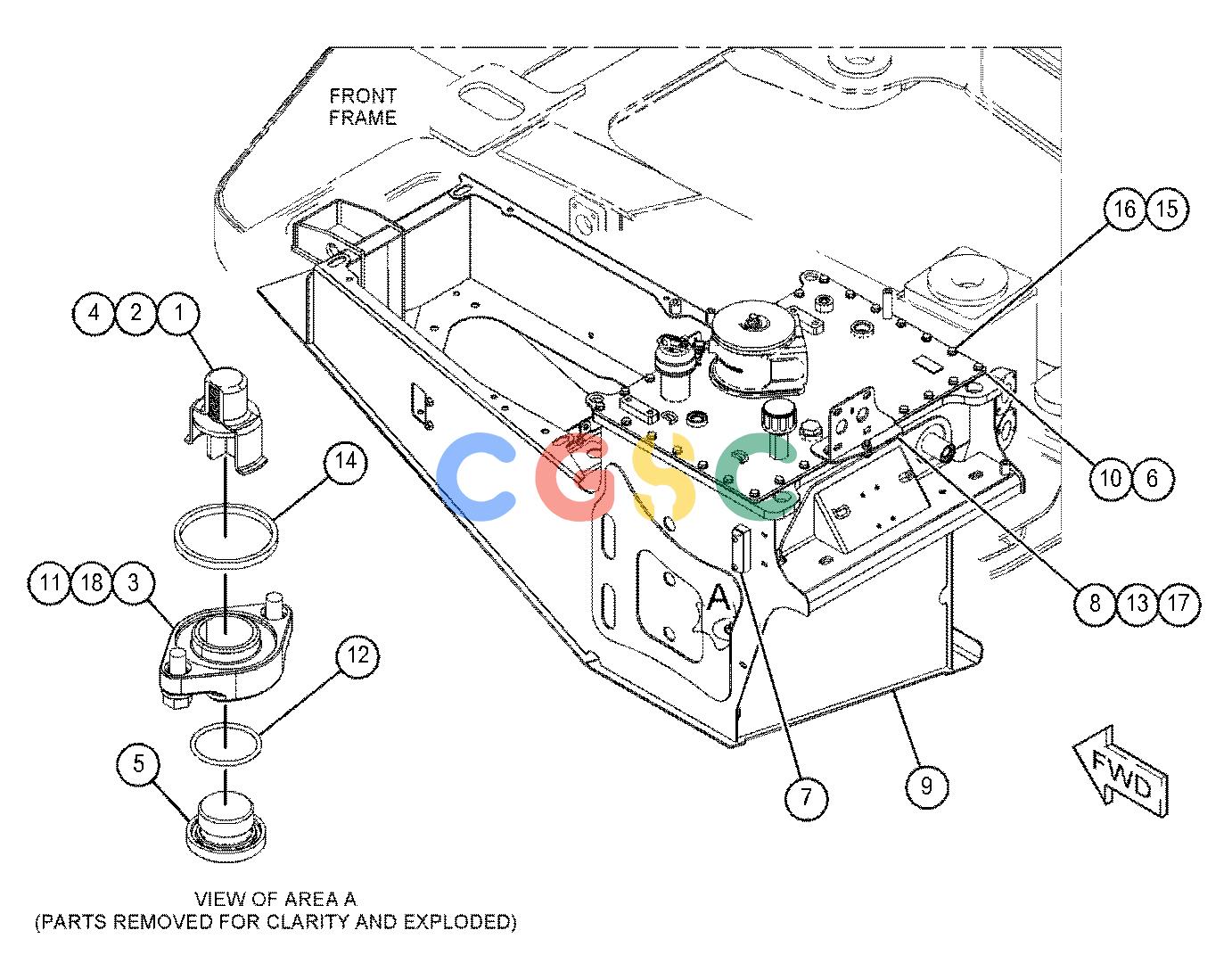

卡特零件查询（725C2） 472-7773: TANK GP-HYDRAULIC
广数供应链运营团队, 15 02月, 2025，浏览：
899 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1U-2827 | [1] | GUIDE-VALVE | |
| 2. | 7Y-4716 | [1] | SPRING | |
| 3. | 8J-8782 | [1] | BODY-DRAIN VALVE | |
| 4. | 8J-8783 | [1] | VALVE-DRAIN(HYDRAULIC TANK) | |
| 5. | 9J-7031 | [1] | PLUG-DRAIN(HYDRAULIC TANK) | |
| 6. | 381-8610 | [1] | GASKET | |
| 7. | 382-6603 | [1] | GAUGE-OIL LEVEL (DIPSTICK)(HYDRAULIC TANK) | |
| 8. | 382-6832 | [1] | BRACKET AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 9. | 449-3322 | [1] | TANK AS-HYDRAULIC | |
| 10. | 472-6339Y | [1] | COVER GP-HYDRAULIC TANK | |
| 11. | 4L-6454 | [2] | BOLT(3/8-16X1-IN) | |
| 12. | 5M-2057 | [1] | SEAL-O-RING | |
| 13. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 14. | 8T-3298 | [1] | SEAL-RECTANGULAR | |
| 15. | 8T-4121 | [27] | WASHER-HARD(11X21X2.5-MM THK) | |
| 16. | 8T-4136M | [27] | BOLT(M10X1.5X25-MM) | |
| 17. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 18. | 8T-4896 | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
