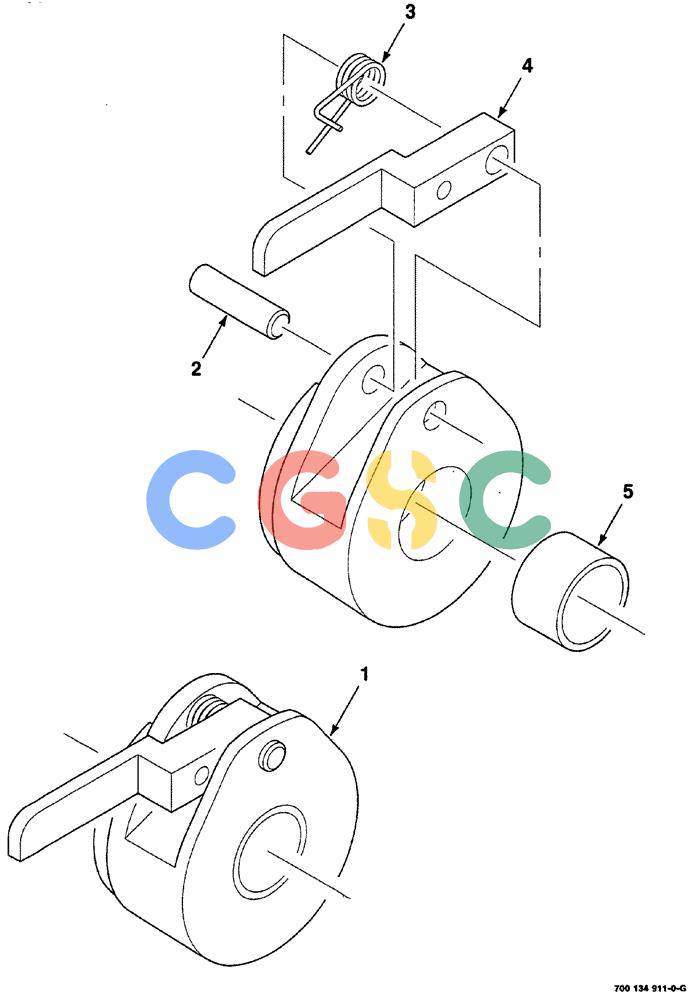

凯斯零件查询(RS561) - CASE IH ROUND BALER (1/99-12/00) (02-014) - HUB ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
419 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700134911
|
[1] |
HUB
|
HFI
ASSEMBLY (Includes: Ref. 2, 3, 4 and 5)
|
| 2. |
37-1828
|
[1] |
DOWEL,1/2" x 1 3/4"
|
CAS
PIN Superseded by part number: 87016627
|
| 3. |
700714835
|
[1] |
SPRING
|
CAS
torsion Superseded by part number: 700726193, 700151537
|
| 4. |
700133288
|
[1] |
LEVER
|
HFI
Superseded by part number: 700151537, 700726193
|
| 5. |
805580
|
[1] |
BRONZE BUSHING
|
IH
BRONZE BUSH
|
