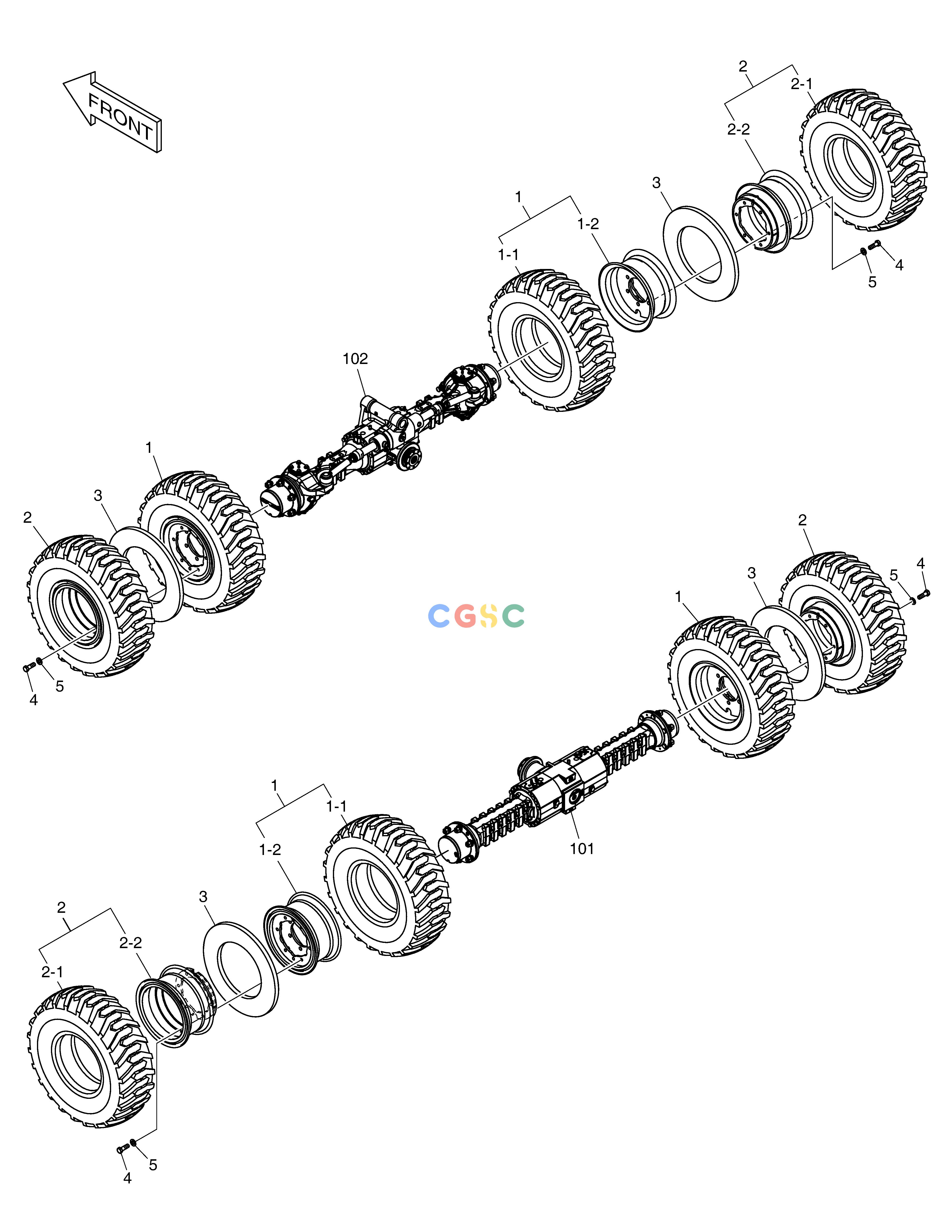

斗山零件查询TIRE - DOUBLE E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
650 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1051102
|
[-] |
TWIN TIRE OPTION
|
|
| 1. |
900138-00222-L
|
[-] |
|
|
| 1. |
900138-00222A-L
|
[-] |
|
|
| 1-1. |
900138-00220
|
[1] |
|
|
| 1-2. |
278-00047B-L
|
[1] |
RIM
|
|
| 1-2. |
101572-00129-L
|
[1] |
|
|
| 101. |
190103-00082A
|
[1] |
|
|
| 101. |
190103-00130B
|
[1] |
|
|
| 102. |
190102-00069A
|
[1] |
|
|
| 102. |
190102-00112B
|
[1] |
|
|
| 2. |
900138-00223-L
|
[-] |
|
|
| 2-1. |
900138-00220
|
[1] |
|
|
| 2-2. |
278-00046C-L
|
[1] |
RIM
|
|
| 3. |
161-00268
|
[4] |
RUBBER;SPACER
|
|
| 4. |
S0521666
|
[24] |
BOLT
|
|
| 5. |
2114-1816A
|
[24] |
WASHER
|
|
